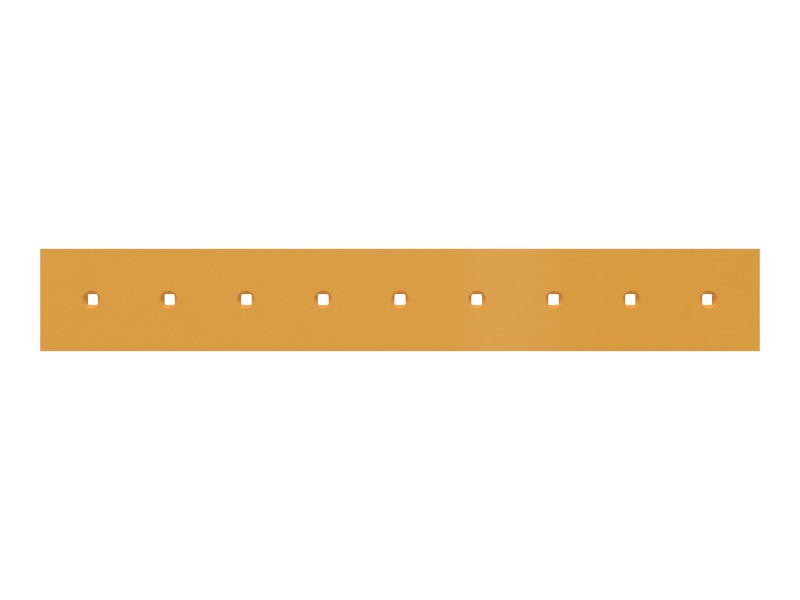

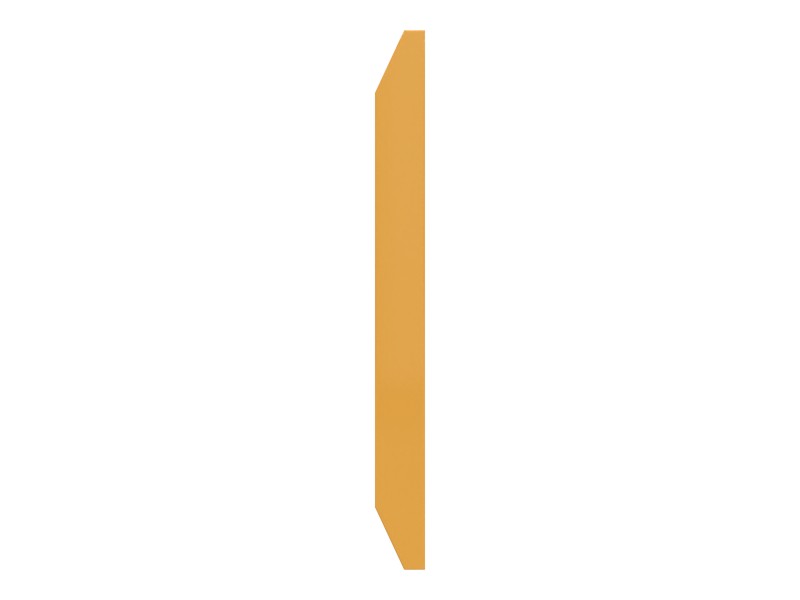

Description
Cat® cutting edges offer unmatched manufacturing precision and protect the machine blade from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistent, superior protection.
Cat grader cutting edges strike an excellent balance between wear resistance and impact resistance. Cat cutting edges and end bits are designed as a balanced system to move more material over a longer period and reduce downtime. As a result, they offer very high strength with excellent resistance to breakage, and minimize bottom wear and face wear of the cutting edge.
Our cutting edges are durable and cast from steel that holds its hardness, providing long wear life so your machine delivers the performance you need. Always choose Genuine Cat Ground Engaging Tools to protect your investment.
Features
- Impact and wear resistance
- ARM extends wear life
- High productivity in any application
Application
- 16' Blade
- ¾" Bolt Holes
- Road Building
Filling Holes
Specifications
| Material | Quenched and Tempered (DH2) |
|---|---|
| Number of Holes | 9 |
| End 2 Shape | Straight |
| Hole Spacing | 152.4 mm (6 in) |
| Overall Length | 1421.6 mm (55.969 in) |
| Cutting Edge Type | Continuous |
| Hole Size | 3/4-in Plow Bolt (21 mm square) |
| End 2 Hole Offset | 101.2 mm (3.984 in) |
| End 1 Hole Offset | 101.2 mm (3.984 in) |
| End 1 Shape | Straight |
| Position | Center |
| Wear or Durability | Standard |
| Thickness | 19.05 mm (0.75 in) |
| Width | 203.2 mm (8 in) |
| Machine Model | Grader |
| Serrated | Non-Serrated |
Compatible Equipment
- Motor Graders: 140 GC, 140K, 12K, 160K, 14, 120
- Excavators: 120 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
