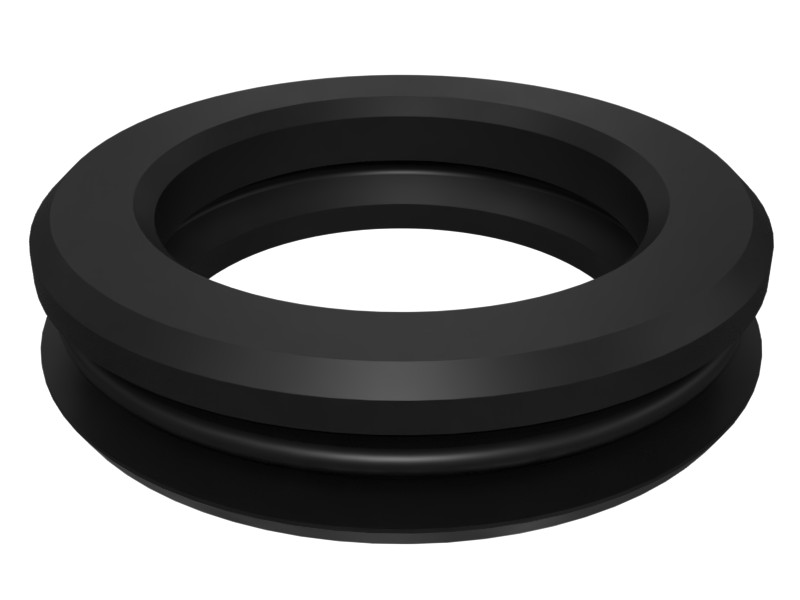

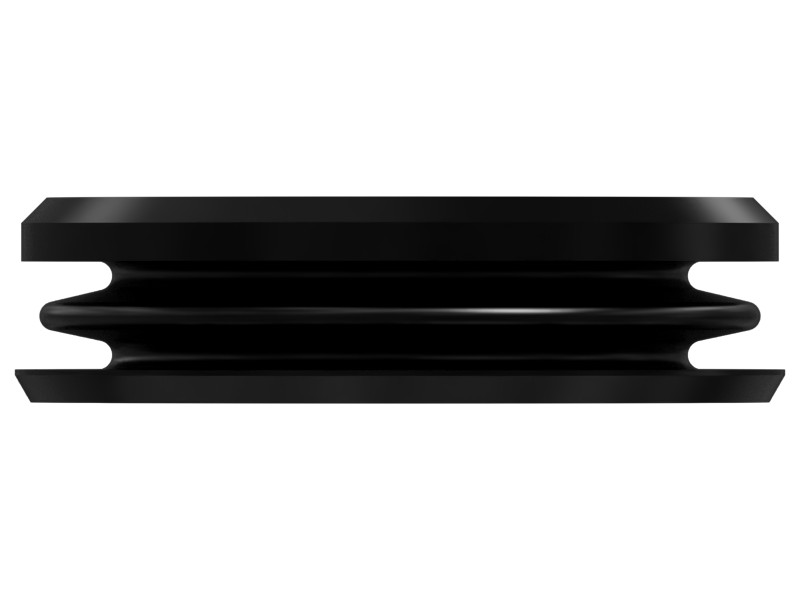

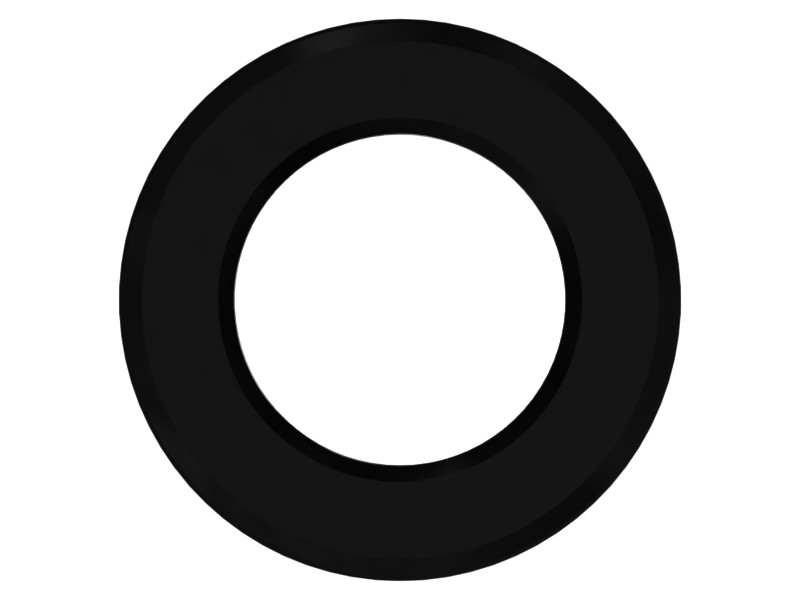

168-6760 Track Seal
Cat® track main seal for grease-lubricated undercarriage track links ensures leak-free operation
Description
The seal retains lubrication and prevents dust and other contaminants from entering the track pin and bushing cavity.
Features
In a sealed track, there is contact between the internal track pins and bushings, which will result in immediate wear due to friction between the two parts. This significantly increases the internal wear life of the link assembly. The grease-lubricated track link assembly can directly replace the sealed link assembly on Cat Hydraulic Excavators.
Specifications
| Material | Polyurethane Plastic |
|---|---|
| Lip Seal Diameter | 0 mm (0 in) |
| Seal Type | W |
| Inside Diameter | 24.95 mm (0.982 in) |
| Outside Diameter | 42.35 mm (1.667 in) |
Compatible Equipment
- Mini Excavators: 308, 307E2, 307B, 307C, 307D, 308E2, 308.5, 307
- Excavators: 308D, 307.5, 308E, 307E
