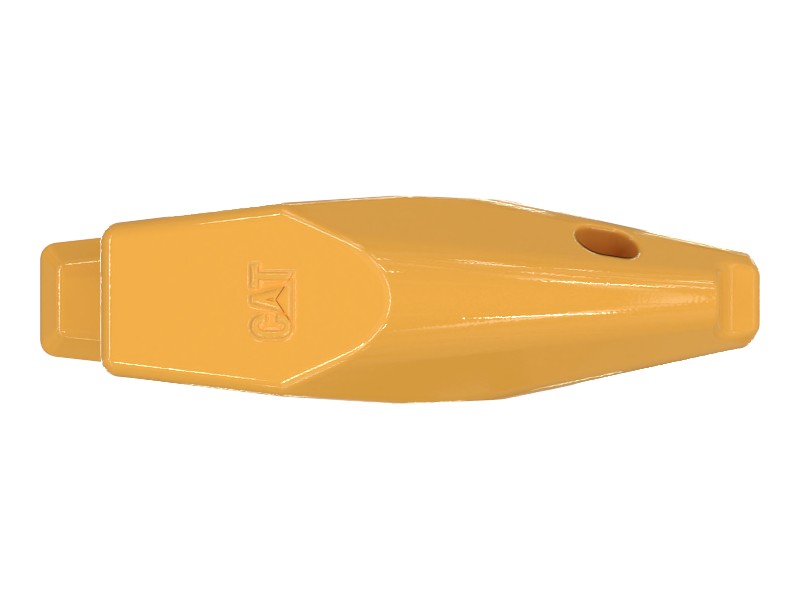

168-1204 Bucket Adapter
D200 Two-Strap Weld-On (Diagonal Pin) Adapter
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® DRS adapters feature unmatched manufacturing precision, protecting the machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistently excellent protection.
Cat® DRS combines the strength and durability of a side-retained system with the serviceability of a vertical system.
Our adapters are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat ground engaging tools to protect your investment.
Features
- D200 weld-on diagonal pin adapter for 20 mm base edge with 22.5 degree bevel
Applications
- Backhoe Loaders
Specifications
| Bevel Angle | 22.5 |
|---|---|
| Base Edge Thickness Grade | 20 |
| Material | Low Alloy Steel |
| Number of Holes | 0 |
| Corner Stop Angle | 0 |
| Attachment Method | Weld-On |
| Bottom Bar Length | 107.4 mm (4.228 in) |
| Width | 0 mm (1.969 in) |
| Hole Spacing | 0 mm |
| Overall Length | 186.7 mm (7.35 in) |
| Type | Two Strap |
| Series | DRS Series |
| Size | DRS200 |
| Position | Center |
| Wear or Durability | Standard |
Additional information
| Part Source | Genuine OEM |
|---|
