Description

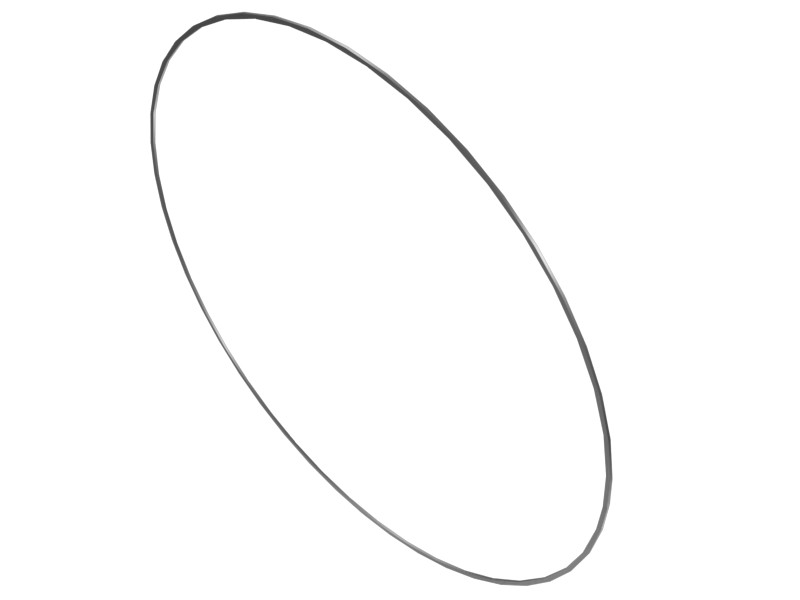

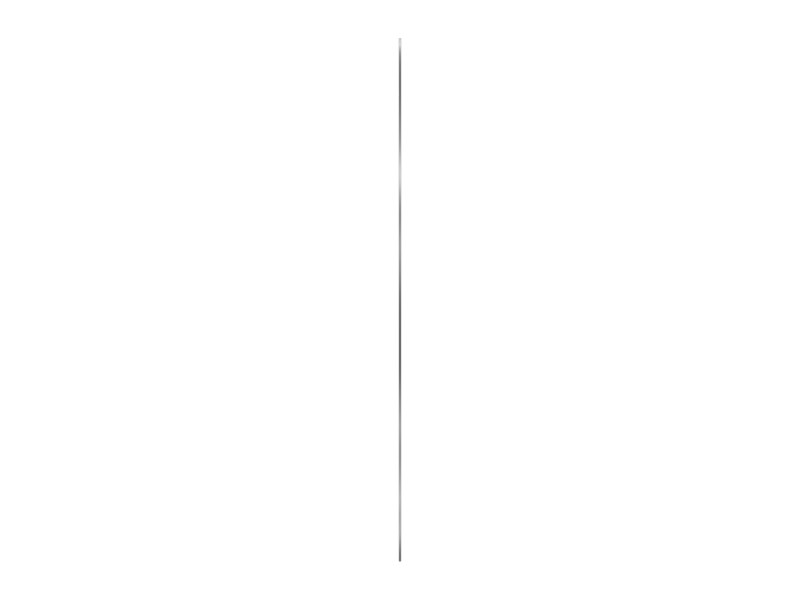

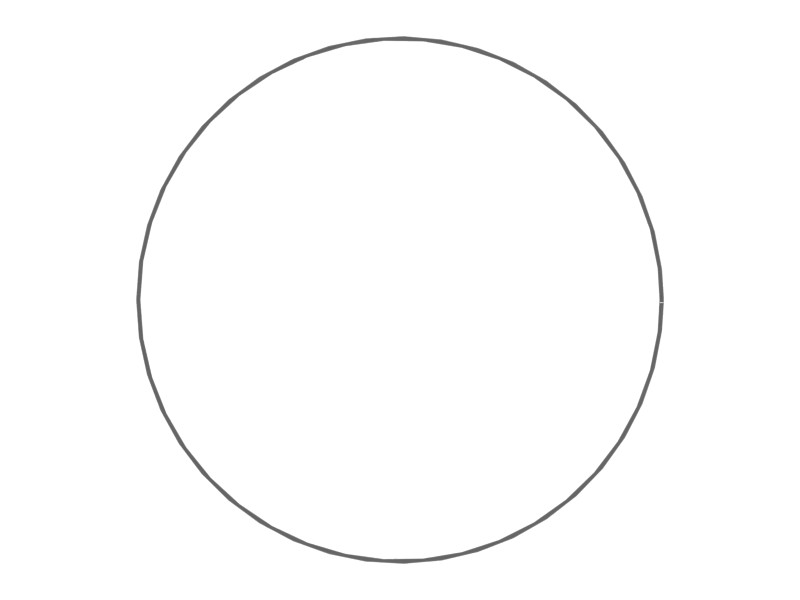

Clamp Ring Description: Backup ring used in pressure reducing valves
Designed to provide additional sealing and support for pressure reducing valves. The clamp ring sits between the valve body and valve seat to prevent fluid from leaking out of the valve group.
Features
- Helps protect the hydraulic unit from dirt, debris or other foreign matter
contamination• Manufactured to precise technical specifications, designed for durability and reliability
built for Applications:
The backup ring used in pressure reducing valves is designed to ensure proper operation and long service life of the valve, because it helps prevent damage or failure caused by fluid leakage. This backup ring is widely used in Cat mobile hydraulic power units, excavators, Hex-based specialty solutions, front shovels, track-type feller bunchers, articulated boom loaders, bucket recorders, recorders, log loader first machines, material handlers and wheeled excavators.
Specifications
| Inside Diameter | 22.73 mm (0.894 in) |
|---|---|
| Cross-Section Width | 2.2 mm (0.086 in) |
| Cross-Section Height | 1.2 mm (0.047 in) |
| Thickness | 1.2 mm (0.05 in) |
| Weight | 0.004 kg (0.004 lb) |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Motor Graders: 316F
- Excavators: 349F L, 330D L, 323, 345C L, 390F, 365C, 352F, 345C, 385C L, 385C, 349E, 385B, 345D L, 390D, 345D, 340D2 L, 349E L, 349D L, 345B, 365C L, 385C FS, 336D2 L, 318D L, 318D2 L, 315D L, 330C, 320C, 323D L, 329D L, 325B, 328D LCR, 320D2 L, 320D L, 324D, 320E, 336D L, 336F L, 320 GC, 325D L, 330C L, 336F, 325C L, 325C, 320D3, 329E L, 336E LN, 325D, 349E L VG, 340D L, 320D FM, 323D2 L, 330B, 329E, 320D2 GC, 320D GC, 324D L, 336D2 GC, 320D RR, 330D, 325B L, 330D2, 330D2 L, 323D, 320C L, 320B, 320, 336F LN, 335F LCR, 336E, 326D L, 318D2, M325D L MH, 320D3 GC, 336E L, 323D2, 320D2, 349D2, 390F L, 390D L, 349D, 349D2 L, 336D2, 320D, 326D2 L, 329D2 L, 329D, 329D2, 326D2, 336D
Additional information
| Machine Model | 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F LN, 340D L, 340D2 L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 365C, 365C L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, C7.1, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
