Description

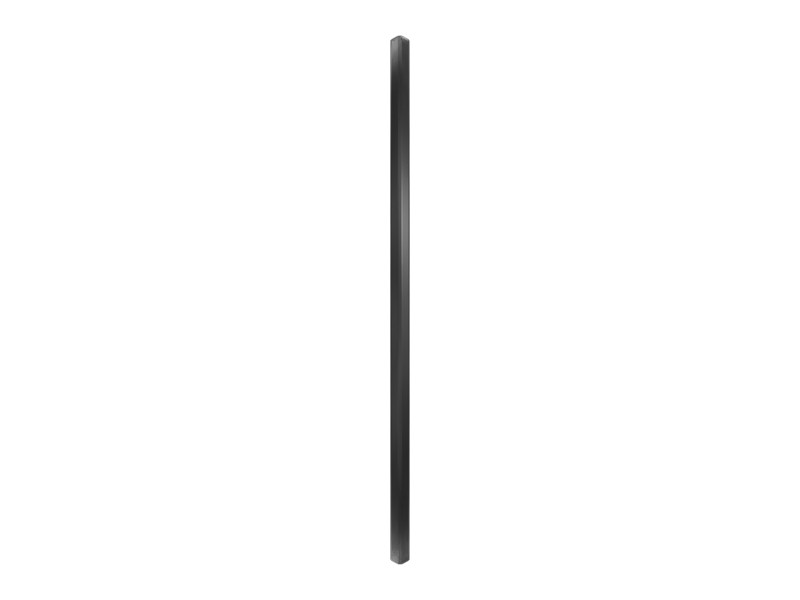

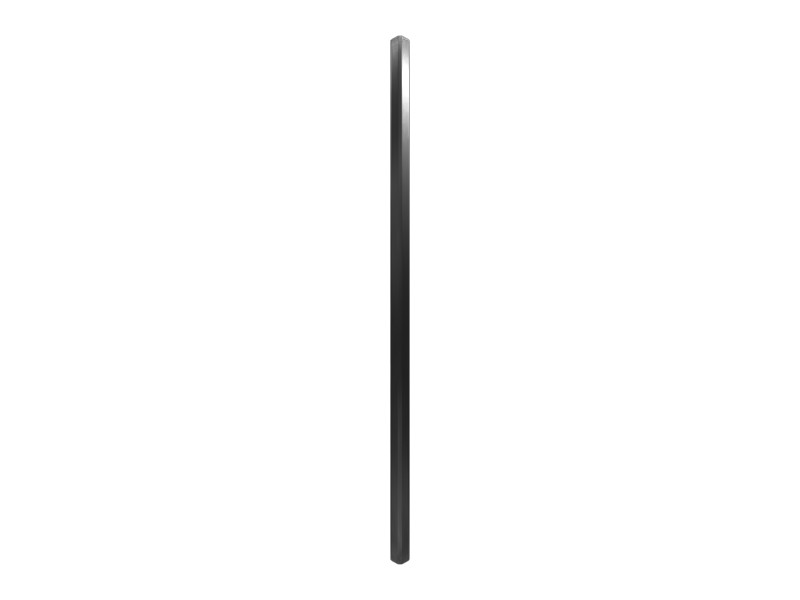

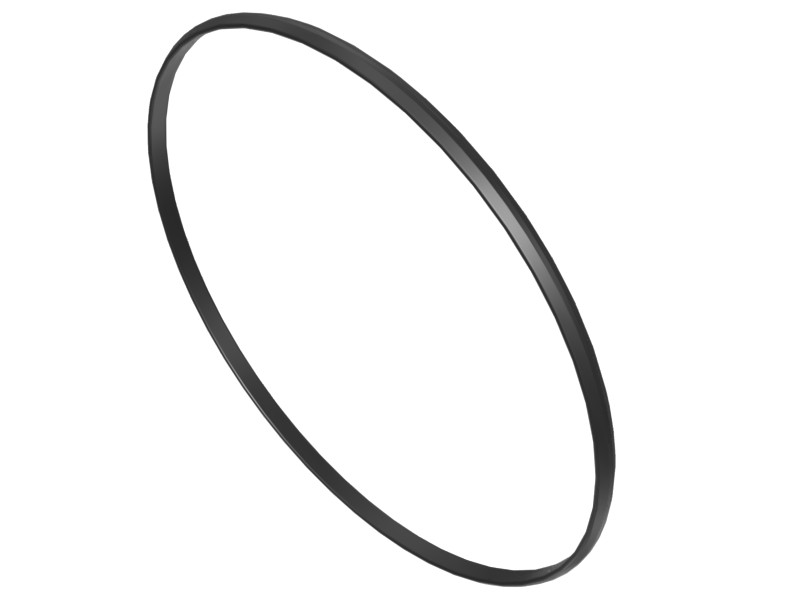

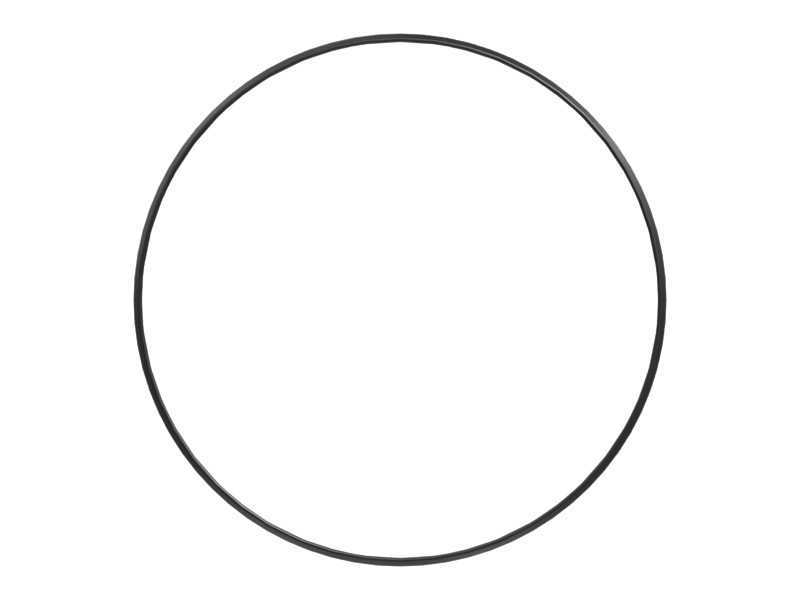

The liner plate seal is a ring-shaped seal with a variable cross-section geometry used to prevent leakage and contamination.
Features
Cat® liner seals are made from elastomeric materials matched to the fluids and temperatures in Cat engines.
Our seals and rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
Cat® sealing systems go through a robust design, testing and validation process. Protect your investment with the latest Genuine Cat® seals.
Applications
The cylinder plate seal is used in Cat® engines.
Specifications
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
|---|---|
| Outside Diameter | 124 mm |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K, 972
- Cold Planers: PL72
- Motor Graders: 14, 12H, 349 GC
- Compactors: C9.3B, C-9
- Dozers: D7, D6T, D7R, D7E, D6R II, D6R III, D6T LGP, D7G, D7H, D6R, D6R XL, D6R LGP, D6G2 XL
- Excavators: 330D L, 336, 345 GC, 350, 340, 336F L XE, 336E, 336F, 336D2 L, 336F L, 330C, 336D L, 336E L, 330D, 336F LN, 336E H, 336D2 XE, 330B, 330C L, 336E LH, 330 L, 336D2 GC, 336E LN, 637K, 637G, 637E, 340D2 L, 340D L, 3516B, 350MHPU, 336D2, 336D
- Wheel Loaders: 966, 972L, 966K, 966L, 966F, RM400
- Off-Highway Trucks: 725C2, 725
Additional information
| Machine Model | 12H, 14, 330 L, 330B, 330C, 330C L, 330D, 330D L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 349 GC, 350, 350MHPU, 3516B, 637E, 637G, 637K, 725, 725C2, 966, 966F, 966K, 966L, 972, 972L, 973K, C-9, C9, C9.3B, D6G2 XL, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7H, D7R, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
