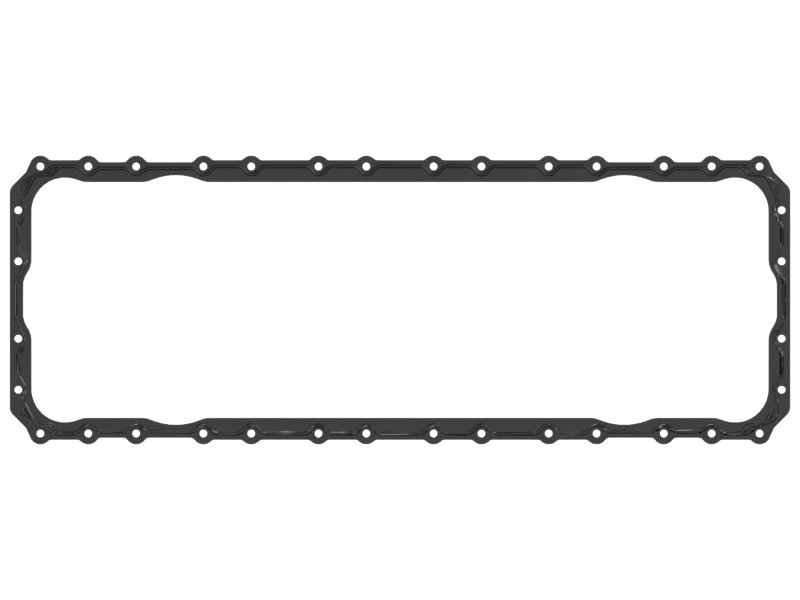

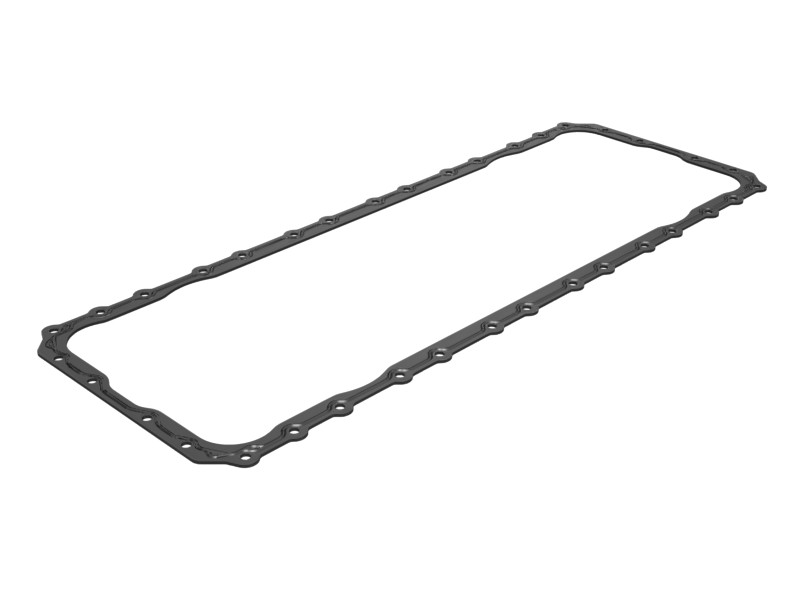

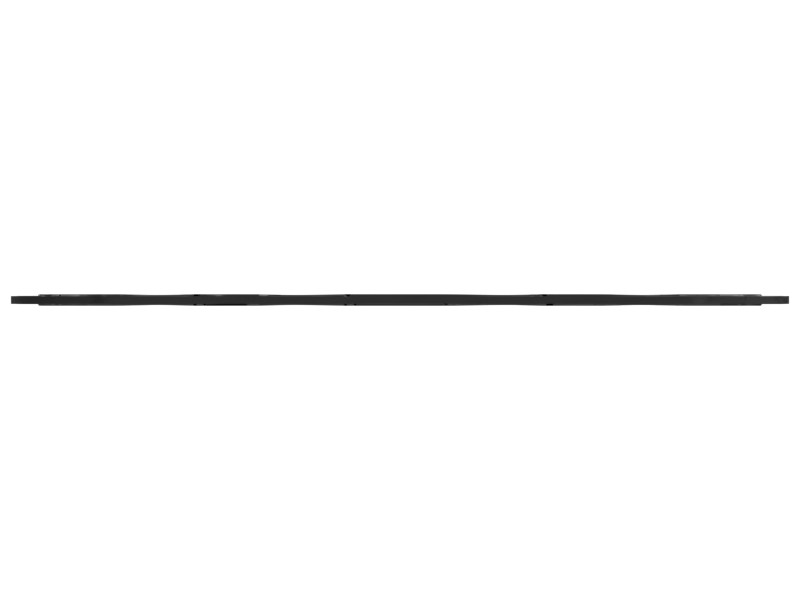

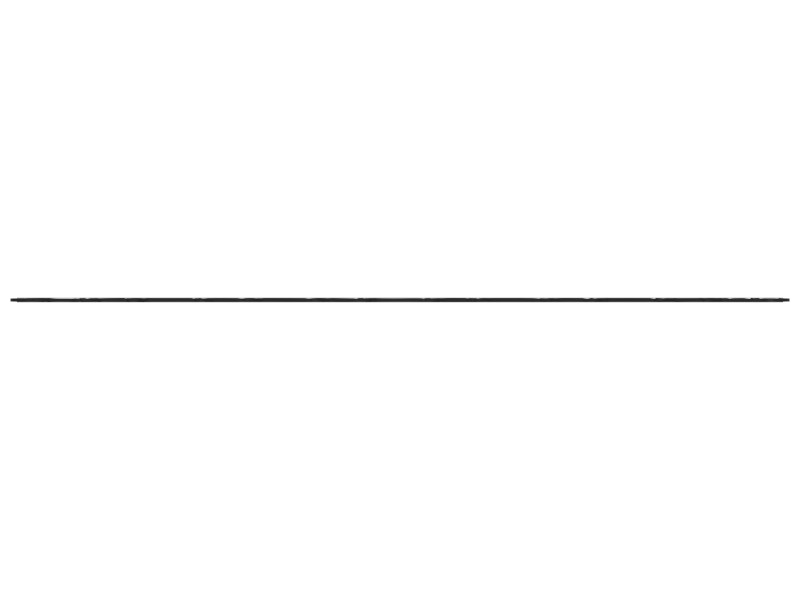

166-2905 3.16 mm Thick Integral Edge-Bonded Seal
Cat® rectangular rubber plastic edge-bonded sealing gasket for engine oil pans
Description
Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Overall Width | 313 mm |
| Overall Length | 847 mm |
| Material Thickness | 3.16 mm (0.124 in) |
| Primary Seal Material | Nitrile Rubber (NBR) |
| Seal Shape | Rectangular |
| Material Description | Nitrile rubber (NBR) has a service temperature range of -40 to 100C and is resistant to fuel, gasoline, ultra-low sulfur diesel and lubricants. Nitrile rubber is not recommended for applications requiring biodiesel or coolant resistance. |
Compatible Equipment
- Generator Sets: C9
- Motor Graders: 140K, 12K, 120H, 160K
- Compactors: CS-583D
- Engines: C7
- Dozers: D6N, D5N
- Excavators: M325D L MH, 325D, 329D L, 324D L, 325C, 325D L, 328D LCR, 325C L, 324D, 326D L, 3126, 329D
- Wheel Loaders: 950H, 966F
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12K, 140K, 160K, 3126, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 950H, 966F, C7, C9, CS-583D, D5N, D6N, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
