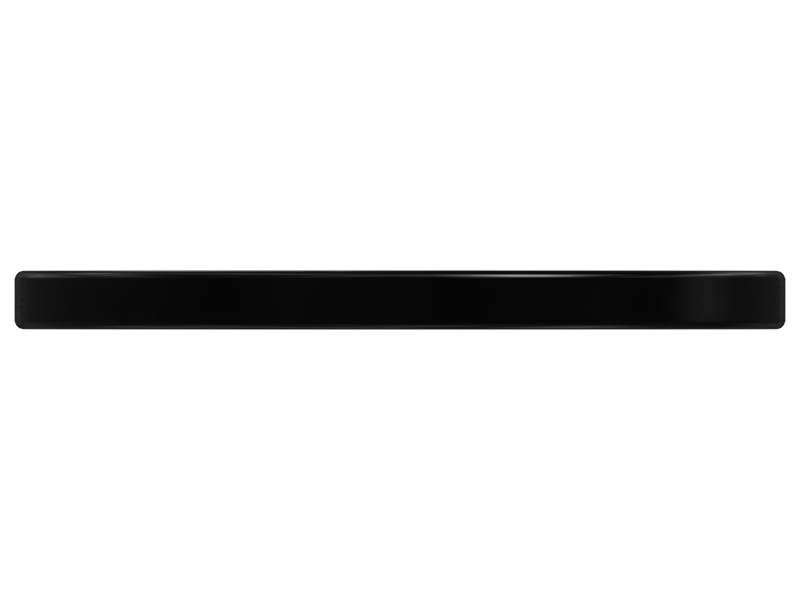

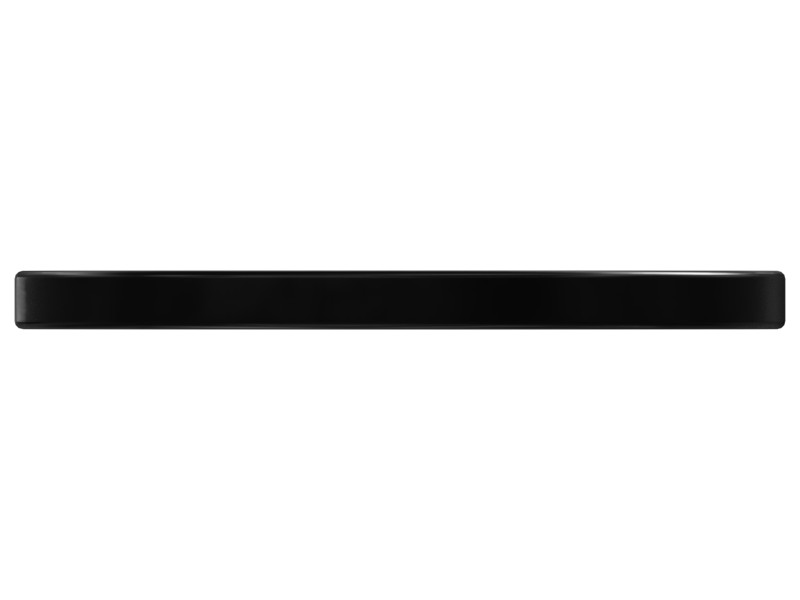

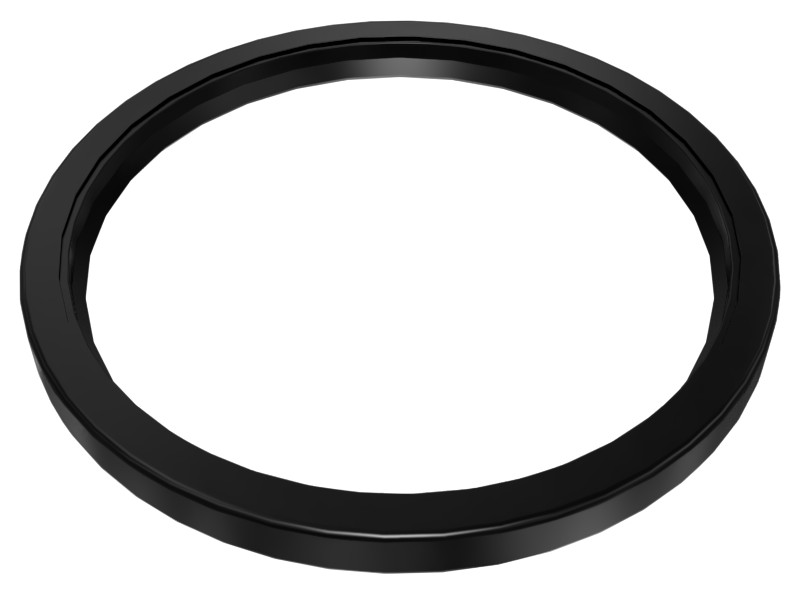

166-1495 89.85 mm ID Pin Seal

Description

Pin seals are used in lubricated oscillating applications, such as rod pin joints. This seal is designed to retain the lubricating compound while preventing external contaminants from entering the joint by slowly purging grease during operation. Keeping contaminants out extends joint life.

Features

Steel-faced rubber lip seal
Type: NB
Shaft Diameter: 89.85 mm (3.54 in)
Bore Diameter: 106 mm (4.17 in)
Height: 8 mm (0.31 in)

Applications

Pin seals are commonly used in link pin joints. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Material	Carbon Steel

Compatible Equipment

Motor Graders: 316F, 349 GC
Generator Sets: 3512B, C4.4
Track Loaders: 990K, 992
Wheel Excavators: M322D, M315
Excavators: 374, 313, 330D L, 313 GC, 349F L, 320, 320D FM, 350, 320 GC, 340, 326 GC, 323 GC, 336, 320D L, 328D LCR, 323D L, 325, 330 GC, 345 GC, 352, 320D3 GC, 335, M325D L MH, 323 GX, 320 GX, 320C, 333, 311D LRR, 323, 320D2 GC, 318D2 L, 320D RR, 335F LCR, 336E L, 320D GC, 330C L, 336F, 315D L, 330D2, 320B, 336F L XE, 325D L, 329D L, 320D2 L, 336D L, 315C, 323D2 L, 325C, 336F LN, 330GC, 336D2 L, 336F L, 330D, 326, 336D2 XE, 324D L, 336E LN, 325D, 330C, 320D3, 320E, 355, 385B, 390F, 323D, 385C, 336E H, 325C L, 318D L, 323GC, 336 GC, 336E, 352F, 340D2 L, 349, 345C L, 374F L, 385C L, 340D L, 345D L, 329E L, 330D2 L, 336D2 GC, 329E, 336E LH, 315, 324D, 326GC, 318D2, 320C L, 326D L, 315 GC, 349E L, 349E L VG, 349D L, 390D, 395, 323D2, 333 GC, 330, 329D, 320D, 390F L, 320D2, 390D L, 326D2 L, 336D, 329D2 L, 326D2, 336D2, 374F, 374D L, 329D2
Wheel Loaders: 992K

Machine Model	311D LRR, 313, 313 GC, 315, 315 GC, 315C, 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345C L, 345D L, 349, 349 GC, 349D L, 349E L, 349E L VG, 349F L, 350, 3512B, 352, 352F, 355, 374, 374D L, 374F, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F, 390F L, 395, 990K, 992, 992K, C4.4, M315, M322D, M325D L MH
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Motor Graders, Generator Sets
Part Source	Genuine OEM

Machine Model

311D LRR, 313, 313 GC, 315, 315 GC, 315C, 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345C L, 345D L, 349, 349 GC, 349D L, 349E L, 349E L VG, 349F L, 350, 3512B, 352, 352F, 355, 374, 374D L, 374F, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F, 390F L, 395, 990K, 992, 992K, C4.4, M315, M322D, M325D L MH

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Motor Graders, Generator Sets

Part Source

Genuine OEM
