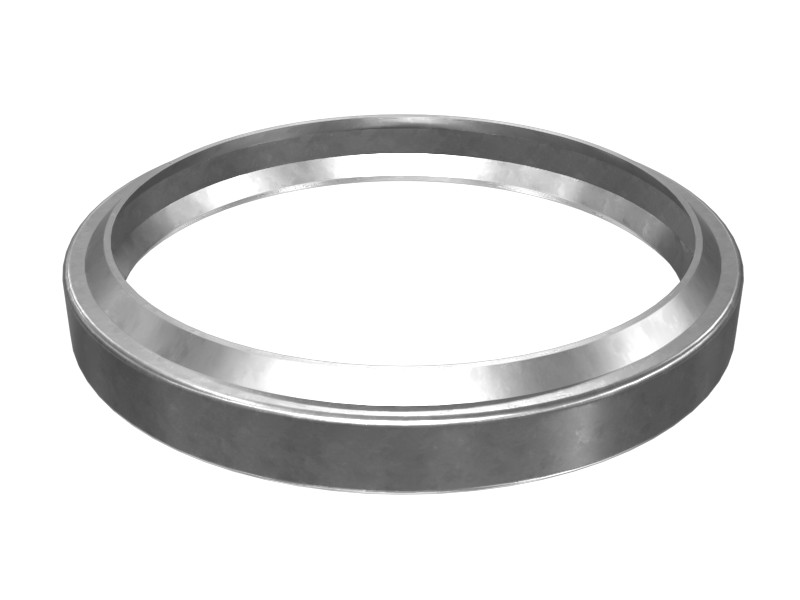

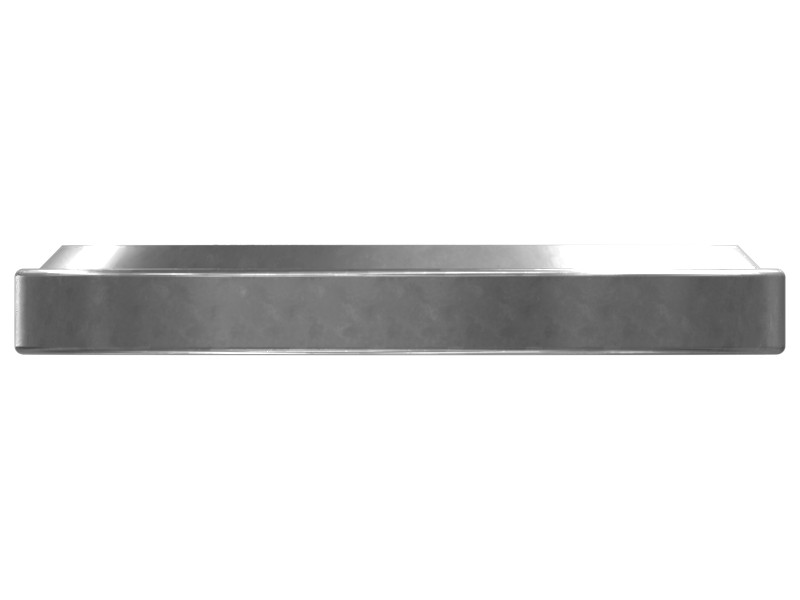

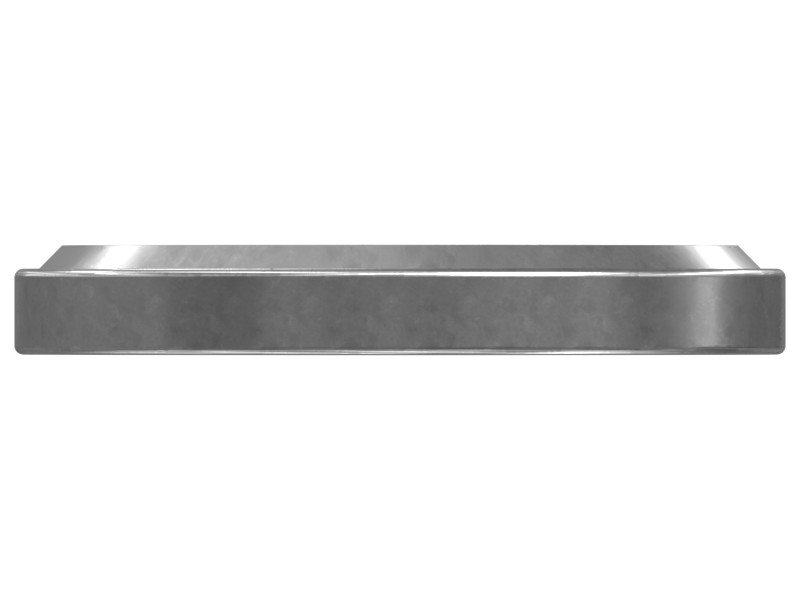

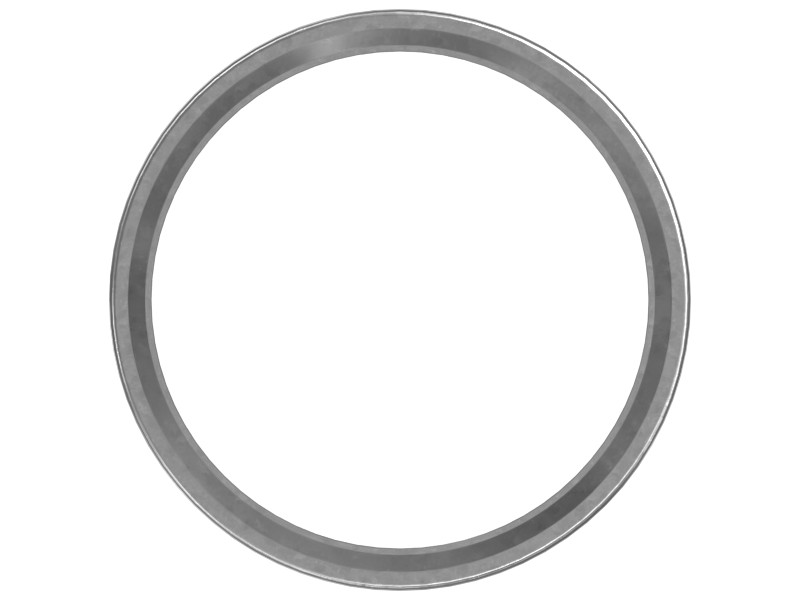

165-9286 82.70 mm ID Lip Seal
Cat® lip seals prevent fluid leakage and maintain an effective seal between the cylinder rod and barrel.
Description
Prevents external contaminants from entering the system. A single-lip wiper (the lip refers to the protruding portion or edge of the seal) cleans the rod as it retracts. A double-lip wiper cleans the rod as it retracts and seals oil to eliminate oil leakage (external leakage). The double-lip wiper is retained with a bearing retainer. These polyurethane wipers are wrapped in metal on the outside for added strength. They are often referred to as encased wipers (metal-encased) or J-style wipers (the metal is typically J-shaped in cross-section).
Specifications
| Material | Urethane Rubber |
|---|---|
| Inside Diameter | 82.70 mm (3.26 in) |
| Seal Shape | Type B – Double-Lip Wiper |
| Width – A (+/- 0.02 in) | 3.91 in |
| Outside Diameter – B | 11.00 mm (0.43 in) |
| Width – A (+/- 0.508 mm) | 99.23 mm |
Compatible Equipment
- Wheel Excavators: M322D, M320, M320D2
- Excavators: 330D L, 320C, 325B L, 311D LRR, 315D L, 329D L, 315F LCR, 320D FM, 320D L, 323D L, 325D, 336D L, 315C, 325D L, 324D L, 325C, 330C, 314D LCR, 320E, 320B, 312E, 312E L, 313F L, 318D L, 318D2 L, 637K, 345C L, 345B, M325D L MH, 320D
- Wheel Loaders: 962L, 950L, 950
Additional information
| Machine Model | 311D LRR, 312E, 312E L, 313F L, 314D LCR, 315C, 315D L, 315F LCR, 318D L, 318D2 L, 320B, 320C, 320D, 320D FM, 320D L, 320E, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 329D L, 330C, 330D L, 336D L, 345B, 345C L, 637K, 950, 950L, 962L, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
