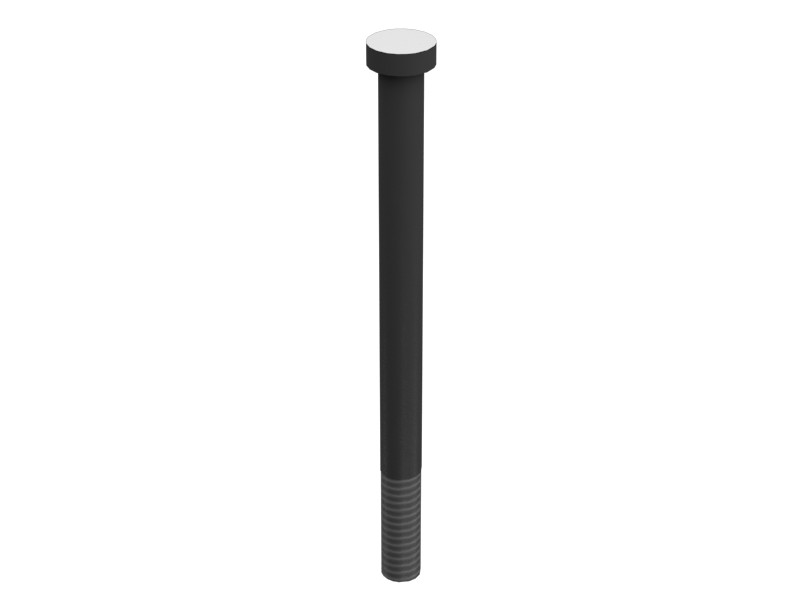

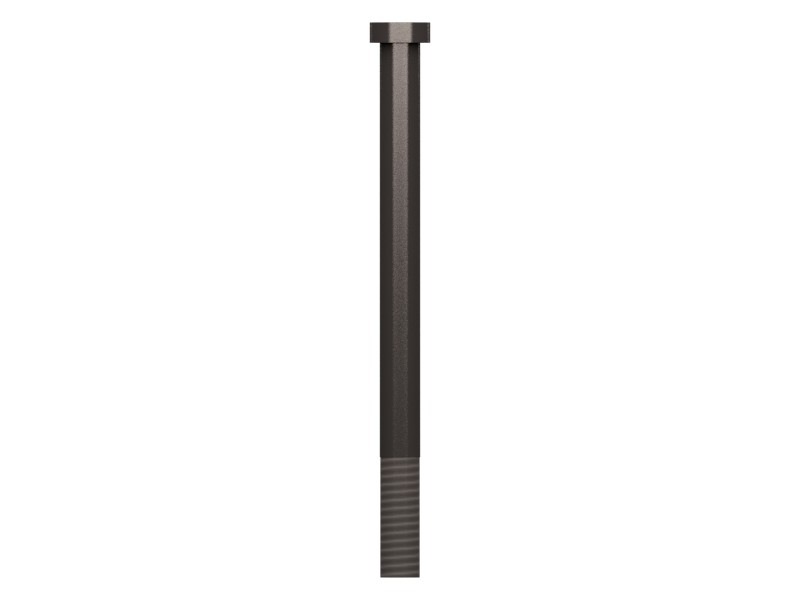

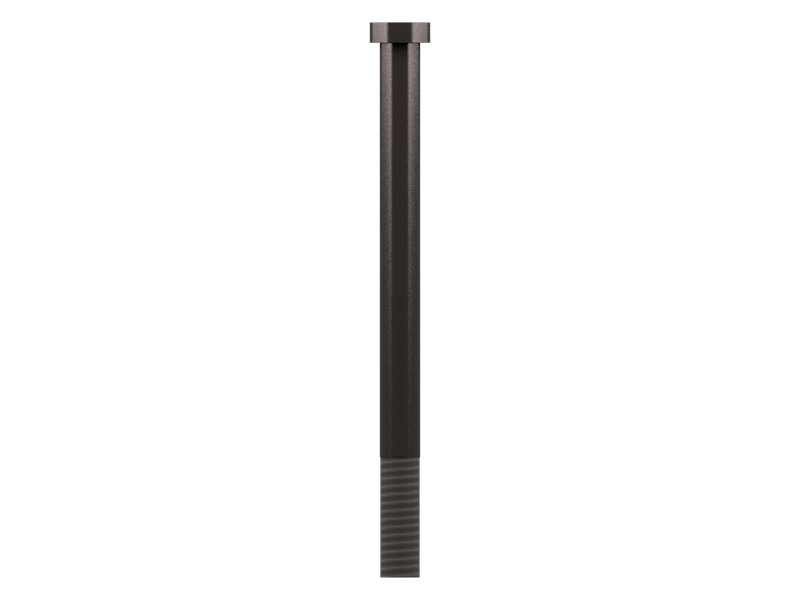

165-5085 M12X1.75 Thread Socket Head Bolt
Cat® M12x1.75 Thread 160 mm Long Socket Head Bolt for Hydraulic Systems
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | None |
| Thread Size (Diameter × Pitch) | M12x1.75 mm |
| Bolt Length | 160 mm (6.299 in) |
| Locking Feature | None |
| Bolt Type | Socket Head |
| Thread Size | M12 mm (0 in) |
| Handle Length | 124 mm (4.882 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Track Loaders: 990K, 834H
- Excavators: 330D L, 349F L, 355, 352, 336F, 330C, 330C L, 345C, 349E L, 345D L, 349D L, 349E L VG, 345C L, 352F, 349, 336, 350, 349E, 345D, 349D, 349D2 L, 349D2
- Wheel Loaders: 988K, 988H, 988G
