Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | 0.375 mm (0.015 in) |
| Bolt Length | 38.1 mm (1 1/2 in) |

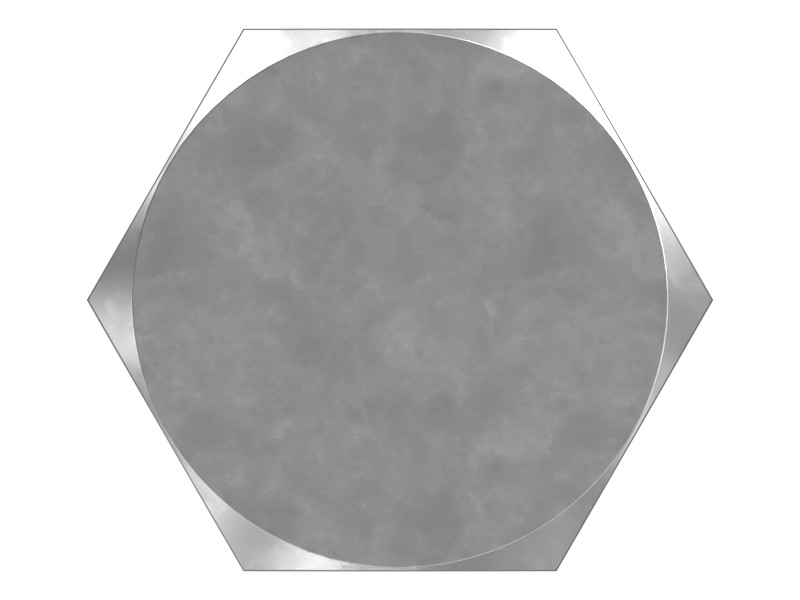

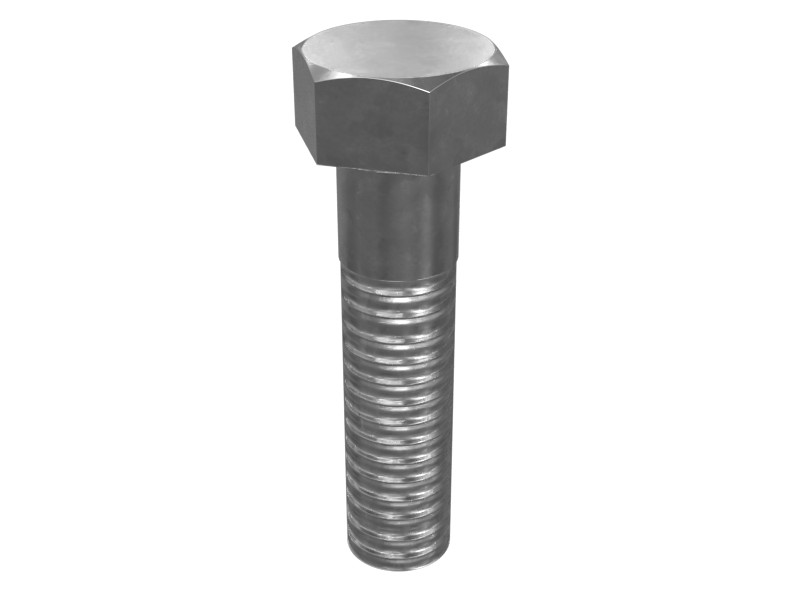

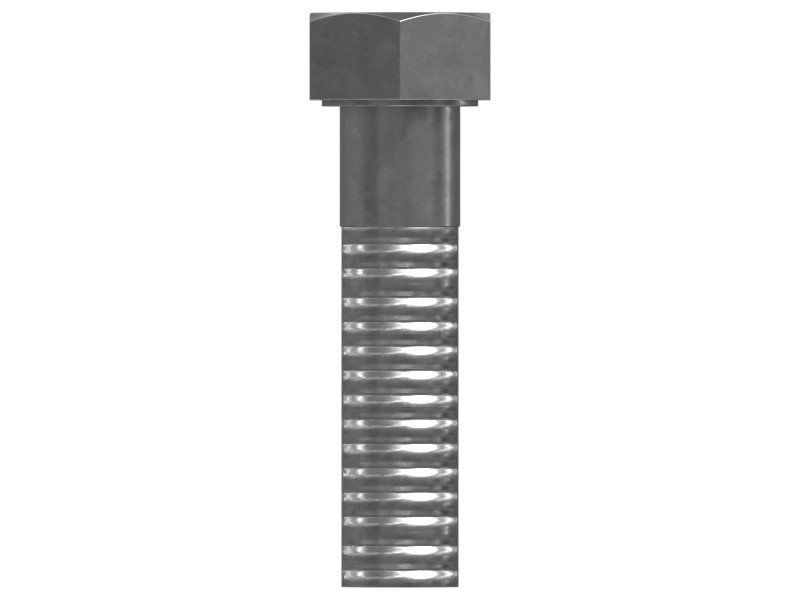

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 9.525 mm (0.38 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512E, 3512B, 3516C, 3406C, C9, G3516, G3516C, C4.4, 3406B, C7.1, DG30
- Track Loaders: 826H, 826G, 995, 993, 992, 994K, 990K, 826K, 834H, 824G, 824C
- Cold Planers: PM620, PL87, PL83, PM622, PL72, PM-200
- Compactors: 824K, 834K, 825K, C13B, C9.3B, C-15, C-9
- Engines: C15, C32, C13, C27, C7, C11, C18, C175-16
- Excavators: 3456, 390F L, 374D L, 390D L, 3126, 374F, 374, 637E, 657G, 637K, 637G, 3508B, 3512C, 3516B, 6015B, 3516E, 6060, 621G, 385B, 365C L, 385C, 365C, 385C L, 390D, 390F, 385C FS, 6020B, 6015 FS, 6018, 395, 6030, 6040, 6015, 3101, 374F L
- Asphalt Pavers: AD63, AD30, AD45
- Skid Steer Loaders: 3126B, 24, 226D3, 232D3
- Motor Graders: 3606, 140G, 12H, 140H
- Wheel Excavators: MD6310, MD6200, MD6250, IT14G
- Dozers: D11T, D9R, D8T, D6R III, D9, D10N, D8L, D7R, D10T2, D11R, D11, D6T LGP, D9L, D10, D8, D10R, D6R XL, D9N, D6R, D6T, D6R II, D8R, D8N, D7R II, D9T, D11N, D10T, D6R LGP
- Wheel Loaders: 980H, 988K, 980G, 938M, 990H, RM500B, RM400, 924K, 938K, R2900 XE, 988H, R2900G, R3000H, 992C, 926M, 986H, 988G, 836, R1700G, 834
- Off-Highway Trucks: 772G, 793F, 777, 785D, 770G, 773F, 777D, 785, 771D, 745C, 745, 798 AC, 794 AC, 796 AC, 793D, 789, 789D, 740B, 740 GC, 740, 777E, 773, 7495, 773D, 773E, 735, 793, 775G
