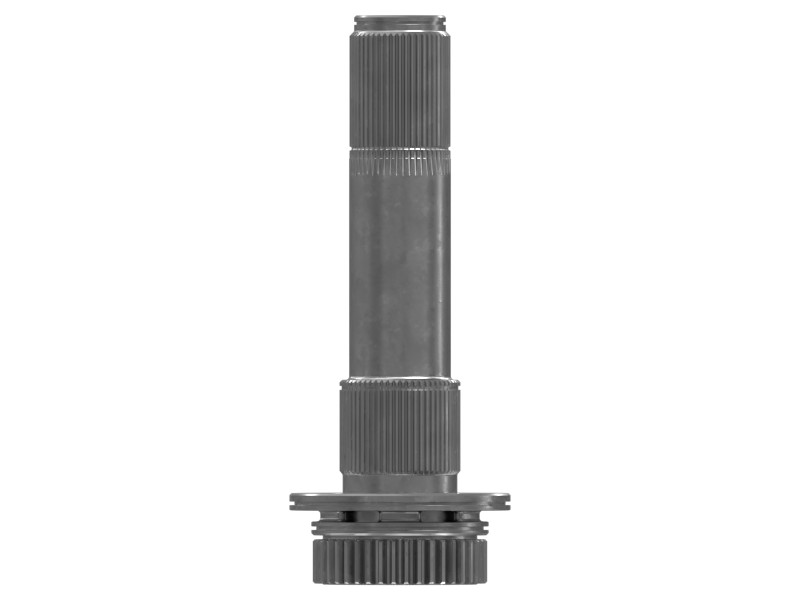

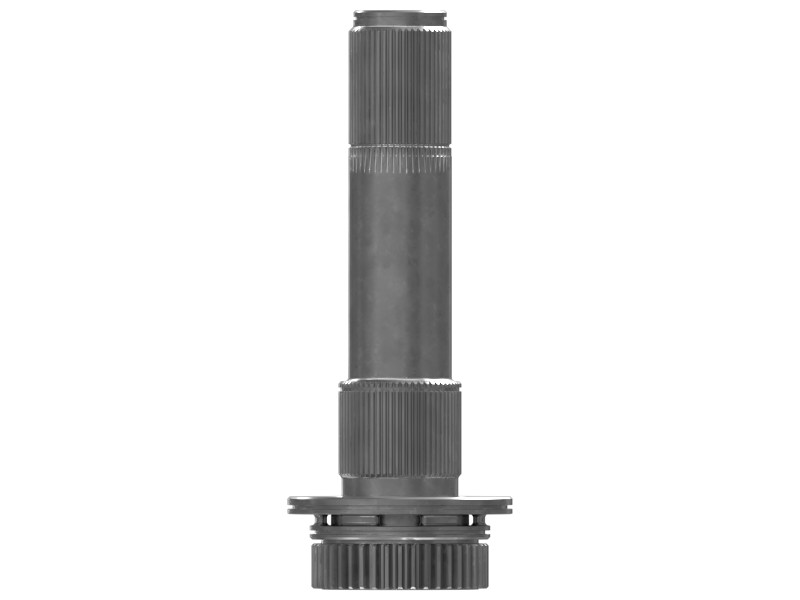

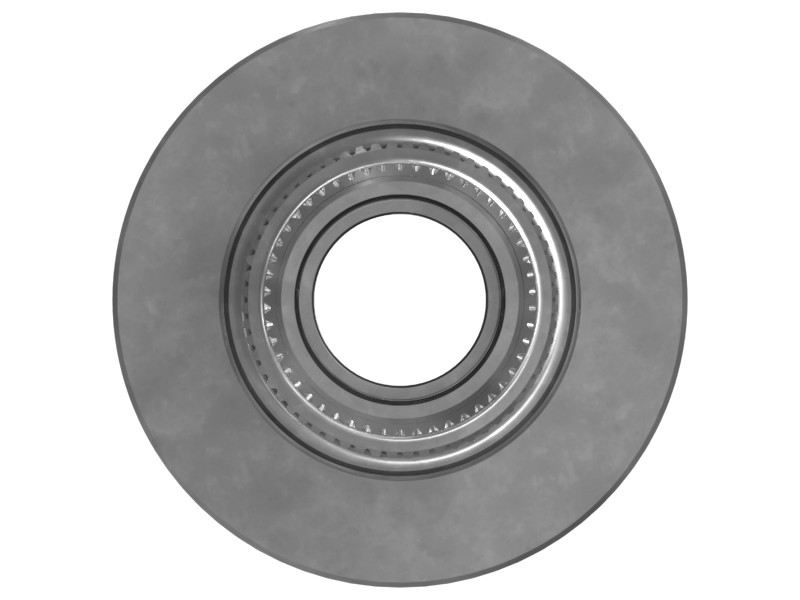

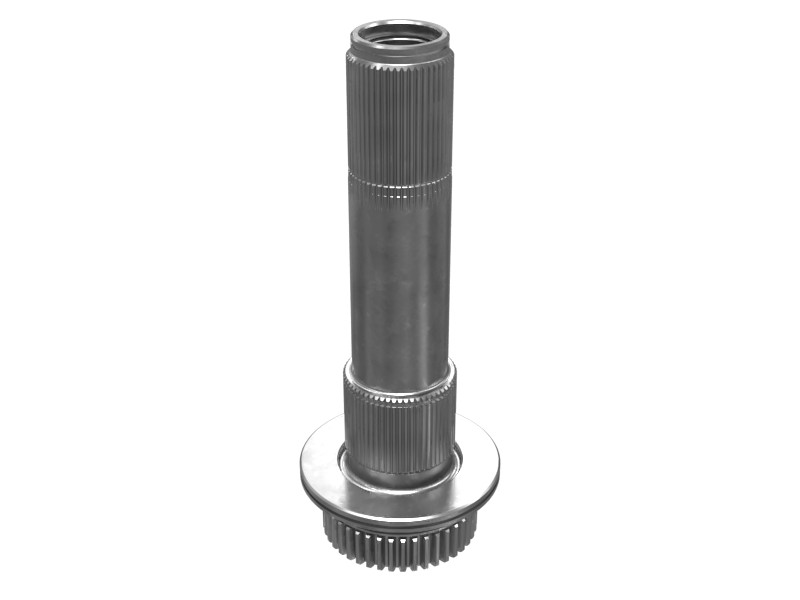

164-5079 Transmission Planetary Output Shaft
Cat® planetary gear output shaft makes it easier to change gear ratios and torque distribution
Description
The Cat output shaft group is a key component of the planetary gear group, which powers the Cat solid transmission to convert engine power into the precise combination of speed and power required by each machine.
Features
- With ring base and roller bearing
Hardened steel shaft • Outer Sprocket Teeth: 42
- End 1 – Outer Tab Teeth: 60
- End 2 – Outer Slot Teeth: 50
- Bearing Inside Diameter: 50800 mm (2000 in)
Applications
Cat output shaft groups are used in the planetary gear groups of Cat transmissions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 176.25 mm (6.939 in) |
|---|---|
| Inside Diameter | 50.8 mm (2 in) |
| Length | 453.87 mm (17.868 in) |
Compatible Equipment
- Track Loaders: 834H
- Compactors: 834K, C9.3B
- Excavators: 3508B
- Wheel Loaders: 986K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
