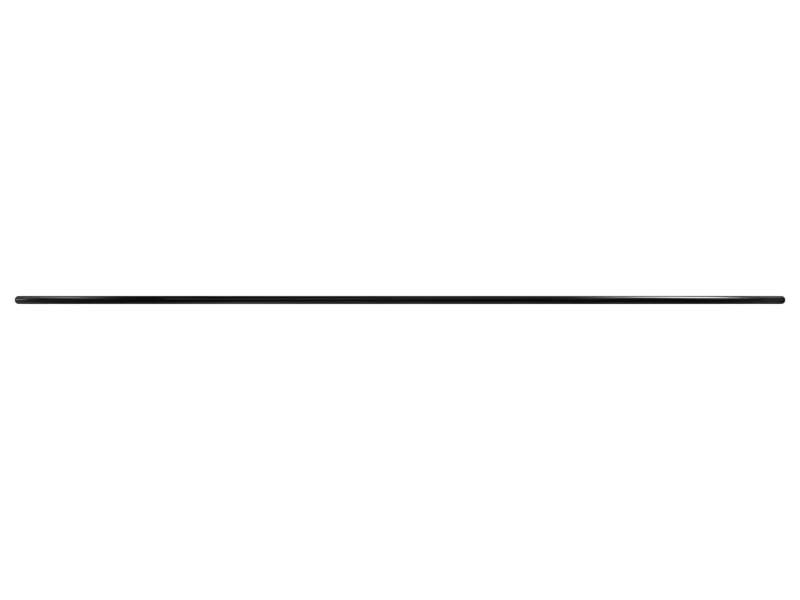

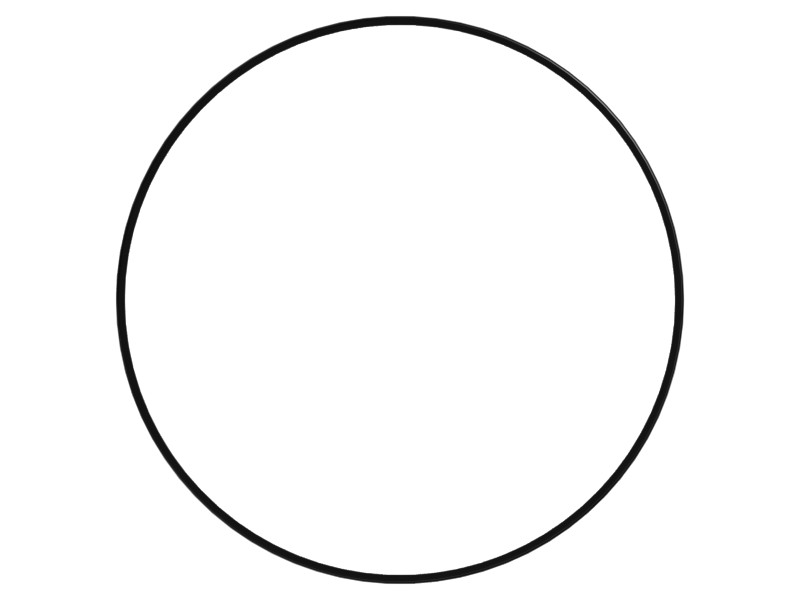

161-9834 338.3 mm OD D-Ring Seal
Cat® parking and service brake D-ring provides a secure seal and prevents brake system fluid leakage.
Description
O-rings are used for static sealing and some dynamic applications.
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Specifications
| Coating | None |
|---|---|
| Color Note | Actual O-ring color may differ from the image. |
| Cross-Section Orientation | Curved OD |
| Cross-Section Height | 5.33 mm (0.210 in) |
| Cross-Section Width | 3.53 mm (0.139 in) |
| Hardness | 78 Shore A |
| Inside Diameter | 338.30 mm (13.319 in) |
| Material | HNBR |
| Material Description | HNBR Rubber |
| Remarks | Dimensions and material descriptions are for reference only. |
| O-Ring Type | D-Ring Seal |
| Outside Diameter | 348.96 mm (13.739 in) |
Compatible Equipment
- Wheel Loaders: R1700 XE, R1700G, R1700K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
