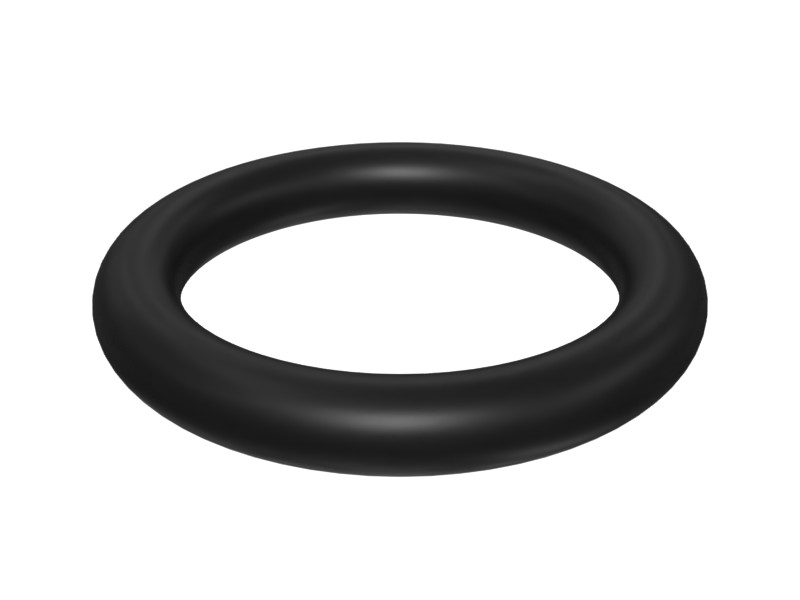

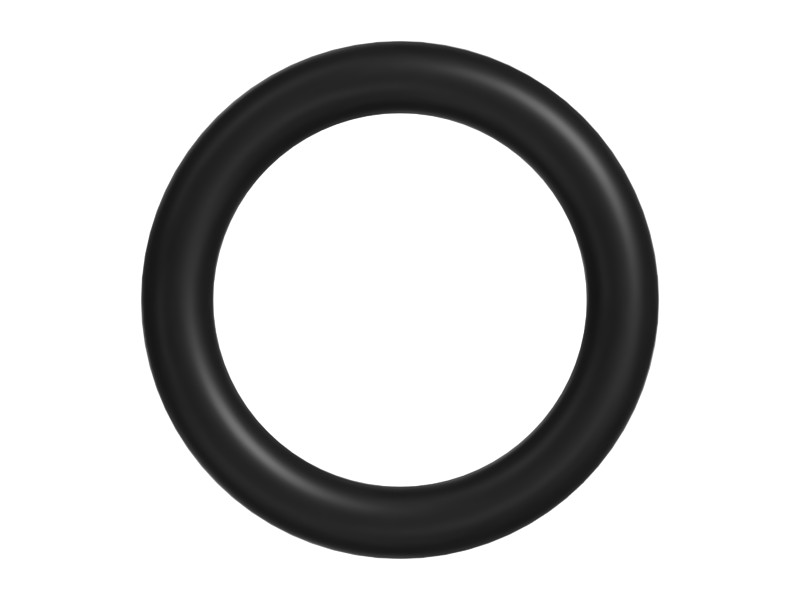

Description
O-rings are used for static sealing and some dynamic applications.
Attributes
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 90A |
|---|---|
| Polymer | NBR (Nitrile butadiene) |
| Material | NBR (90) |
| Application | Ambient Temperature Fuel Handling; High and Low Pressure LPG Service; Hydraulic Oil (Up to 10335 kPa/1500 psi); Power Steering Seals; Radiator Thermostat Seals |
| Coating | None |
| Temperature | -40 – 100 °C (-40 – 212 °F) |
| Not Compatible | Automotive and Aircraft Brake Fluids; High Concentration Ozone; Ketones; Phosphate Ester Fluids; Strong Acids; Ultraviolet Light |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Seal Inside Diameter | 9.25 mm |
| Inside Diameter | 9.2 mm (0.36 in) |
| Compatible | Anti-Wear Agents; Alpha-Olefin-Based Synthetic Lubricants; Glycols; Hydrocarbon Fuels; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants; ORFS, STORS Seals |
| Dash Size | 012 in |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 826K, 824G, 994K, 826G, 834H, 990K, 993, 826H, 972
- Cold Planers: PM620, PM622, PL72
- Compactors: CS12, CS11, 824K, CB-534D, CS79B, CS54B, CC-34B, CS68B, CB-34B, CS-54, CP54B, 834K, 825K, CS56B, 816, 815, 814, CP56B, CS74B, CS78B, CB-36B, CB-44B, CB-24B, CB10, CS-54B, CS-533E, CS64B
- Engines: C13, C11, C32, C18
- Excavators: 390F L, 308E, 374F, 390F, 374F L, 6060, 336E LN, 313F LGC, 336F, 336D2 L, 657G, 637G, M325D L MH, 312E L, 315F LCR, 329E L, 313F L, 312E, 336E L, 336F L, 320D FM, 336D2 XE, 336F L XE, 329E, 336F LN, 637E, 621H, 621G, 352F, 349E L VG, 349E L, 336E LH, 335F LCR, 336E, 320E
- Asphalt Pavers: AP300F, AD63, AP355F
- Skid Steer Loaders: 24, 216B3, 236, 236B3, 226B, 226B3
- Motor Graders: 16M, 18, 316F, 120, 14M, 16, 14, 16M3
- Wheel Excavators: M315, M313D, M320, M315D, M320D2, M322D, M315D2, M317D2, M315GC
- Dozers: D8, D6T, D6R II, D5N, D5K LGP, D6T LGP, D6R, D6R III, D6R XL, D3G, D5G, D7R II, D6N, D4G, D8R, D3K2 LGP, D8T, D6R LGP, D5K XL, D7, D7R, D9T, D5K2 XL
- Wheel Loaders: 950H, R2900 XE, 924K, 938K, 962L, 988K, 980H, 966H, 972H, 962G, 966L, RM500B, M314, 926M, 980G, 950G, 950L, 972G, 972L, 938M, 988G, 950, 990H, 988H, 836, 834, 966
- Off-Highway Trucks: 730, 725, 797F, 740, 740B, 745, 725C2, 735, 740 GC, 745C
