Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
|---|---|
| Material | Alloy Zinc |
| Class or Grade | ISO 898-2 Class 12 |
| Thread Size | M8 mm (0 in) |
| Drive Chain | 13 mm (0.512 in) |
| Hole Thread Pitch | 1.25 |
| Grade | 5 |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Material Description | ISO Class 12 or SAE Grade 8 Equivalent |
| Thread Direction | RH |
| Thickness | 4 mm (0.157 in) |
| Thread | RH Coarse |

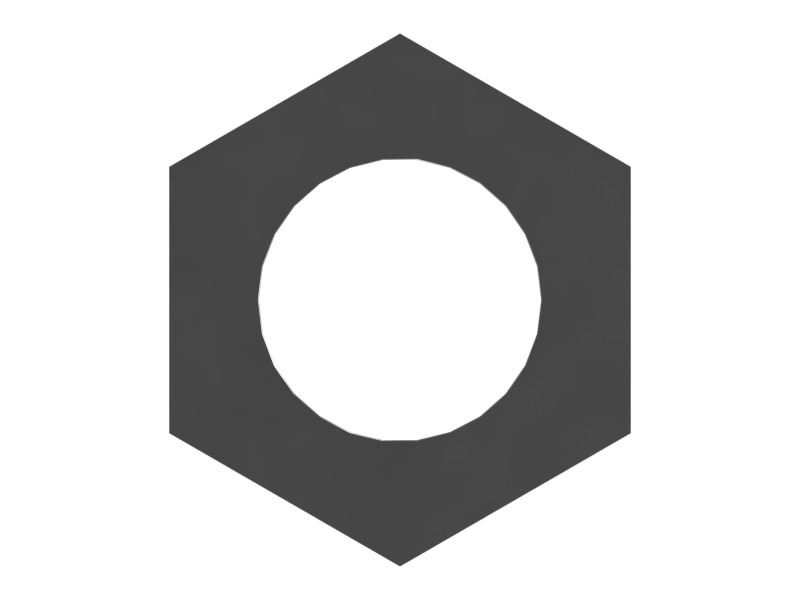

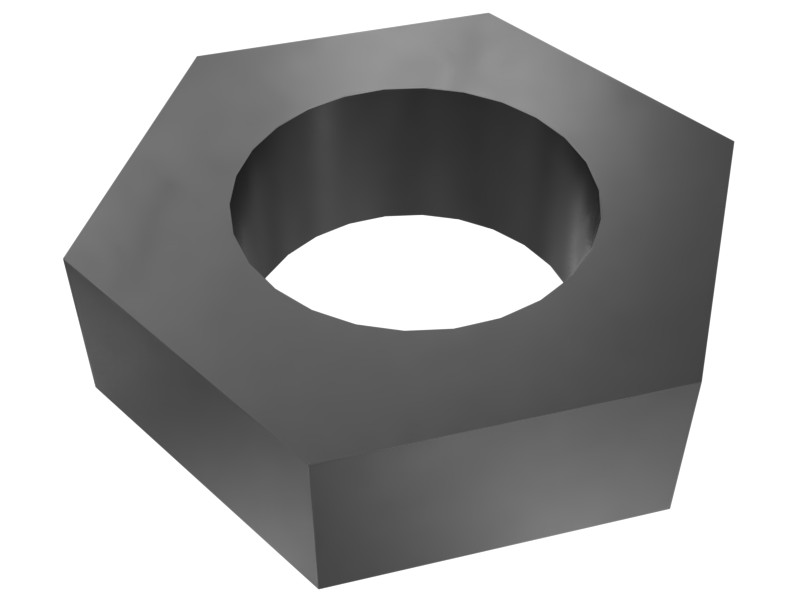

| Nut Model | Hex |
| Thread Size (in – TPI) | M8-1.25 in |
Compatible Equipment
- Generator Sets: C9, C4.4
- Compactors: CB1.8, CB1.7, CS-563E, CW-34, C-9
- Engines: C11, C13, C7, C15, C175-16, C18
- Excavators: 303, 305, 6030, 637K, 621H, 621K
- Skid Steer Loaders: 289D3, 262D3, 246D3, 232D3, 226D3, 239D3, 249D3, 242D3, 236D3, 259D3, 246D, 262D, 236D, 232D, 3126B
- Motor Graders: 16H, 140H, 12H, 120H
- Dozers: D7E
- Compact Track Loaders: 279D3
- Mini Excavators: 307, 305.5 GC
- Wheel Loaders: 986H, R1700K, 910, 950H, 972H, 966H, 980H, 966F, 906K
- Off-Highway Trucks: 730, 735, 740 GC, 745, 740B, 740, 745C, 725C2, 725, 7495
Additional information
| Machine Model | 120H, 12H, 140H, 16H, 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 279D3, 289D3, 303, 305, 305.5 GC, 307, 3126B, 6030, 621H, 621K, 637K, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 7495, 906K, 910, 950H, 966F, 966H, 972H, 980H, 986H, C-9, C11, C13, C15, C175-16, C18, C4.4, C7, C9, CB1.7, CB1.8, CS-563E, CW-34, D7E, R1700K |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
