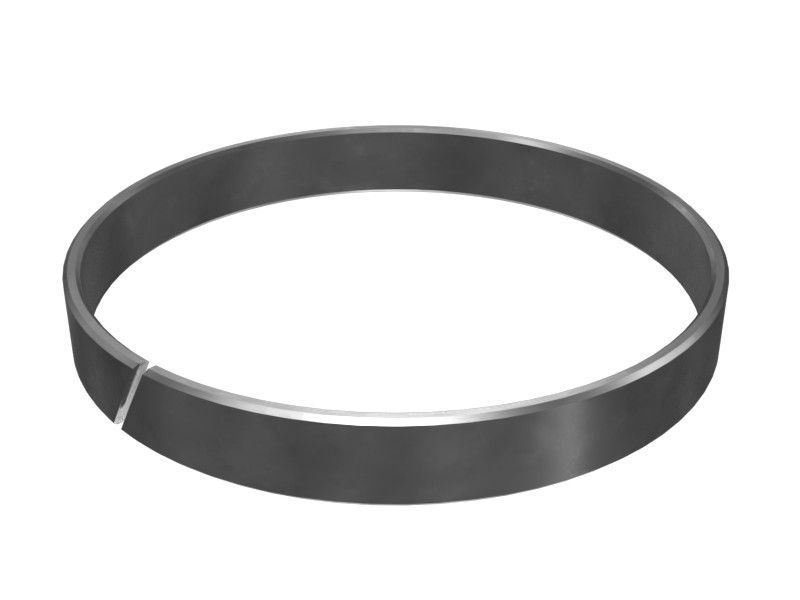

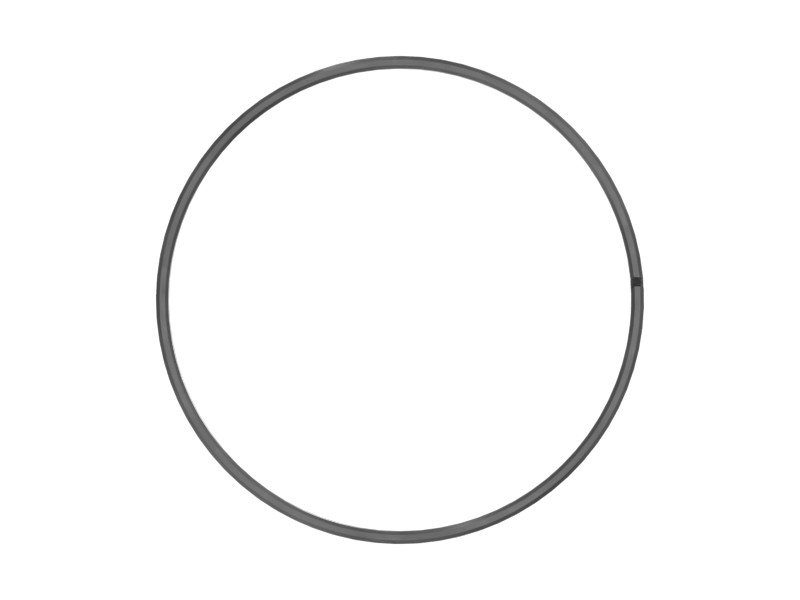

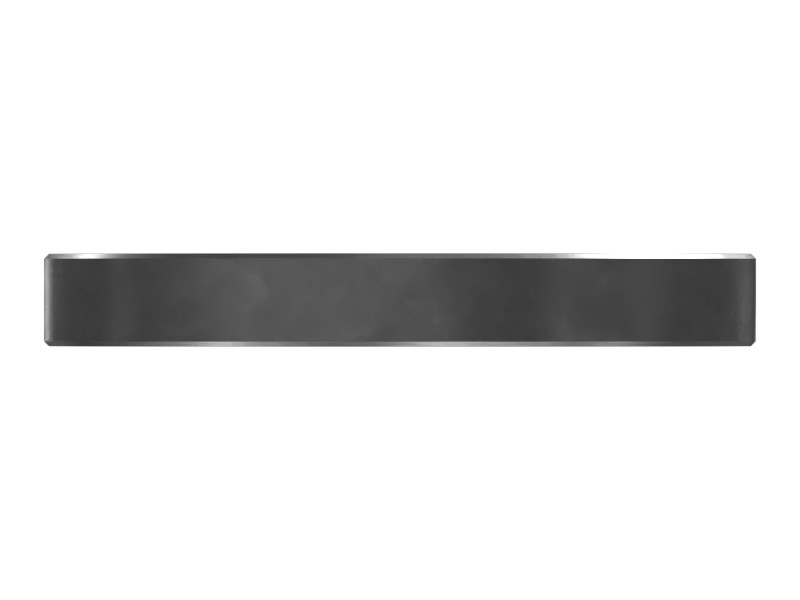

158-9063 120 mm OD Bucket Cylinder Piston Guide Ring

Description

Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.

Features

Material: Nylon Type 6
30° cut angle
Inside Diameter: 113.87 mm
Thickness: 3 mm

Applications

Used as needed for servicing hydraulic cylinder components to keep your equipment leak-free. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Material Description	Nylon Type 6
Thickness	3 mm (0.12 in)
Overall Length	15.5 mm (0.61 in)
Inside Diameter	113.87 mm (4.48 in)
Material	Nylon, 6, 6/12, 6/6 Plastic

Compatible Equipment

Track Loaders: 992
Wheel Excavators: M315D, M322D, M317D2
Excavators: 330D L, 323D L, 325B L, 320E, 320C, 325D L, 320D L, 336D L, 325C, 324D L, 325D, 320D FM, 320B, 329D L, 330C, 345B, 345C L, M325D L MH, 320D2, 320D

Machine Model	320B, 320C, 320D, 320D FM, 320D L, 320D2, 320E, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 329D L, 330C, 330D L, 336D L, 345B, 345C L, 992, M315D, M317D2, M322D, M325D L MH
Equipment Type	Excavators, Wheel Excavators, Track Loaders
Part Source	Genuine OEM

Machine Model

320B, 320C, 320D, 320D FM, 320D L, 320D2, 320E, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 329D L, 330C, 330D L, 336D L, 345B, 345C L, 992, M315D, M317D2, M322D, M325D L MH

Equipment Type

Excavators, Wheel Excavators, Track Loaders

Part Source

Genuine OEM
