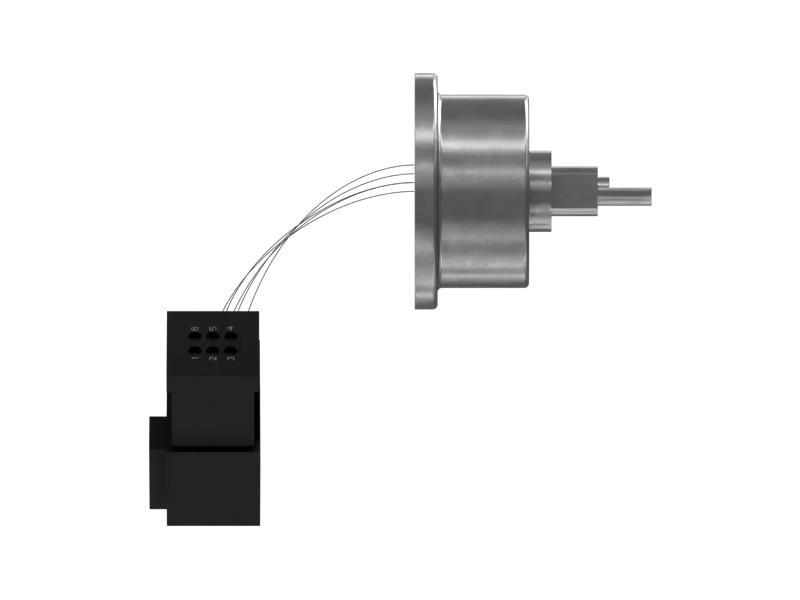

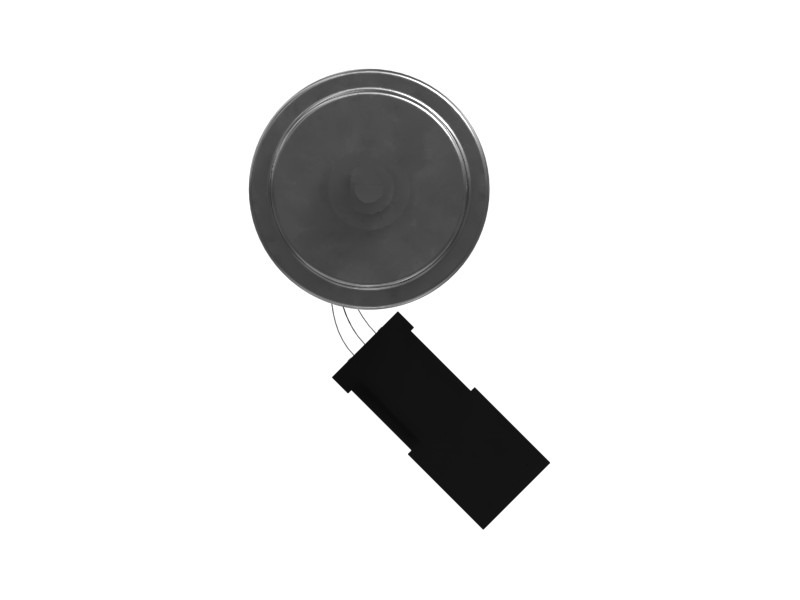

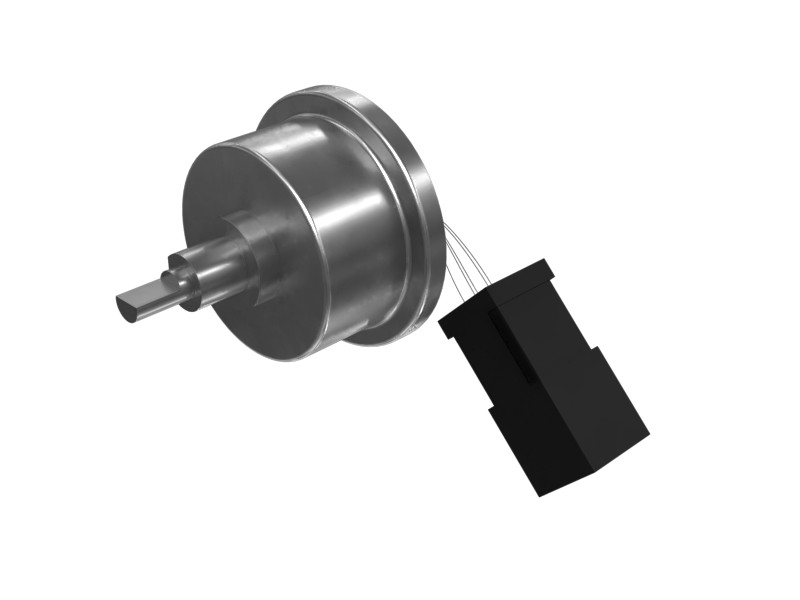

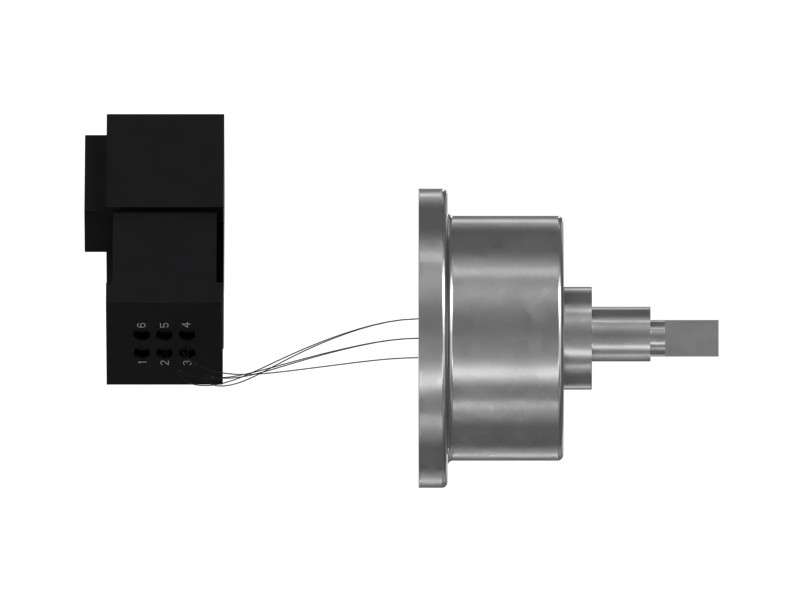

157-1361 Air Conditioning Control Rotary Switch
Cat® Air Conditioning Control Rotary Switch with a smooth rotation mechanism for easy option selection and precise fidelity.
Description
Cat parts help your equipment operate at its best, giving you peace of mind. Cat rotary switches contain a spindle that provides various indexing angles; manual rotation reaches different positions to achieve all-wheel-drive/variable gear control.
Features
- 5-Speed Fan Blower Rotary Switch
- Connector Type: 6-Pin DT
- Thread Size: 7/16-28
- Voltage: 12-24 VDC
- Panel Thickness: 1.2-5 mm (0.05-0.12 in)
- Heavy-Duty Construction
- High accuracy and stable performance
- Rugged design for long service life
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Operator console for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts operate in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion, and dust.
Specifications
| Diameter | 52.57 mm (2.07 in) |
|---|---|
| Lead Length | 160 mm (6.3 in) |
| Connector Type | 6-Pin DT |
| Spindle Diameter | 0.25 in |
| Thread Size | 7/16-28 in |
Compatible Equipment
- Cold Planers: TH360B
- Dozers: D9R, D11T, D11R, D10R, D6R II, D4G, D6T, D6R III, D6R, D3G, D7R II, D7R, D9T, D5G, D8T, D6R XL, D10T
- Excavators: 637G, 657G, 621G
- Wheel Loaders: 980H, R1700G, R3000H, R2900G, R1600H, R1300G, R2900 XE
- Off-Highway Trucks: 773, 773E, 777, 785, 789, 785D, 789D, 773D, 771D, 777D, 777E, 793D, 793
- Asphalt Pavers: AD30, AD45, AD63
Additional information
| Machine Model | 621G, 637G, 657G, 771D, 773, 773D, 773E, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 980H, AD30, AD45, AD63, D10R, D10T, D11R, D11T, D3G, D4G, D5G, D6R, D6R II, D6R III, D6R XL, D6T, D7R, D7R II, D8T, D9R, D9T, R1300G, R1600H, R1700G, R2900 XE, R2900G, R3000H, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
