Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong driving capability.
Features
*Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M14 mm (0 in) |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M14x1.5 mm |
| Bolt Length | 40 mm (1.575 in) |

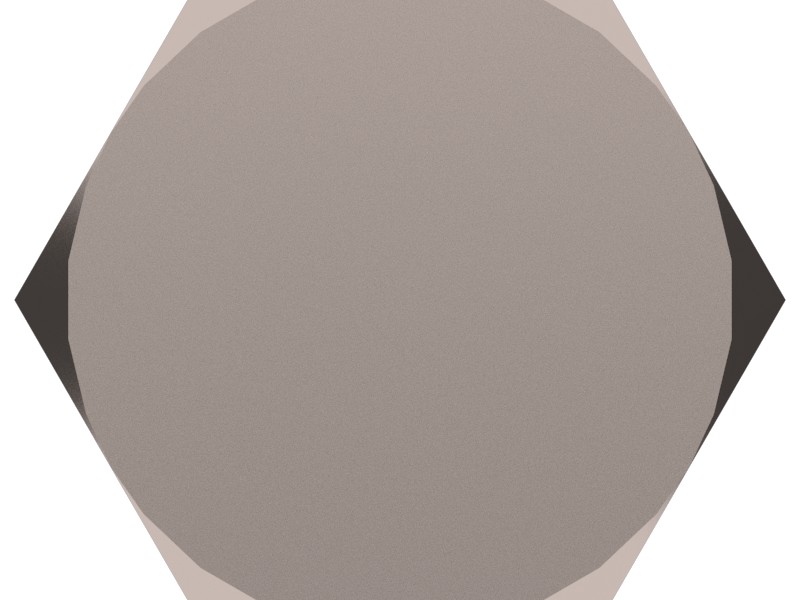

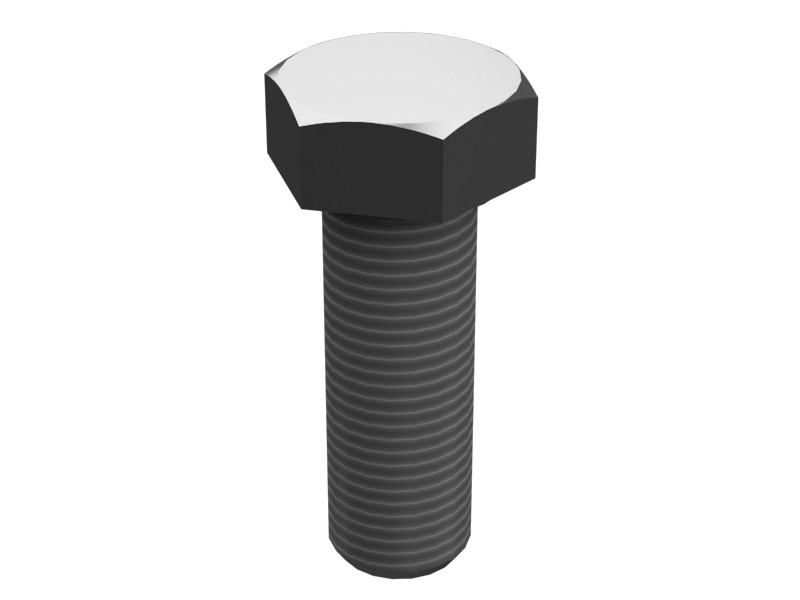

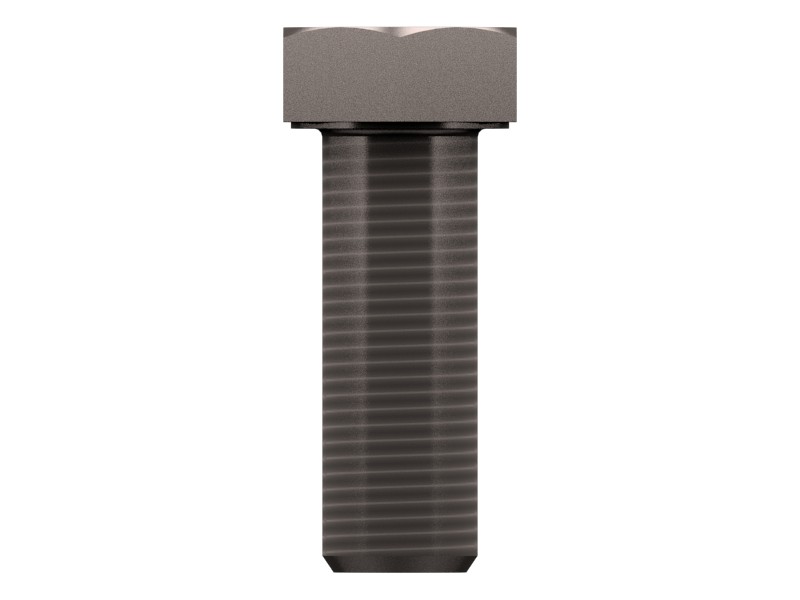

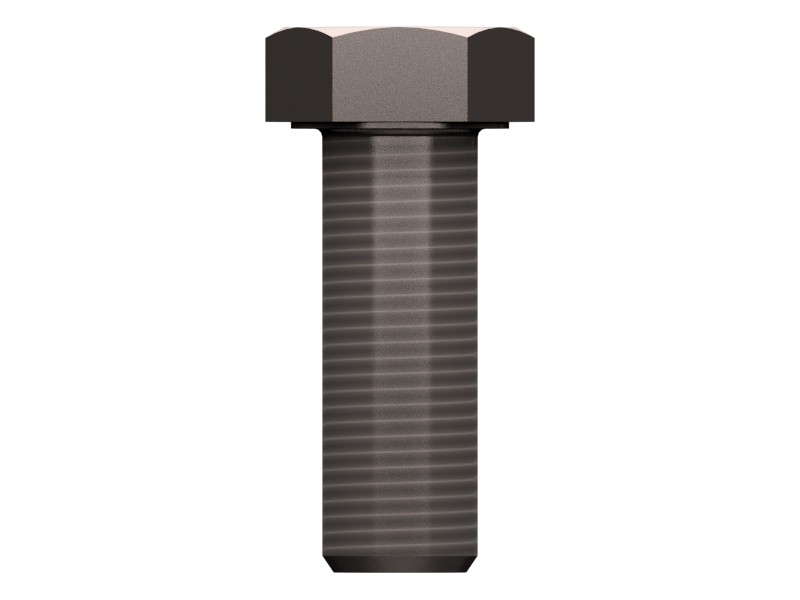

| Bolt Type | Hex Head |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Handle Length | 4.5 mm (0.177 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Mini Excavators: 308E2, 305.5 GC
- Excavators: 303.5CR, 305, 308E
- Asphalt Pavers: AP300F, AP355F
- Skid Steer Loaders: 249D3, 236D3, 239D3, 232D, 226D3, 232D3
Additional information
| Machine Model | 226D3, 232D, 232D3, 236D3, 239D3, 249D3, 303.5CR, 305, 305.5 GC, 308E, 308E2, AP300F, AP355F |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Asphalt Pavers |
| Part Source | Genuine OEM |
