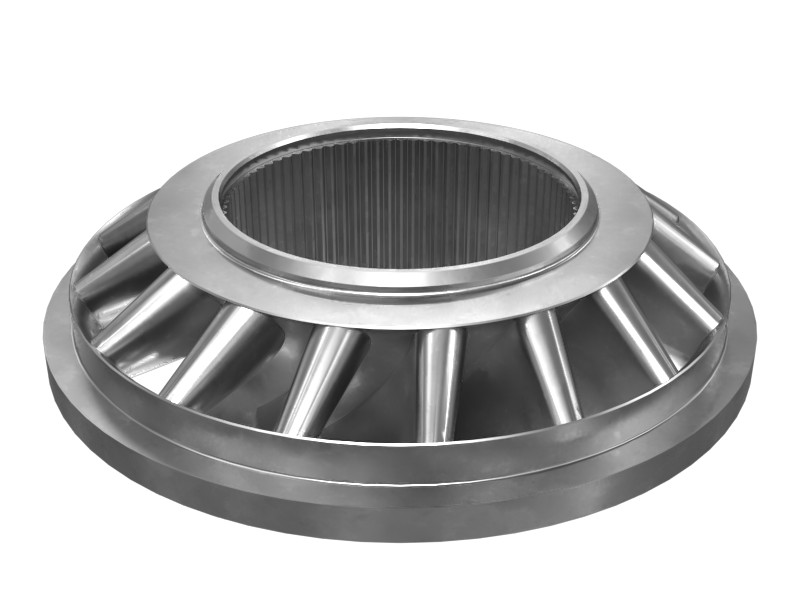

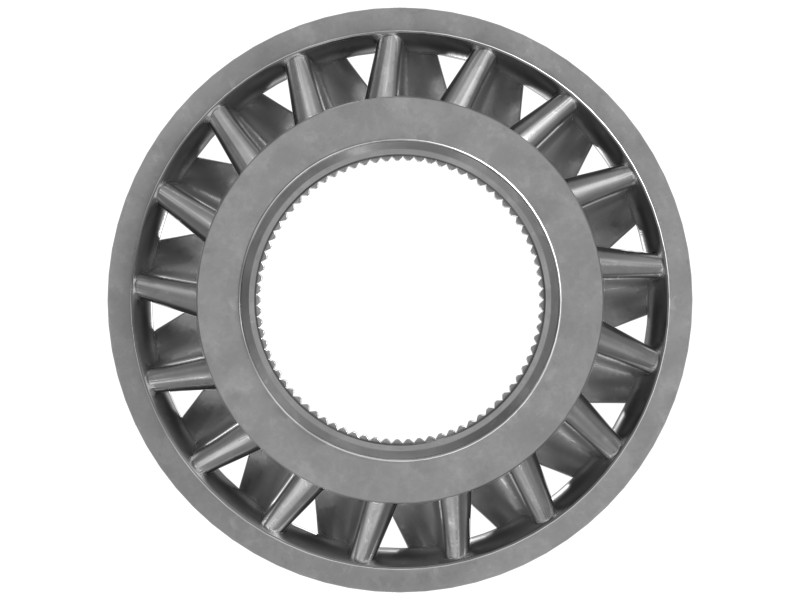

156-7239 17 Blade Torque Converter Stator
Cat® torque converter stator with 81 internal spline teeth in automatic transmissions improves torque efficiency and vehicle performance.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Power generated by the engine is multiplied in the torque converter and then transmitted to the transmission for use by other powertrain components. The torque converter stator is one of the components in the torque converter that redirects the flow of fluid to achieve the required torque converter performance.
Features
- Material: Cast aluminum
- Number of Blades: 17
- Number of Internal Spline Teeth: 81
- Outside Diameter: 266.7 mm (10.5 in)
- Inside Diameter: 131.06 mm (5.16 in)
- Length: 85.5 mm (3.37 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Cast Aluminum |
|---|---|
| Outside Diameter | 266.7 mm (10.5 in) |
| Inside Diameter | 131.06 mm (5.16 in) |
| Length | 85.5 mm (3.37 in) |
Compatible Equipment
- Generator Sets: C9
- Cold Planers: PL83, PL87
- Engines: C15, C13, C11
- Dozers: D8, D8T, D8R
- Excavators: 3508B
- Off-Highway Trucks: 725, 735, 730, 725C2
Additional information
| Machine Model | 3508B, 725, 725C2, 730, 735, C11, C13, C15, C9, D8, D8R, D8T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Dozers, Off-Highway Trucks, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
