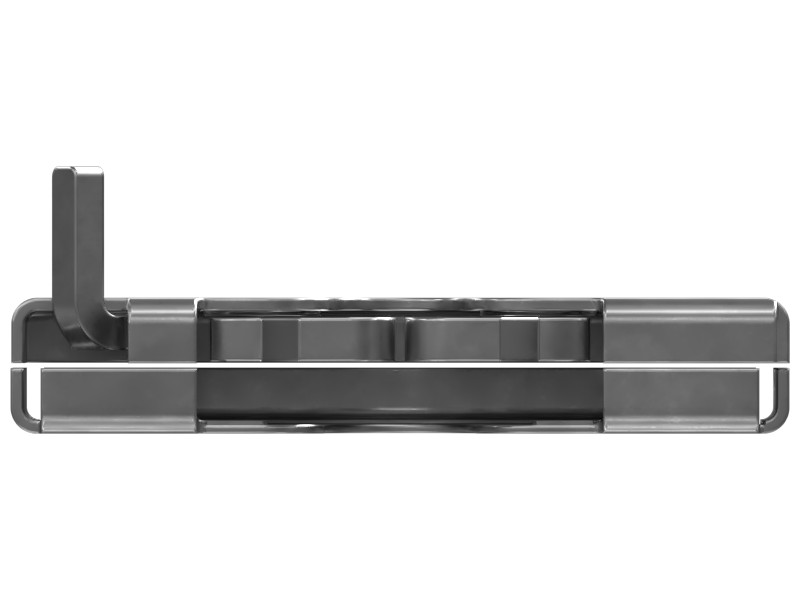

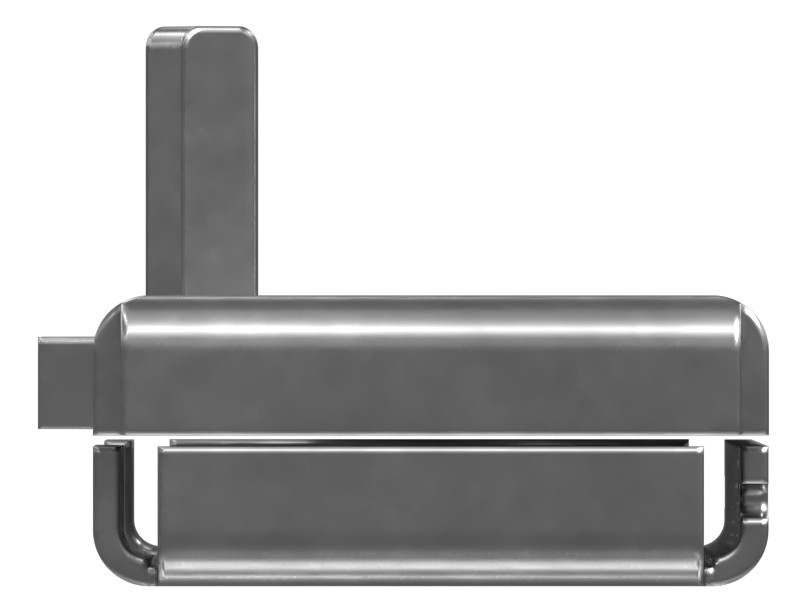

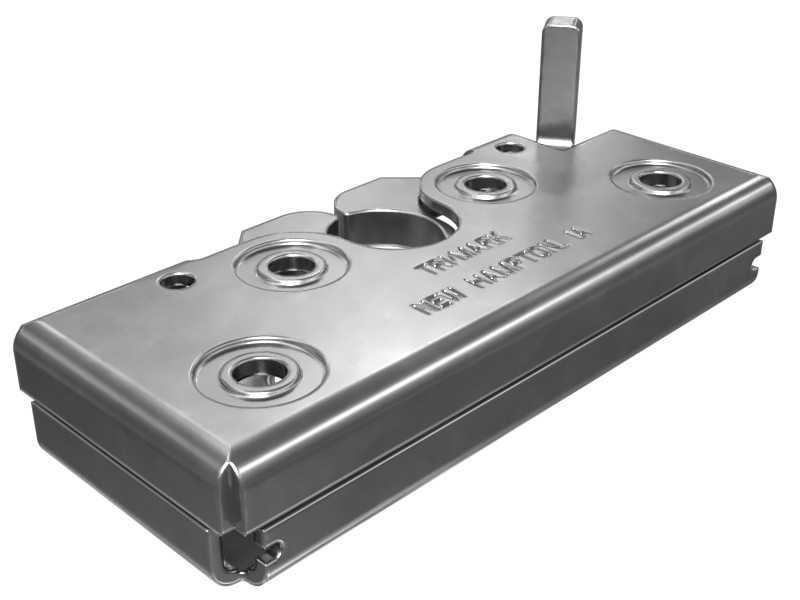

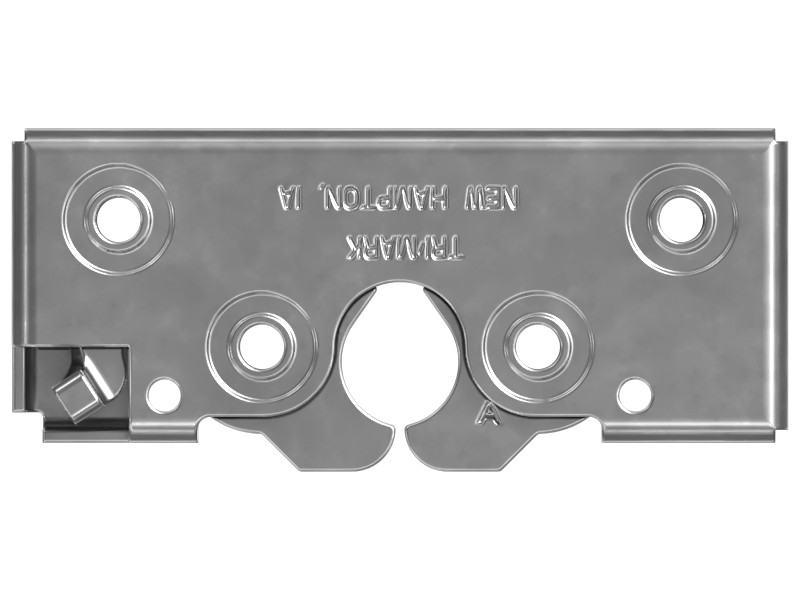

156-6563 113.7 mm Long Window Catch
The Cat® operator cab front upper window catch is a locking mechanism that holds the front upper window securely in place, ensuring safe and proper closure.
Description
Cat catch groups are used to keep doors, access panels, or guards closed. Cat latches are designed to allow easy access to specific compartments and keep the compartment closed while the unit is operating.
Features
- Single Rotor Latch
- Mounts with M6 threaded fasteners
- Zinc plated, bright chrome steel
- Specific independent mechanism for all locking applications
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
For use on cab doors on Cat mini hydraulic excavators. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Stainless Steel |
|---|---|
| Coating | Zinc Plated |
| Overall Length | 0 mm (0 in) |
| Overall Width | 38.4 mm (1.512 in) |
| Overall Height | 50 mm (1.969 in) |
| Fits Bolt Size | M6 mm (1/4-20 in) |
Compatible Equipment
- Wheel Excavators: M320, M317D2, M315D2, M320D2, M315GC
- Excavators: 330D L, 313 GC, 316 GC, 313, 320C, 324D, 330C L, 323D L, 336D2 L, 315D L, 312D L, 313D2 GC, 320D L, 329D L, 320D2 L, 324D L, 330D2, 326D L, 336D2 GC, 336D L, 320D2 GC, 315C, 318D2 L, 313D2, 325C, 325D L, 312D2 GC, 313D, 311D LRR, 320D GC, 325C L, 323D2 L, 320D3, 385C L, 385C, 365C, 323 GX, 320 GX, 312 GC, 313 GX, 340D2 L, 312 GX, 316 GX, 336D2 XE, 330D2 L, 312D2 L, 320C L, 330C, 320D RR, 312D, 312C L, 330D, 312D2, 312C, 320D FM, 318D2, 318D L, 325D, 313F LGC, 313D2-GC, 345D L, 349D L, 345C, 345D, 340D L, 336D, 320D2, 326D2, 329D2 L, 320D, 329D, 336D2, 326D2 L, 329D2, 349D2 L, 349D2, 349D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311D LRR, 312 GC, 312 GX, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F LGC, 315C, 315D L, 316 GC, 316 GX, 318D L, 318D2, 318D2 L, 320 GX, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323 GX, 323D L, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 365C, 385C, 385C L, M315D2, M315GC, M317D2, M320, M320D2 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
