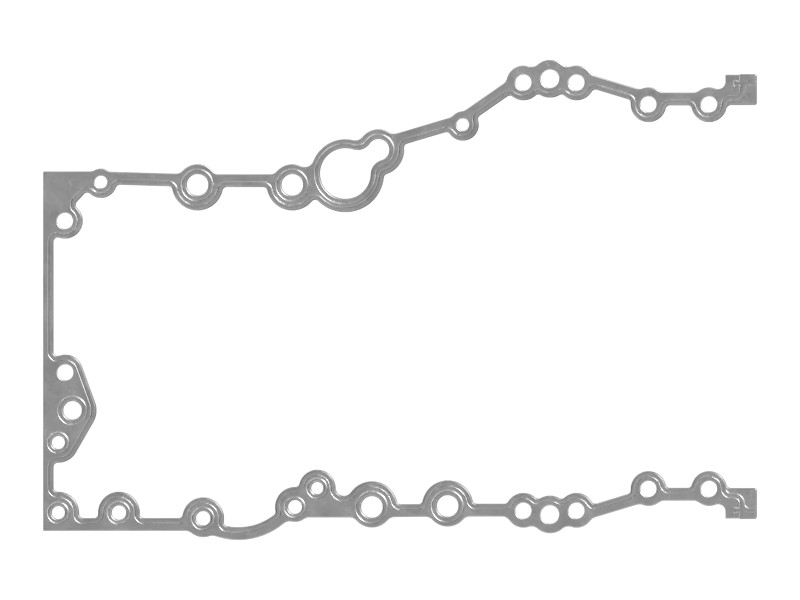

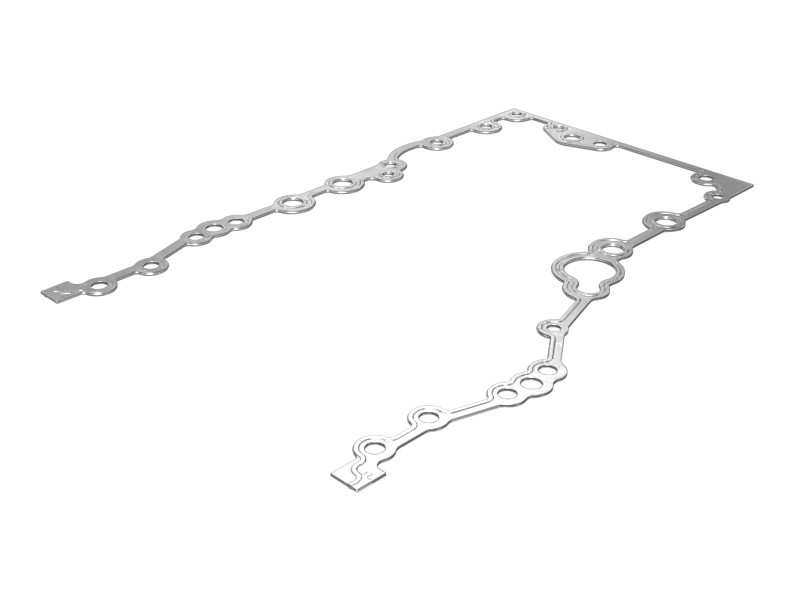

155-9524 2.28 mm Thick Edge-Bonded Seal
Cat® steel rubber edge-bonded sealing gasket for engine front housings and timing gear housings
Description
Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 597 mm |
| Overall Width | 402 mm |

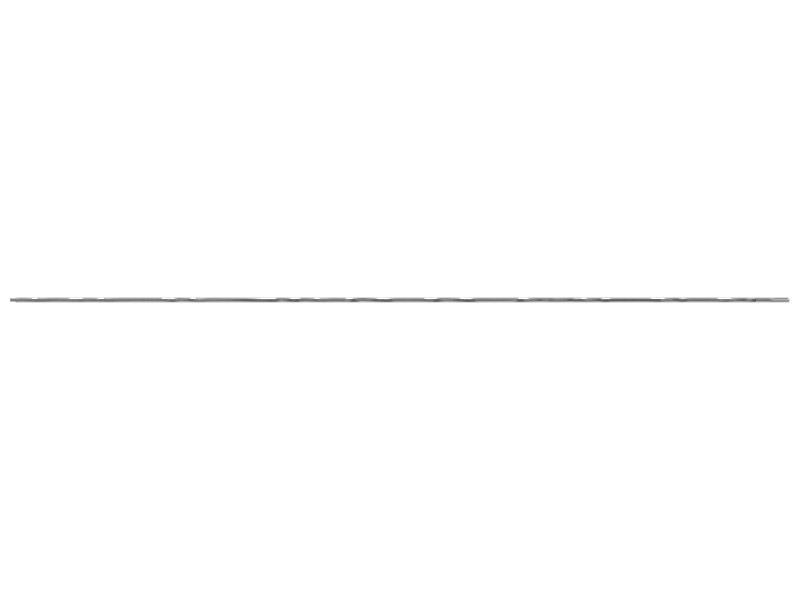

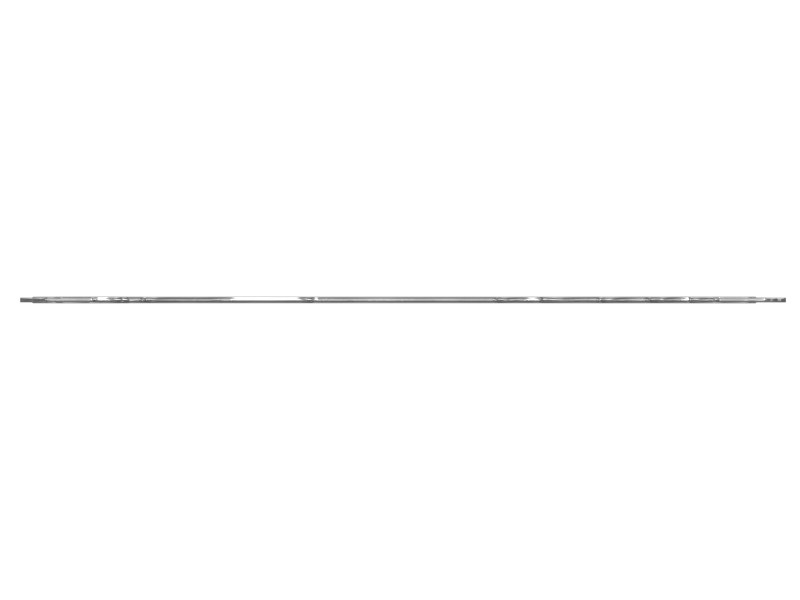

| Material Thickness | 2.28 mm (0.09 in) |
| Primary Seal Material | HNBR |
| Seal Shape | Irregular |
| Material Description | HNBR rubber has a service temperature range of -40 to 115C and is resistant to fuel, oil and lubricants, while providing excellent abrasion and cut resistance. |
Compatible Equipment
- Track Loaders: 834H, 824C, 826G, 826K, 826H, 824G
- Cold Planers: PL83, PL87, PM622, PM620, PM-200, PL72
- Compactors: 824K, 825K, 834K, C-15
- Engines: C15, C18
- Excavators: 374D L, 390F L, 3456, 374F, 390D L, 374, 657G, 637E, 637K, 637G, 3508B, 3101, 385C L, 385C, 390F, 365C, 374F L, 621G, 390D, 385C FS, 6015, 365C L, 6015 FS, 6018, 395
- Asphalt Pavers: AD30, AD45
- Wheel Excavators: MD6200
- Dozers: D8, D8R, D8T, D9T, D9
- Wheel Loaders: 980H, 988K, 980G, R2900 XE, 836, 834, 988H, 986H, 988G, RM500B, R3000H, R2900G
- Off-Highway Trucks: 735, 770G, 772G, 745, 740 GC, 740, 740B, 745C
Additional information
| Machine Model | 3101, 3456, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6018, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, AD30, AD45, C-15, C15, C18, D8, D8R, D8T, D9, D9T, MD6200, PL72, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines |
| Part Source | Genuine OEM |
