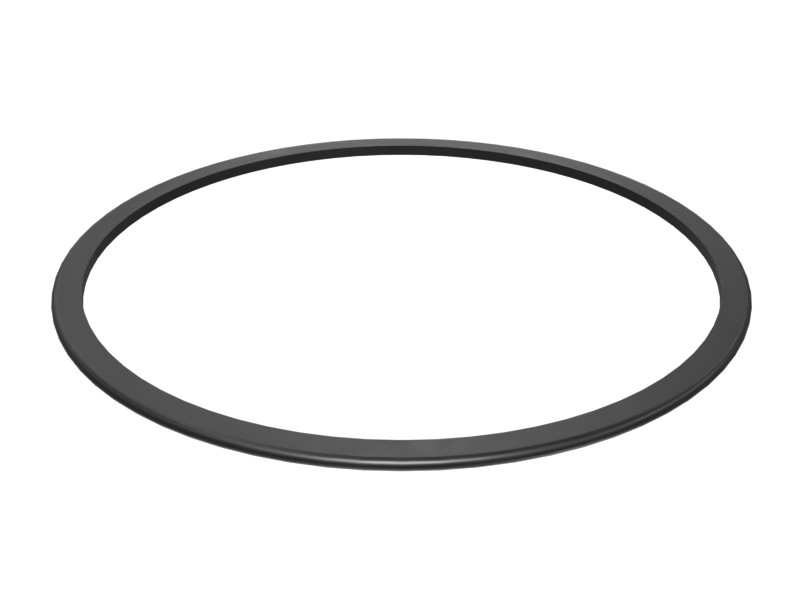

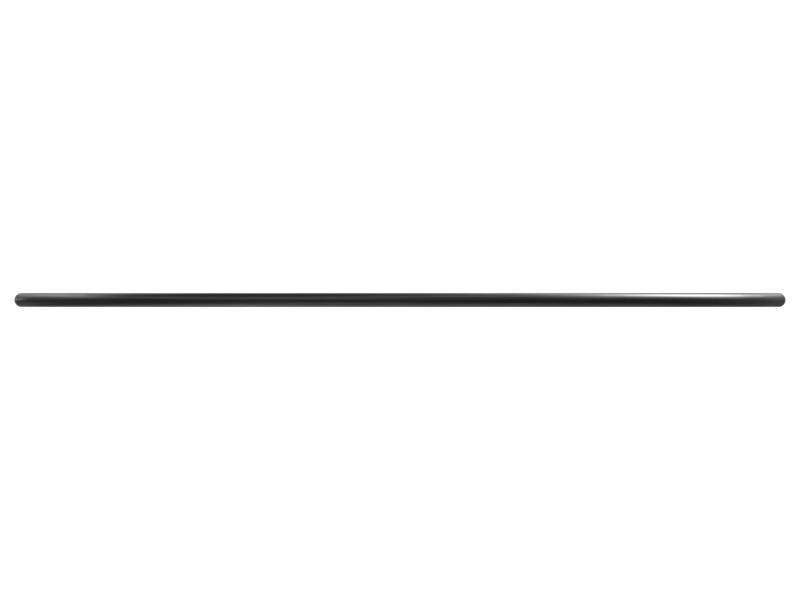

155-5161 263.5 mm ID Oil Damper Seal
Cat® oil damper seals keep oil from escaping the crankshaft area and regulate its distribution within the engine
Description
Cat seals are used to retain engine fluids and keep contaminants out of the engine. Cat seals are manufactured to the highest quality standards to keep equipment leak-free.
Features
- Material: Fluorocarbon Rubber
- Cross-Section Orientation: Curved OD
- Outside Diameter: 287.5 mm (11.32 in)
- Inside Diameter: 263.5 mm (10.38 in)
- Axial Width: 5 mm (0.19 in)
Applications
Torque converter and housing assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Cross-Section Orientation | Curved OD |
|---|---|
| Seal Type | D-Ring Seal |
| Material | FKM |
| Inside Diameter | 264 mm (10.4 in) |
| Hardness | 75 Shore A |
| Material Description | Fluorocarbon Rubber |
| Outside Diameter | 288 mm (11.3 in) |
| Cross-Section Width | 5.00 mm (0.197 in) |
| Width | 5 mm (0.2 in) |
| Cross-Section Height | 12.00 mm (0.472 in) |
| Coating | None |
| Color | Medium Gloss Black |
| Color Note | Actual O-ring color may differ from the image. |
| Remarks | Dimensions and material descriptions are for reference only. |
Compatible Equipment
- Cold Planers: PL72
- Dozers: D8T, D8, D6T, D6R III, D7R II, D6T LGP, D6R, D7R, D7, D8R, D6R XL, D6R LGP, D6R II
