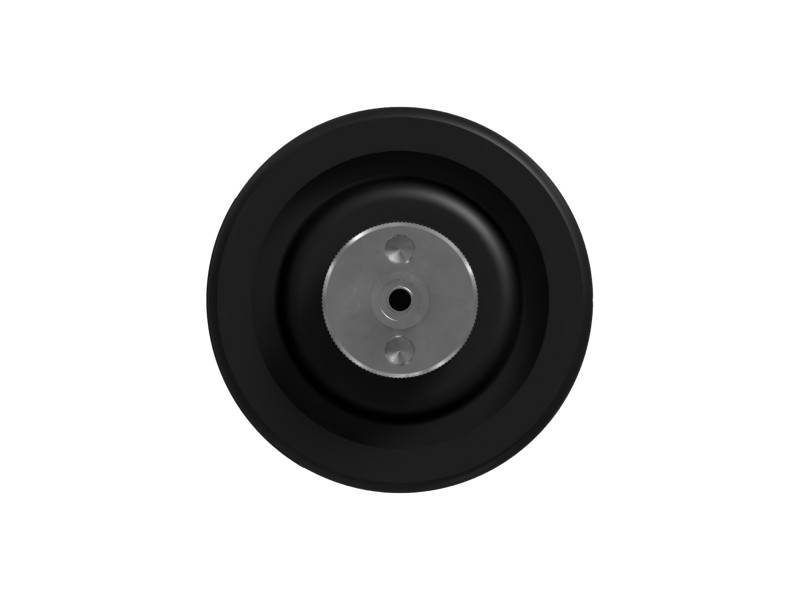

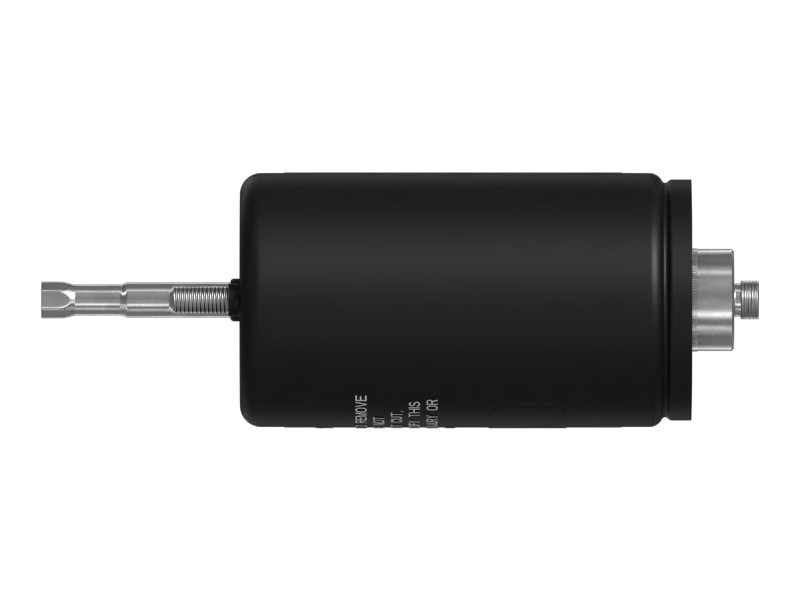

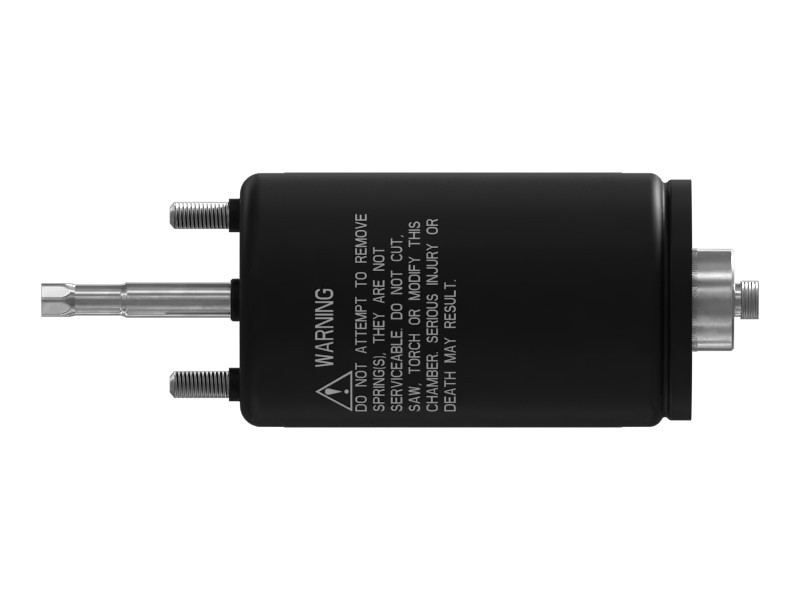

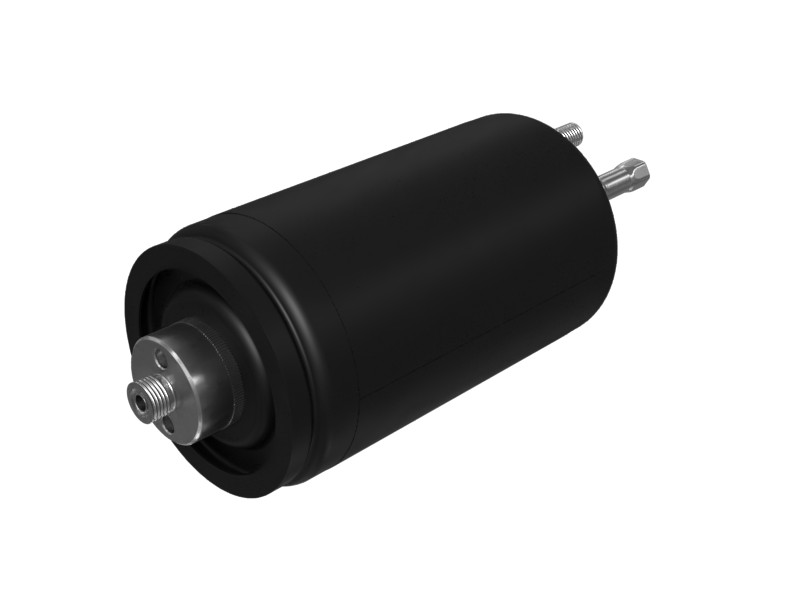

154-8041 Parking Brake Actuator, 323.45 mm Length
Cat® Parking Brake Actuator, 323.45 mm Length
Description
The parking brake actuator is the component of the parking brake that engages or disengages it. It is usually a hydraulic component controlled by a switch or lever in the operator cab. In a hydraulic parking brake, the actuator is a hydraulic cylinder that applies force to the brake pads when the parking brake is engaged.
Features
- At least 8825 kPa of pressure is required to fully close the actuator
- Maximum working pressure will be 25338 kPa
- Built to exact specifications for durability and reliable performance
Applications
The parking brake actuator is used in parking brakes, allowing the operator to brake with it even if the main hydraulic brake fails.
Specifications
| Inside Diameter | 45.9 mm |
|---|---|
| Outside Diameter | 114.3 mm (4.5 in) |
| Overall Length | 323.45 mm (9.8 in) |
| Operating Pressure | 20700 kPa (3000 psi) |
| Thickness | 0.59 in |
| Thread | M12 X 1.75, M10 X 1.5 |
| Weight | 0.02 lb |
| Width | 0.94 in |
Compatible Equipment
- Track Loaders: 816F
- Compactors: 815, 816, 814
- Wheel Loaders: 966F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
