Description

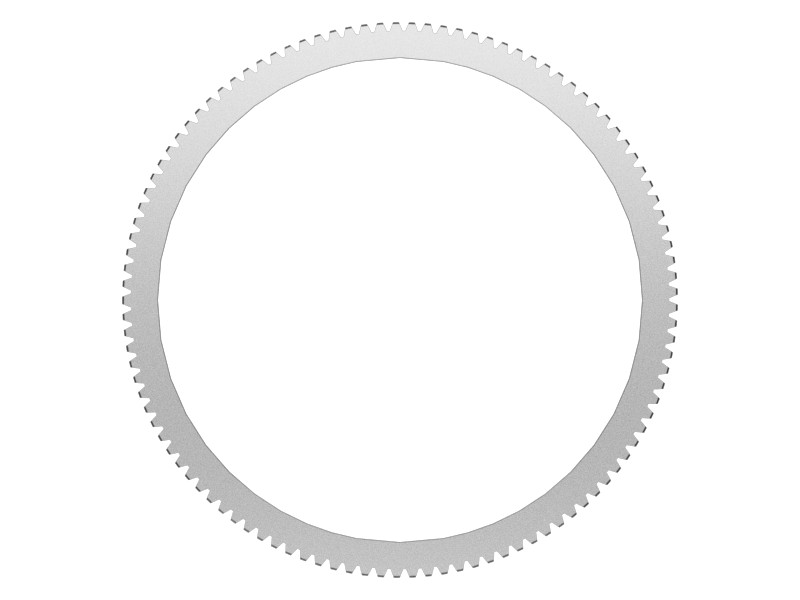

The starting motor ring gear (also called the flywheel ring gear) is a toothed ring mounted on the flywheel, which is a rotating disc connected to the engine crankshaft. The flywheel gear transfers torque from the starting motor to the engine crankshaft, starting the combustion process. It also helps maintain the engine's rotational angular momentum.
Features
- Pitch diameter and module are 320.04 and 2.54, respectively
- Pressure angle is 20 degrees
- Induction hardened for improved wear resistance
- Smooths the engine's power delivery, reduces vibration, and provides more consistent rotational motion
Applications
The starting motor ring gear is mounted at the rear of the engine and can be attached to the flange or hub of the crankshaft.
Specifications
| Material | Corrosion Preventative Fluid |
|---|---|
| Material Description | Steel |
| Inside Diameter | 279.0 mm (2.59 in) |
| Height | 10 mm (0.393 in) |
| Number of Teeth | 126 |
| Outside Diameter | 321.5 mm (3.94 in) |
| Thickness | 0.04 in |
| Width | 10 mm |
Compatible Equipment
- Generator Sets: C2.2DE18E3
- Compactors: CB-34B, CB-14, CB-36B, CC-34B
- Mini Excavators: 301.5, 301.7CR, 302CR, 305.5 GC
- Excavators: 301.6, 301.8
- Skid Steer Loaders: 236D3, 249D3, 232D, 226B, 226D3, 239D3, 226B3, 216B3, 232D3
Additional information
| Machine Model | 216B3, 226B, 226B3, 226D3, 232D, 232D3, 236D3, 239D3, 249D3, 301.5, 301.6, 301.7CR, 301.8, 302CR, 305.5 GC, C2.2DE18E3, CB-14, CB-34B, CB-36B, CC-34B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Compactors, Generator Sets |
| Part Source | Genuine OEM |
