Description
Metric
Cat nuts and matching fasteners form a matched system that produces consistently high clamping force.
Features
- Material: Steel
- Thread Size: M7
- Zinc flake
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Thread Size (Diameter × Pitch) | M7x1 mm |
|---|---|
| Coating | Oil with Corrosion Inhibitor |
| Class or Grade | See Drawing |
| Drive Chain | 10 mm (0.394 in) |
| Material Description | Steel |
| Height | 5.5 mm (0.22 in) |
| Hex Size | 10 mm (0.39 in) |
| Thread Size | M7x1 mm (0 in) |
| Thread Direction | RH |
| Thickness | 5.5 mm (0.217 in) |
| Thread | RH Coarse |

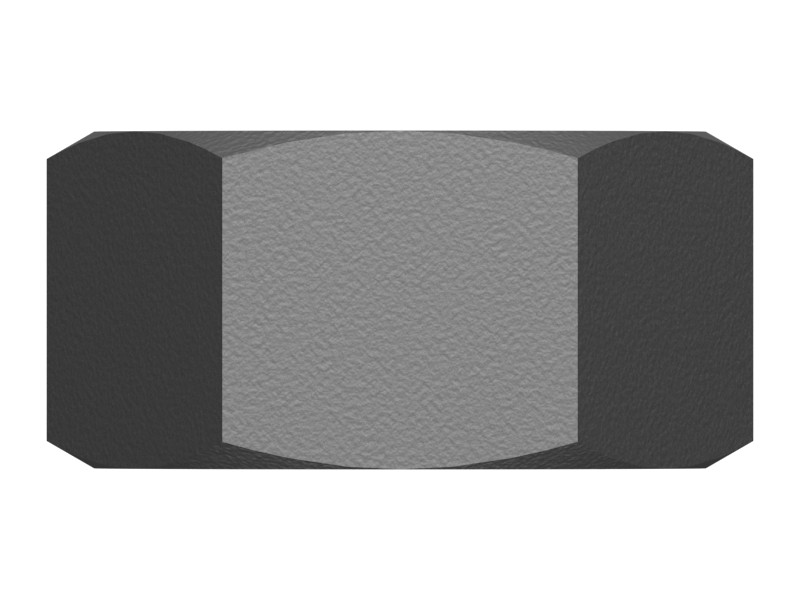

| Nut Model | Hex |
| Thread Size (in – TPI) | M7-1 in |
Compatible Equipment
- Generator Sets: C2.2DE18E3
- Compactors: CB1.8, CB1.7, CB2.5 GC, CB2.7 GC, CC2.7 GC, CC-34B, CB-335D, CB-14, CB-36B, CB2.7, CB-34B, CB2.9, CB2.5, CB-334D, CB-24B
- Mini Excavators: 305.5 GC, 302CR, 301.5, 301.7CR, 303.5
- Excavators: 302.7CR, 303CR, 303.5CR, 305 CR, 301.8, 301.6, 305
- Skid Steer Loaders: 226B, 236D3, 232D3, 226D3, 226B3, 239D3, 249D3, 216B3, 232D
Additional information
| Machine Model | 216B3, 226B, 226B3, 226D3, 232D, 232D3, 236D3, 239D3, 249D3, 301.5, 301.6, 301.7CR, 301.8, 302.7CR, 302CR, 303.5, 303.5CR, 303CR, 305, 305 CR, 305.5 GC, C2.2DE18E3, CB-14, CB-24B, CB-334D, CB-335D, CB-34B, CB-36B, CB1.7, CB1.8, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Compactors, Generator Sets |
| Part Source | Genuine OEM |
