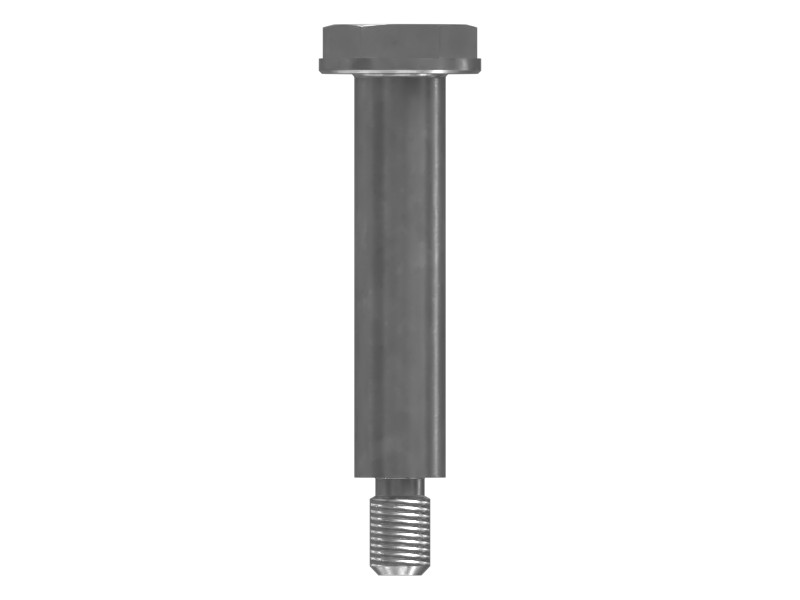

153-5276 Flange Head Bolt

Description

Fastener parts (such as 153-5276) are designed for specific applications based on size, strength, clamp load, and past performance. This information is not available to other manufacturers. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to work for your machine, but other companies don't know your equipment the way we do.

These bolts are used where a separate washer is not needed.

Features

Steel hex flange head bolt
Coating: Zinc Phosphate and Oil
Drive: 22 mm
Thread Size: M10X1.5
Bolt Length: 82 mm
Grip Length: 66 mm
Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Class or Grade	ISO 898-1 Class 10.9
Thread Direction	RH
Thread Size	M10 mm (0 in)
Locking Feature	None
Bolt Length	82 mm (3.228 in)
Material	Steel
Bolt Type	Flange Head Bolt
Coating	Zinc Phosphate and Oil
Flange Type	Smooth Flange Face
Handle Length	66 mm (2.717 in)
Thread Size (Diameter × Pitch)	M10 X 1.5 mm
Flange Diameter	26.5 mm

Compatible Equipment

Generator Sets: 3512B, C7.1
Excavators: 330D L, 340, 320D3, 335F LCR, 320, 330C L, 336, 336D L, 323D L, 320D GC, 320D2 L, 320C, 323, 336E, 336F LN, 320D L, 325D, 328D LCR, 325D L, 325C L, 323D, 336E L, 320C L, 325C, 340D L, 340D2 L, M325D L MH, 333, 320 GC, 323 GX, 329D L, 336F, 330C, 324D L, 320D2 GC, 330GC, 336D2 L, 320D FM, 336F L, 324D, 329E, 323D2 L, 326D L, 336D2 GC, 320E, 336 GC, 320D RR, 326, 330D2, 330 GC, 323GC, 330D, 330D2 L, 325, 323D2, 323 GC, 326 GC, 336E LN, 329E L, 320 GX, 335, 333 GC, 326GC, 320D2, 330, 336D2, 329D2 L, 336D, 320D, 326D2, 326D2 L, 329D2, 329D

Machine Model	320, 320 GC, 320 GX, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F LN, 340, 340D L, 340D2 L, 3512B, C7.1, M325D L MH
Equipment Type	Excavators, Generator Sets
Part Source	Genuine OEM

Machine Model

320, 320 GC, 320 GX, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F LN, 340, 340D L, 340D2 L, 3512B, C7.1, M325D L MH

Equipment Type

Excavators, Generator Sets

Part Source

Genuine OEM
