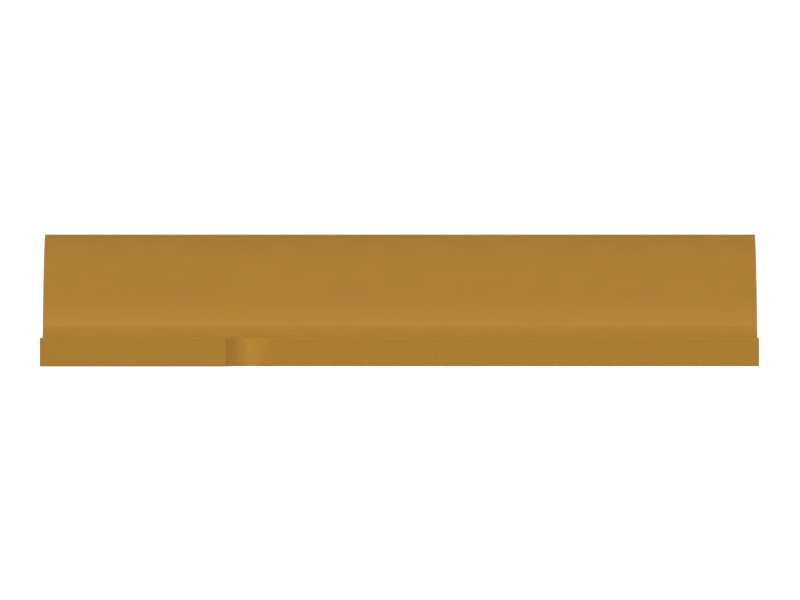

153-3946 Refrigerant Accumulator Mounting Bracket
Cat® Air Conditioning Refrigerant Accumulator Steel Mounting Bracket
Description
The refrigerant accumulator mounting bracket is used to mount the refrigerant accumulator in the air conditioning system. The accumulator is secured by this bracket, U-bolts and fasteners. A bracket is a component used to provide additional support and increase stability for a mechanical structure or system. It is used to hold individual components firmly in place and bolt them to the frame or body, helping ensure safe and efficient operation. Available in a variety of shapes, positions and alignments depending on the application.
Features
- Comes with 2 mounting slots for use with 3/8 fasteners
- Comes with 4 mounting slots for use with U-bolt clamps and 3/8" fasteners
- Made of steel to improve overall structural strength.
Applications
The refrigerant accumulator mounting bracket is used to support and secure the refrigerant accumulator tank in the air conditioning system.
Specifications
| Height | 28.5 mm (1.12 in) |
|---|---|
| Material Description | Steel |
| Length | 212 mm (8.35 in) |
| Thickness | 6 mm (0.24 in) |
| Width | 155 mm (6.1 in) |
Compatible Equipment
- Dozers: D10T, D10R, D10N, D9R, D9N
- Off-Highway Trucks: 789D, 793D, 785D, 785, 789, 793
