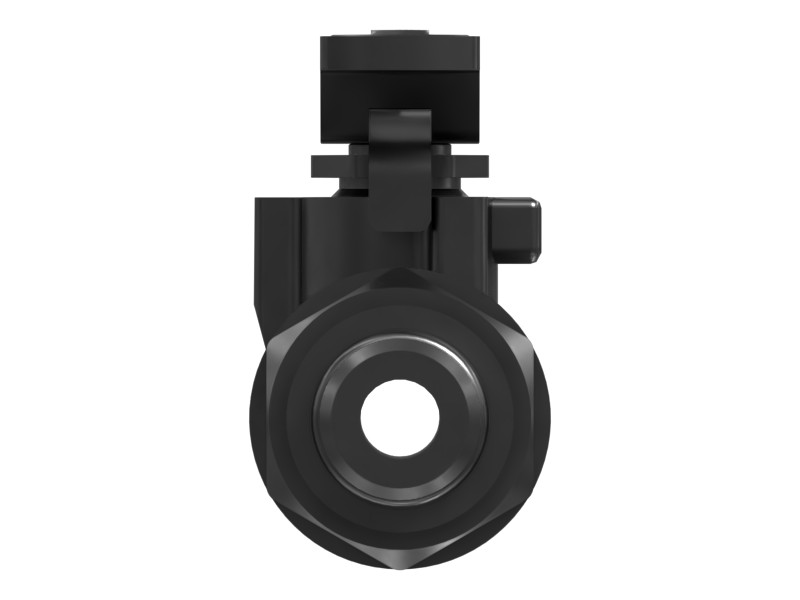

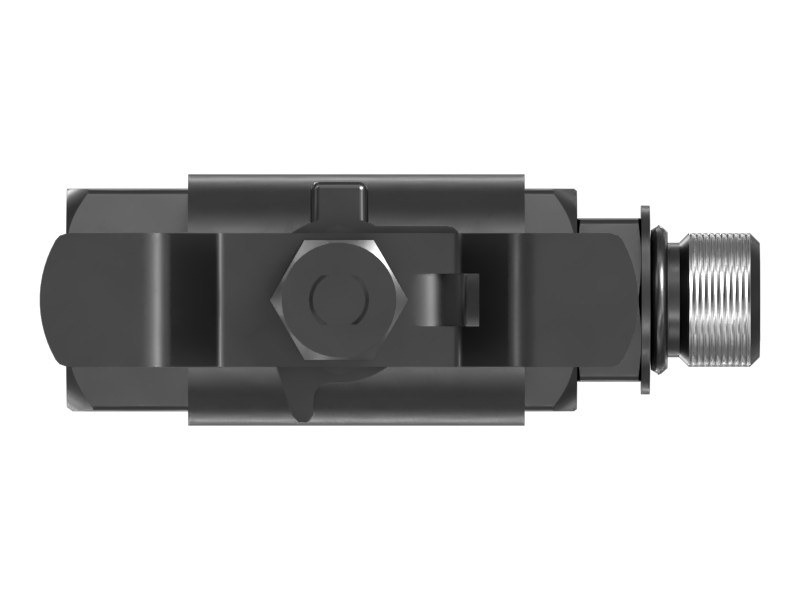

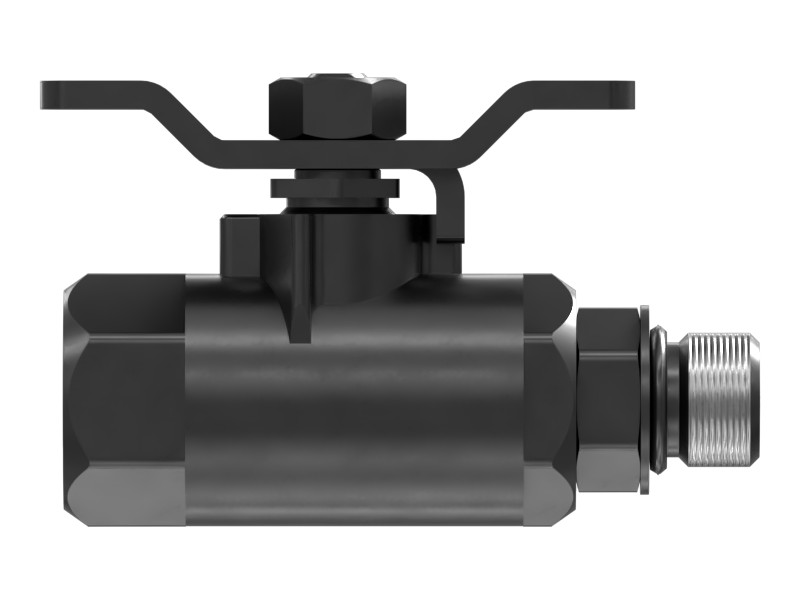

153-2767 STOR Check Ball Valve
Cat® Ball Valve, SAE -6 STOR Port to SAE -6 STOR Male Thread Stud, Length: 74 mm
Description
The ball valve (part number 153-2767) is an in-line component that can manually shut off fluid flow when the handle is turned a quarter turn. Cat valves are manufactured to precise technical specifications and are rugged, durable, reliable, and efficient.
Features
- Brass ball valve
- Maximum Working Pressure: 4310 kPa (600 psi)
- Operating Temperature Range: -17°C to 176°C
- Fitting Type: -6 STOR Female Thread Port (9/16-18); -6 STOR Male Thread Stud (9/16-18)
- Zinc Plated Steel Handle
Applications
General-purpose ball valve used in a variety of Cat lines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | -6 STOR Female Thread Port (9/16-18); -6 STOR Male Thread Stud (9/16-18) |
|---|---|
| Hex Size | 17; 24 (X2) mm (0.69; 0.94 (X2) in) |
| Length | 74 mm (2.92 in) |
| Material | Brass |
| Thread Size | None mm (9/16-18 in) |
| Type | Ball Valve |
Compatible Equipment
- Generator Sets: G3516C, G3516
- Track Loaders: 826H, 826G, 982, 826K, 824G
- Compactors: 825K, 824K
- Engines: C32, C27, C175-16
- Wheel Loaders: 980M, 982M
- Off-Highway Trucks: 7495
- Asphalt Pavers: AD45
- Skid Steer Loaders: 299D3 XE
Additional information
| Machine Model | 299D3 XE, 7495, 824G, 824K, 825K, 826G, 826H, 826K, 980M, 982, 982M, AD45, C175-16, C27, C32, G3516, G3516C |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Skid Steer Loaders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
