Description

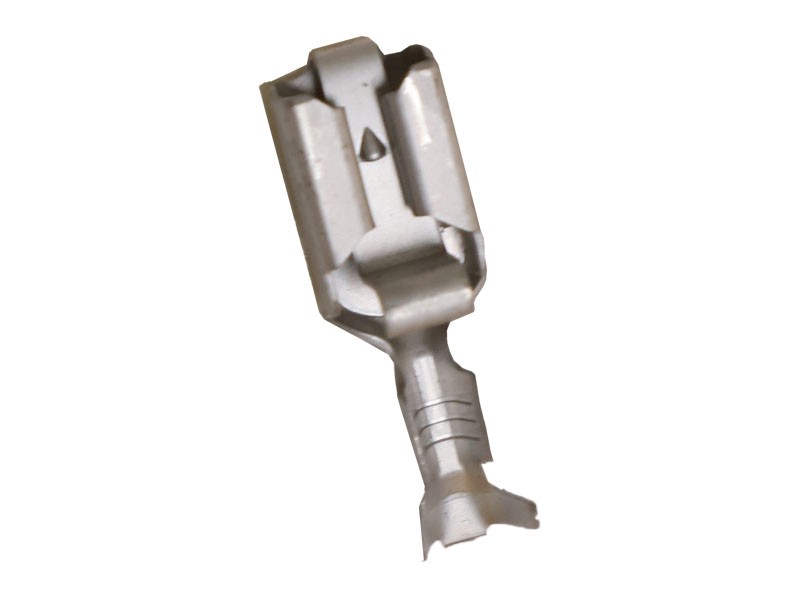

Cat Female Blade Terminals are used in electrical connectors. Cat Male Blade Terminals are inserted into the Cat Female Terminals on the mating connector to make the electrical connection.
Features
- Crimp-style connector receptacle
- Integrated latch
- Wire Size (AWG): 20-14
- Tin Plated
- Easy to connect and disconnect
Applications
Cat blade terminals provide a reliable mating connection between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Wire Gauge | 20-14 AWG |
|---|
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B, C7.1
- Wheel Excavators: M315GC
- Mini Excavators: 307, 302CR, 307C, 306, 307E2, 305.5E, 308E2, 307D, 305.5, 305E2, 303.5C, 305.5E2, 303.5E, 301.7CR, 307B, 301.5, 303.5D, 305.5 GC
- Excavators: 316 GC, 313 GC, 374, 330D L, 305E2 CR, 349F L, 313, 320 GX, 350, 323, 320, 320 GC, 323GC, 333, 340, 315 GC, 336, 320D FM, 325, 320D L, 355, 352, M325D L MH, 313D2, 323D2 L, 330 GC, 313F LGC, 329E L, 345 GC, 335, 320D2 L, 301.6, 301.8, 395, 336D2 L, 323 GX, 323 GC, 336 GC, 330GC, 315, 336E, 336D L, 312D2, 311C, 315D L, 336E H, 312D L, 336F, 329D L, 312C L, 320C, 311D LRR, 312D, 336E L, 320D2 GC, 320D GC, 315F LCR, 320D3, 312E, 325C, 336F L, 329E, 336F LN, 324D, 320E, 325D, 330D2 L, 323D L, 312E L, 325D L, 328D LCR, 324D L, 315C, 336D2 XE, 330D2, 318D2 L, 336E LH, 312D2 GC, 335F LCR, 323D, 330D, 312D2 L, 313D, 312F, 345D, 312 GC, 326GC, 326, 313F L, 314D CR, 313D2 GC, 323D2, 314D LCR, 336E LN, 340D2 L, 385C, 349, 349D L, 390F, 374F L, 349E, 349E L, 345D L, 349E L VG, 385C L, 385C FS, 390D, 352F, 365C, 365C L, 340D L, 326 GC, 316 GX, 312 GX, 320D RR, 318D L, 336F L XE, 312C, 350MHPU, 314C, 313 GX, 333 GC, 313D2-GC, 336D2 GC, 3101, 318D2, 326D L, 320D, 320D2, 330, 349D2 L, 329D2 L, 326D2 L, 336D2, 306E2, 303.5E2 CR, 308E, 326D2, 308D, 303C CR, 336D, 305C CR, 307E, 305, 306E, 349D2, 374D L, 374F, 390F L, 390D L, 349D, 329D, 329D2
- Skid Steer Loaders: 313D2 LGP
