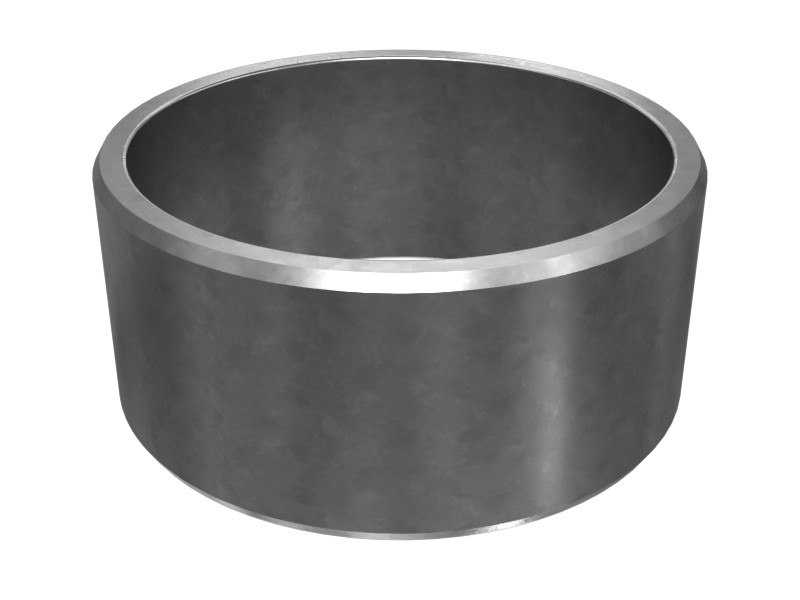

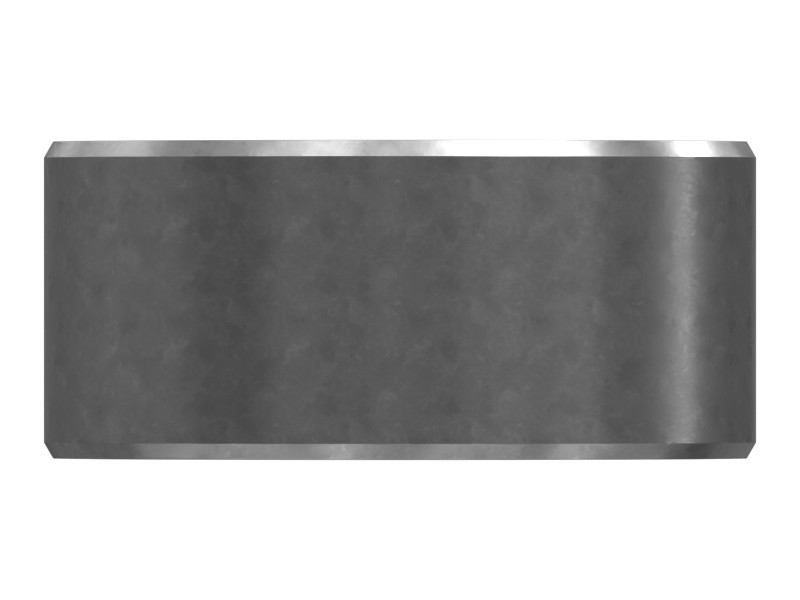

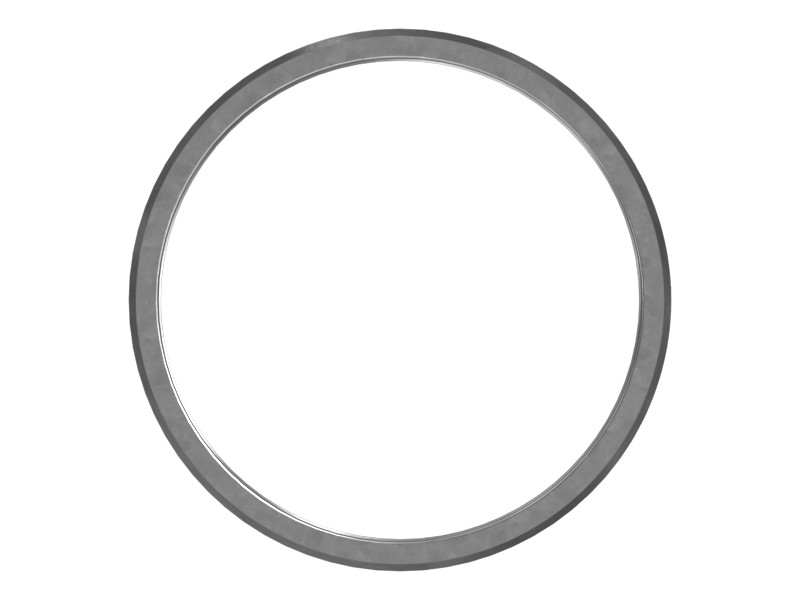

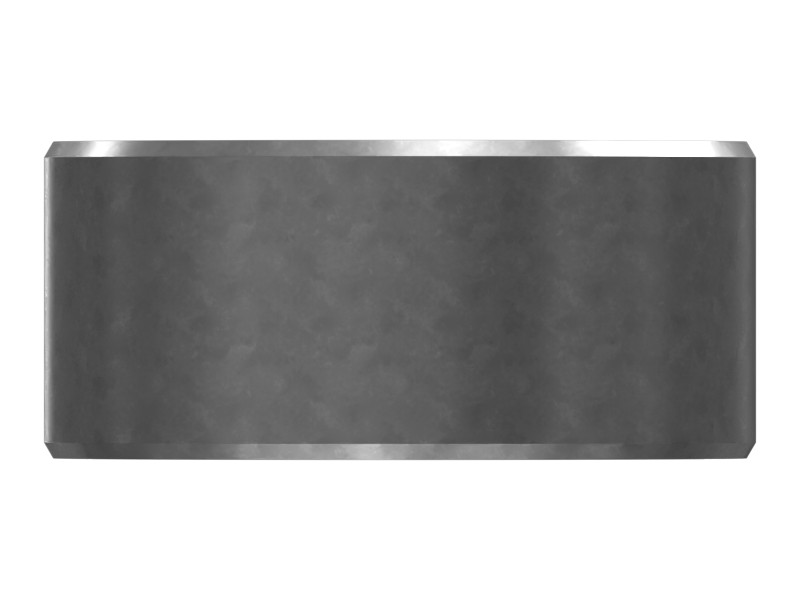

150-2511 39.994 mm ID Eccentric Housing Sleeve
39.994 mm ID Eccentric Housing Sleeve for Cat® Vibratory Systems
Description
The sleeve is designed to be used as the inner raceway of a roller bearing or on its own on a shaft.
Features
- Material: Steel
- Inside Diameter: 40 mm (1.57 in)
- Outside diameter: 45 mm (1.77 in)
- Width: 20.0 mm (0.787 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Cross Hole | No |
|---|---|
| Unique Features | No |
| Ferrule Inside Diameter | 39.994 mm (1.575 in) |
| Ferrule Outside Diameter | 44.997 mm (1.772 in) |
| Overall Length | 20 mm (0.787 in) |
| Outside Diameter | 44.997 mm (1.7715 in) |
| Inside Diameter | 39.994 mm (1.5745 in) |
| Width | 20 mm (0.787 in) |
Compatible Equipment
- Compactors: CS12, CS-56, CS78B, CP54B, CS-54, CS56B, CS-563E, CS68B, CS74B, CS54B, CP12 GC, CP56B, CS-583D, CS79B, CP11 GC, CS11, CS-533C, CS12 GC, CS-54B, CS-533E, CS64B
