Description

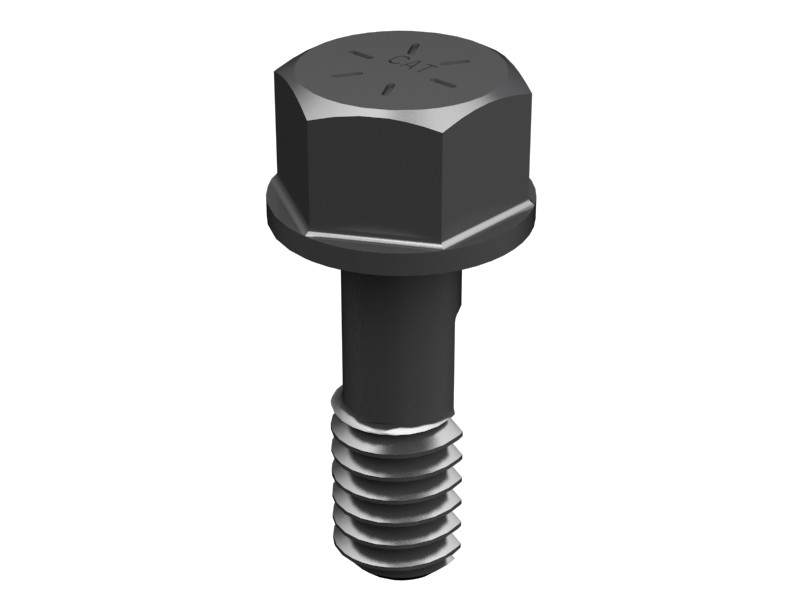

Cat bolts are used to mount and secure piston cooling jets to the connecting rods of heavy-duty equipment.
Features
- Material: Steel
- Hex Size: 14.14
- Thread Size: 3/8-16-2A
- Bolt Length: 36.41
Applications
Service part for the piston and connecting rod assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Locking Feature | None |
|---|---|
| Length | 36.41 mm (1.43 in) |
| Hex Size | 14.14 mm (0.56 in) |
| Material | Carbon Steel |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Coating | None |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Thread Size | 0.375 mm (0.015 in) |
| Bolt Length | 26.5 mm (1.043 in) |
| Bolt Type | Hex Flange Head |
| Handle Length | 14.2 mm (0.559 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Track Loaders: 824C, 990K, 824G, 826G, 992, 993
- Wheel Excavators: MD6250, MD6310
- Engines: C32, C27
- Dozers: D10, D9R, D11R, D11T, D10N, D11, D10R, D10T2, D10T, D8L, D8N, D9L, D9N, D8R, D6T
- Excavators: 6015, 6030, 637G, 637E, 6015B, 6020B, 6040
- Wheel Loaders: 992K
- Off-Highway Trucks: 773E, 777E, 773D, 771D, 777D, 775G, 773F, 777, 773
- Asphalt Pavers: AD63, AD45
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 3406B, 3406C, 6015, 6015B, 6020B, 6030, 6040, 637E, 637G, 771D, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 824C, 824G, 826G, 990K, 992, 992K, 993, AD45, AD63, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, D8L, D8N, D8R, D9L, D9N, D9R, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
