Description

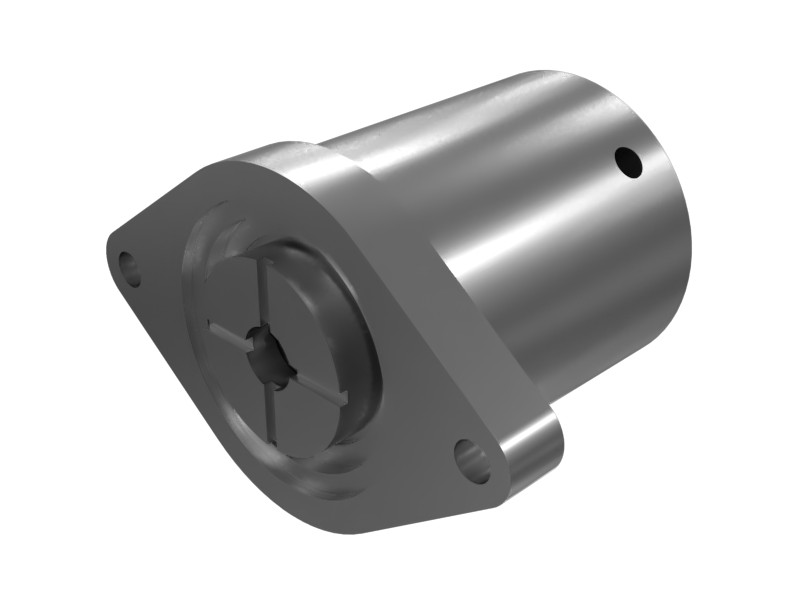

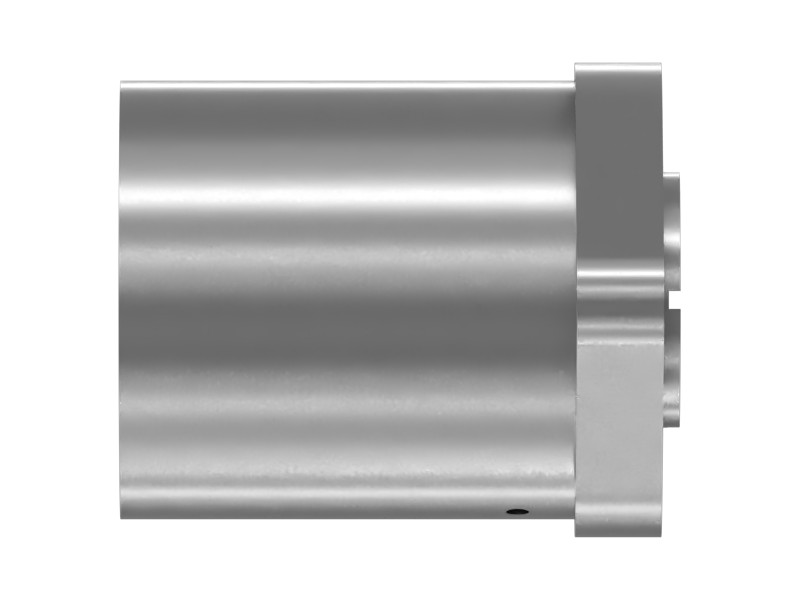

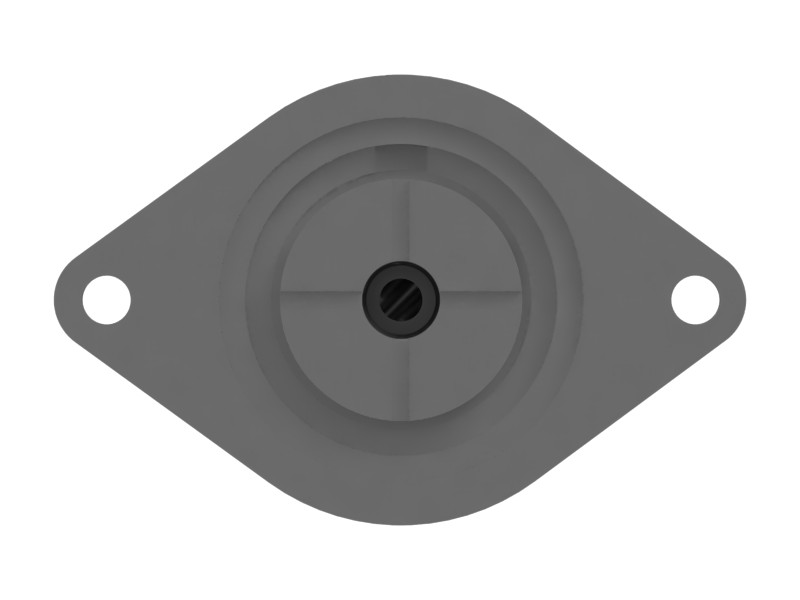

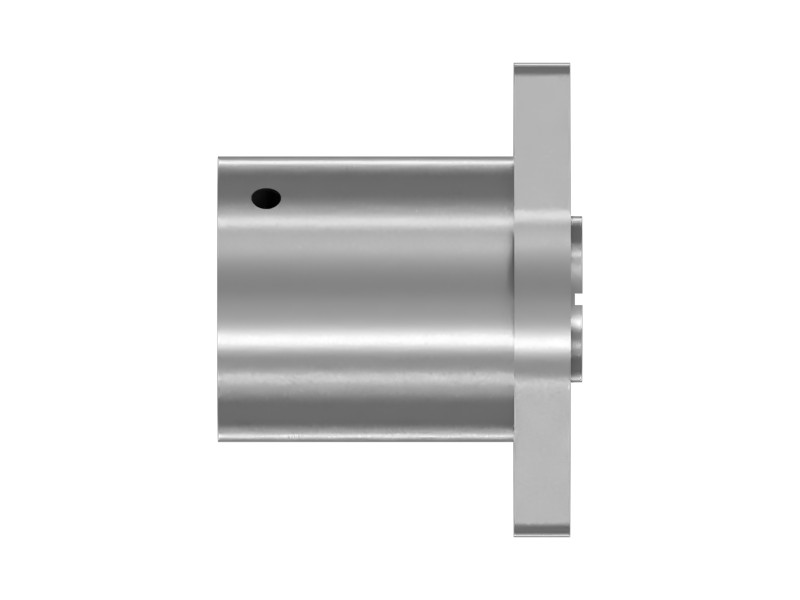

The air cylinder assembly is used to pneumatically actuate the diverter valve.
Features
The Cat® air cylinder assembly is used to actuate the spool valve in the power train diverter valve for full sealing and full functionality.
Recommended Applications:
The Cat air cylinder assembly is used for service and repair of the power train diverter valve.
Specifications
| Material | Carbon Steel |
|---|---|
| Outside Diameter | 76.2 mm (3 in) |
| Length | 97.15 mm (3.82 in) |
| Width | 126.62 mm (4.98 in) |
Compatible Equipment
- Off-Highway Trucks: 789D, 793D, 773E, 777E, 785D, 773D, 777D, 785, 789, 793, 773
