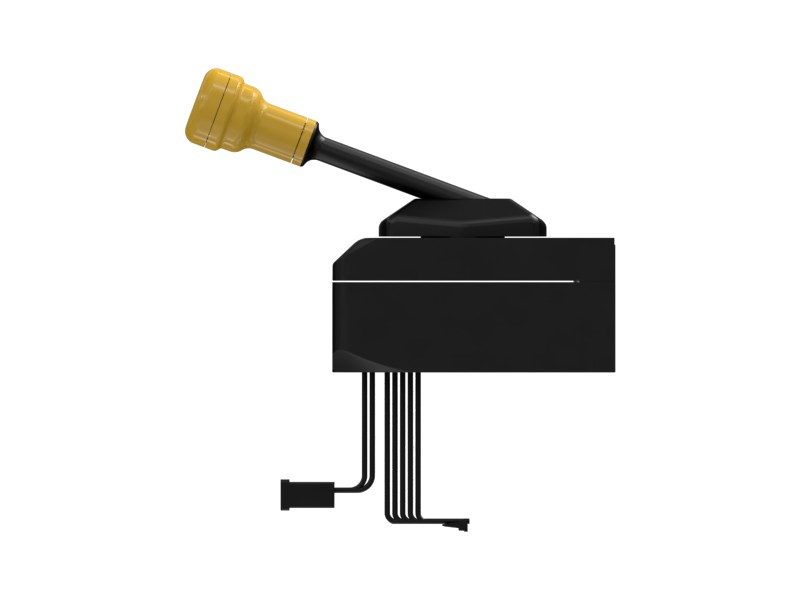

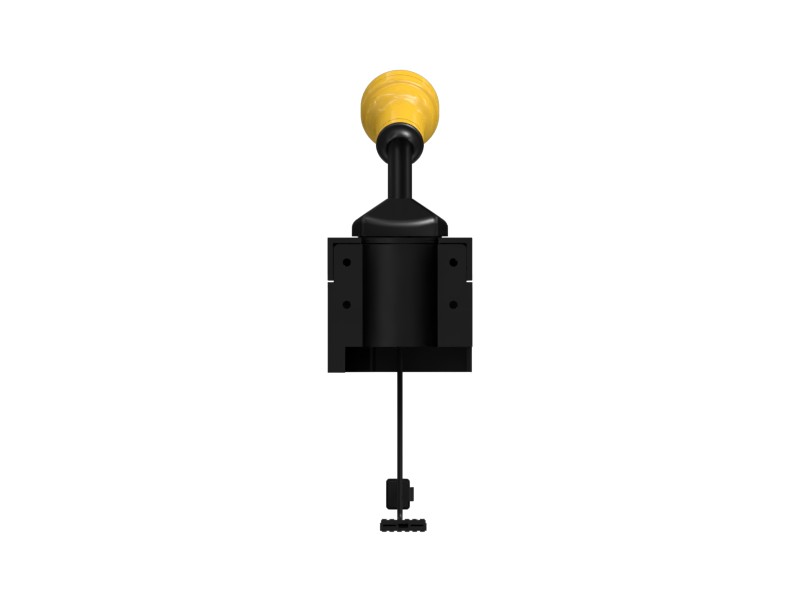

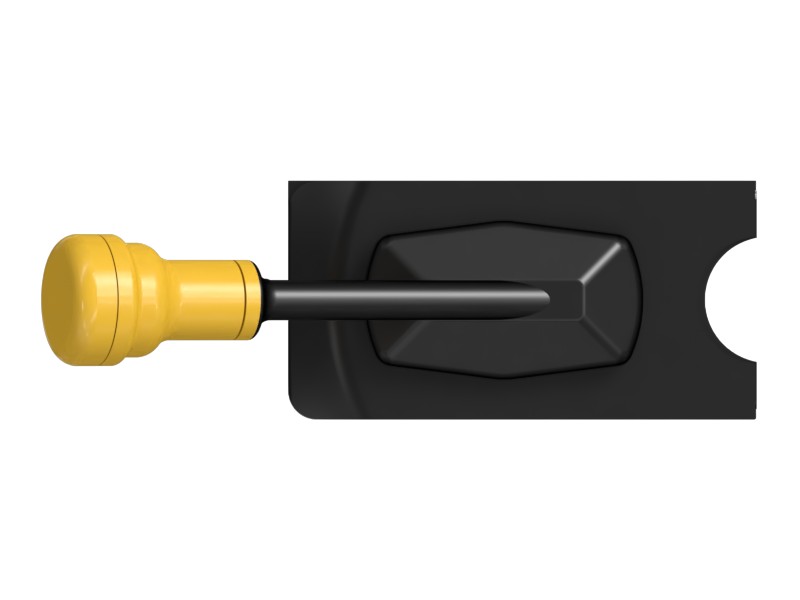

149-2331 Transmission Control Assembly
Cat® Transmission Control Assembly, Overall Length x Width x Height: 250.6 x 84 x 177.3 mm
Description
The transmission control module in the machine (such as 149-2331) is an electronic control unit that manages and controls the machine transmission system. It receives input signals from various sensors in the machine, such as the throttle position sensor, speed sensor, and pressure sensor, and then uses this information to control the hydraulic system and transmission.
Features
- Overall Length: 250.6 mm (9.866 in).
- Overall Width: 84 mm (3.307 in).
- Overall Height: 177.3 mm (6.980 in).
Applications
- Mostly used for transmission control assemblies on the console.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Overall Height | 177.3 mm (6.98 in) |
| Overall Length | 250.6 mm (9.87 in) |
| Overall Width | 84 mm (3.31 in) |
Compatible Equipment
- Wheel Excavators: IT14G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
