Description
Cat® springs come in a variety of strengths and sizes to suit specific applications. Our springs are specially designed to deliver excellent performance in many applications, achieving optimal spring rate and assembly load. Cat springs are tested in-house under specific application conditions and have a documented performance history, ensuring consistent component loads and excellent machine reliability and operation for your peace of mind. Cat springs are built to exact specifications to ensure durability, reliability and high productivity over the life of the machine. Cat springs help you build, maintain or repair with confidence. No one else knows your equipment like we do – you can trust Cat.
Features
- Springs meet or exceed current standards and material grades.
- ROHS compliant
- Performance-based
Applications
- Machine and shop applications
Specifications

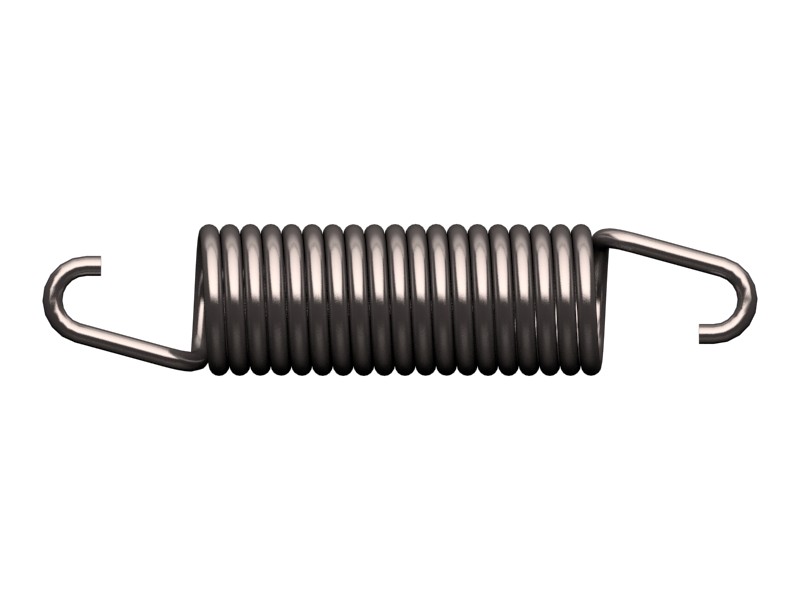

| Spring Type | Tension Type |
|---|---|
| End Orientation | 180° |
| Outside Diameter (OD) – A | 1 1/4 in |
| Coil Type | Mechanical Hook |
| Material Description | Steel |
| Wire Diameter – C | 4.11 in |
| Coating | Paint |
| Remarks | Initial Tension: 110, Assembled Length: 160, Load at Assembled Length: 245, Spring Rate NMM: 6.74, Total Coils: 20.5 |
| Length – B | 5 1/2 in |
| Material | Carbon Steel |
Compatible Equipment
- Motor Graders: 12K, 140K, 120H, 140H, 12H, 160K
