Description

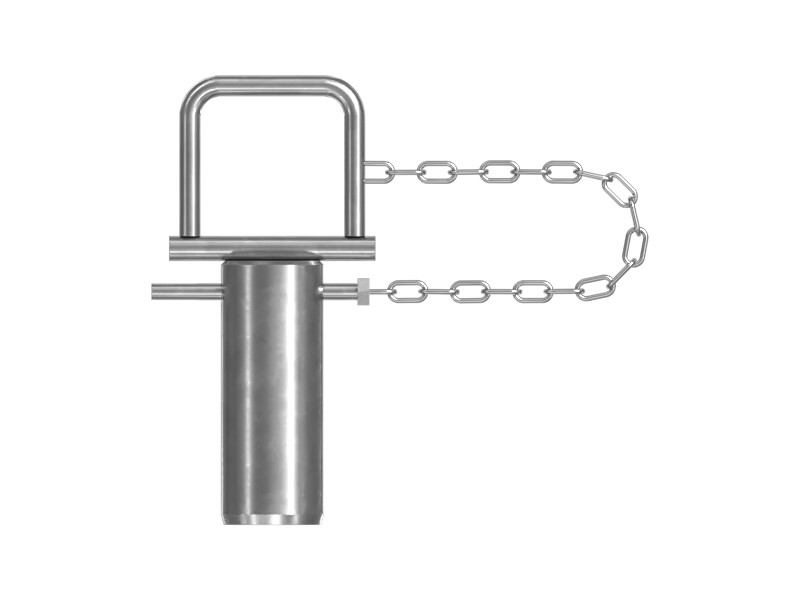

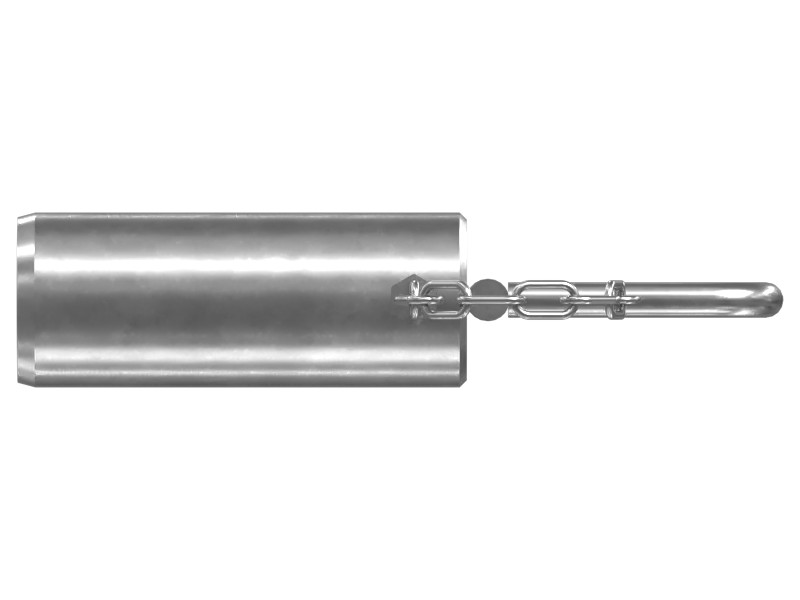

A link pin used in a frame is a mechanical fastener that provides a secure connection between different components of the frame. It is commonly used in applications that require rotational movement or the connection of additional components. Proper selection and sizing of the link pin is important to ensure a correct fit and load-carrying capacity.
Attributes
- Helps maintain frame alignment and stability
- Ensures a secure and accurate fit
- Built to exact specifications for durability and reliability
Applications
Link pins are used in the undercarriage frame to secure and align the different components in the system and provide stability to the system.
Specifications
| Material | — |
|---|---|
| Outside Diameter | 49.8 mm (1.961 in) |
| Puller Thread | No |
| Effective Length | 128 mm (5.039 in) |
| Internal Grease Passage Hole | No |
Compatible Equipment
- Excavators: 330D L, 336D L, 330C, 330D2, 329D L, 330D, 336F, 325D, 345D, 340D2 L, 349D L, 336, 323D L
