Description

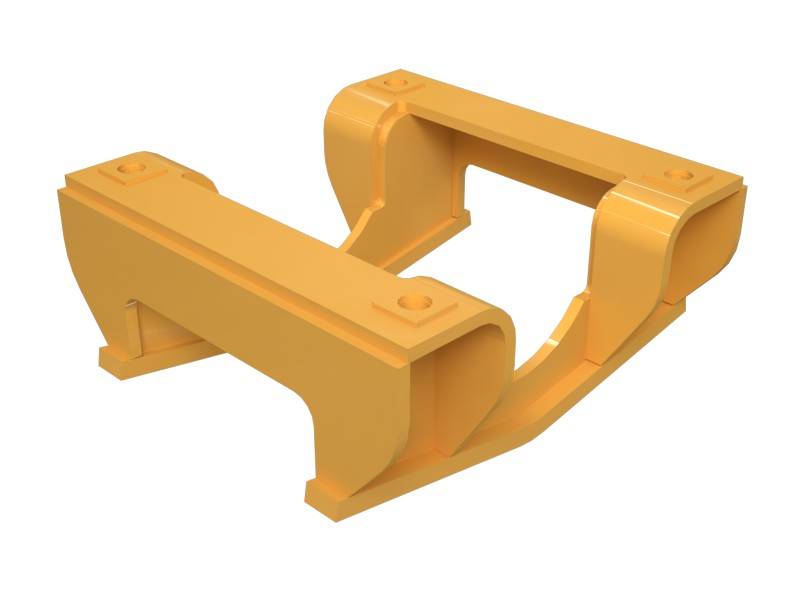

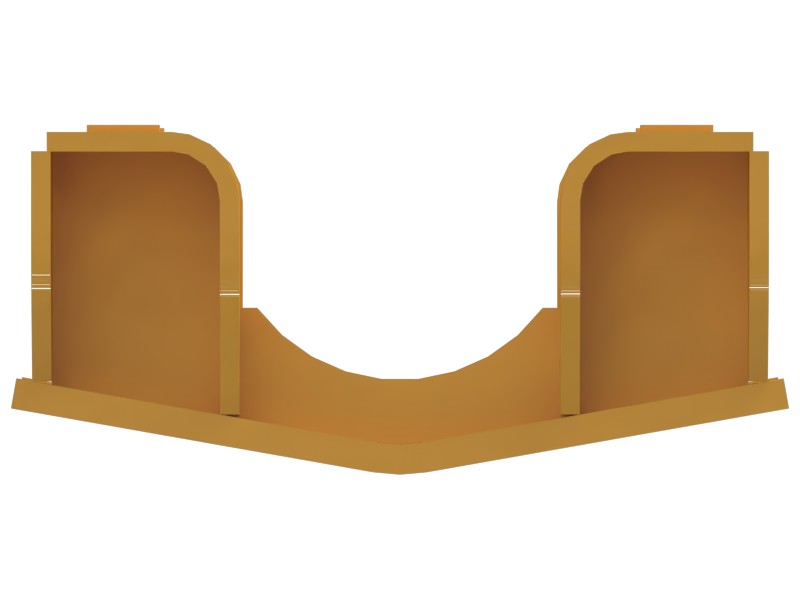

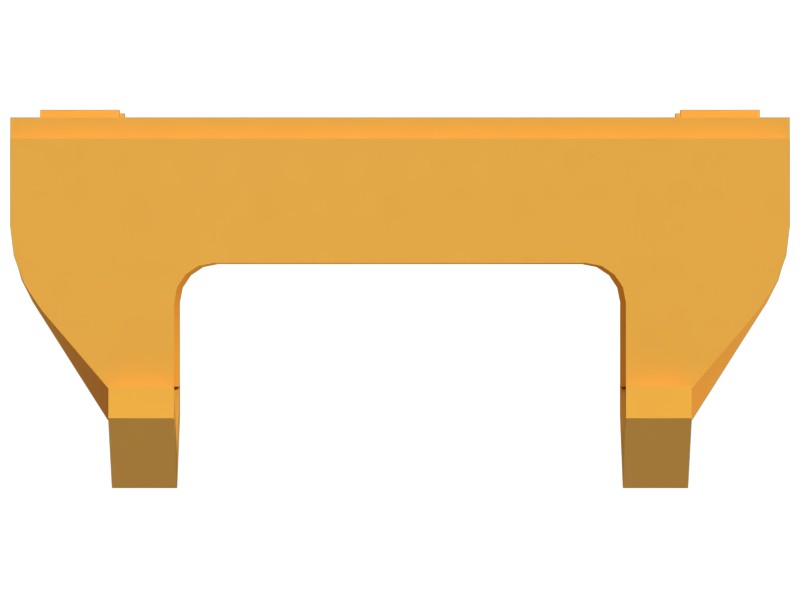

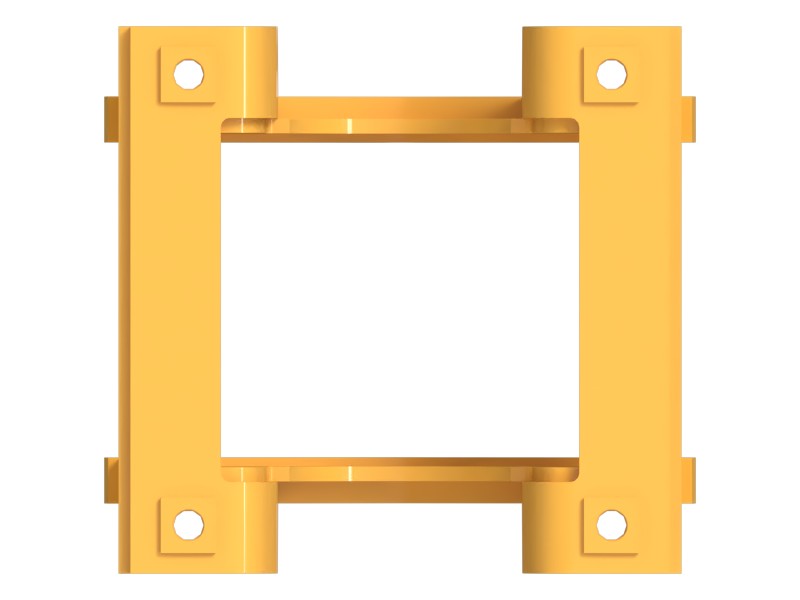

The track center guiding guard, also known as a track guard or track chain guard, is a protective component used in tracked machines and equipment. Its main purpose is to shield and protect undercarriage components (especially the track chain) from external impact, debris, and damage during operation in rough and abrasive environments.
Attributes
Prevents damage to the track.
Withstands impact and resists wear.
Reduces wear on track components.
Applications
The track center guiding guard is used to shield and protect undercarriage components (especially the track chain) from external impact, debris, and damage during operation. Widely used on Cat® 365B, 365C, 365D, 373, 374, 374D, 374E, 374F, and 390F Excavators, and 365C and MH3275 Material Handlers.
Specifications
| Undercarriage System | HD |
|---|---|
| Track Frame Side | Left And Right |
| Shroud Type | Roller Guard Short Center |
| Shroud Position | Center |
| Material | Structural Steel |
| Height | 82.6 mm |
| Weight | 76.42 kg (168.48 lb) |
| Length | 454.7 mm |
| Chassis Width | 165.1 mm |
Compatible Equipment
- Excavators: 374, 365C L, 374F L, 365B, 365C, 365B L, 385C, 374D L, 374F
