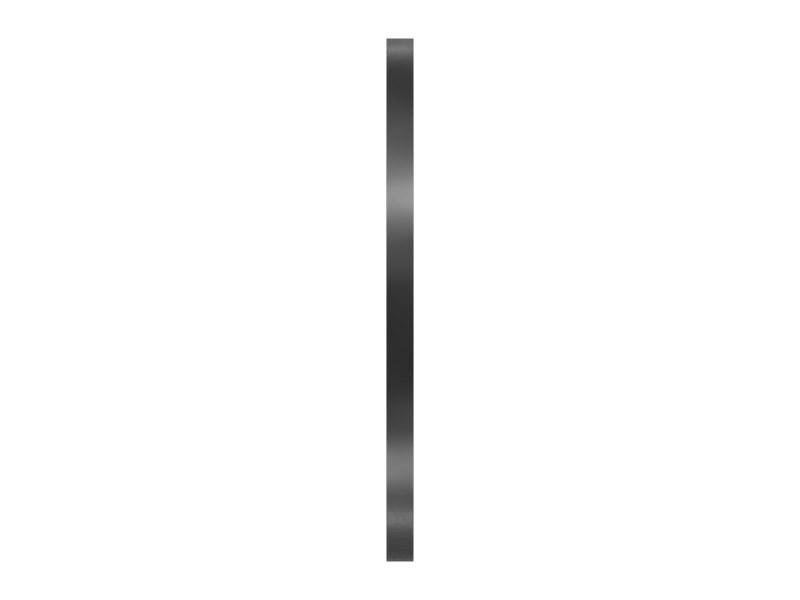

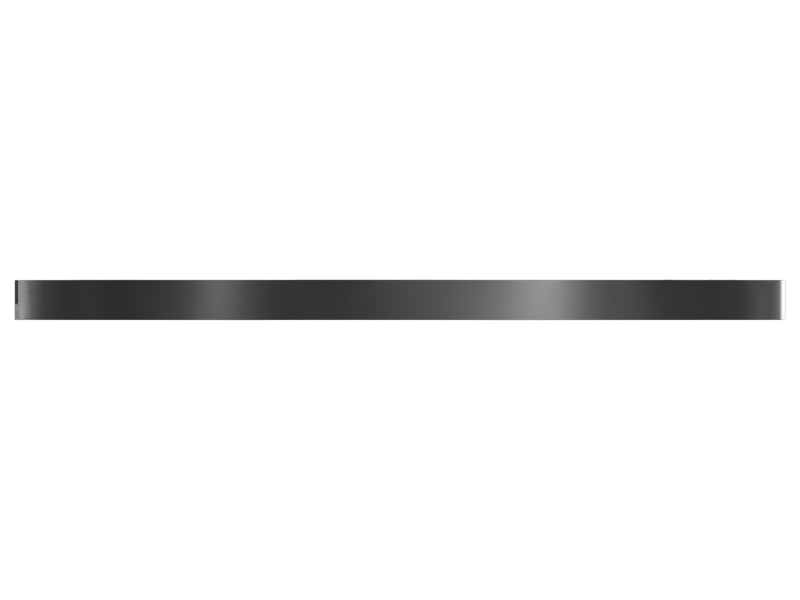

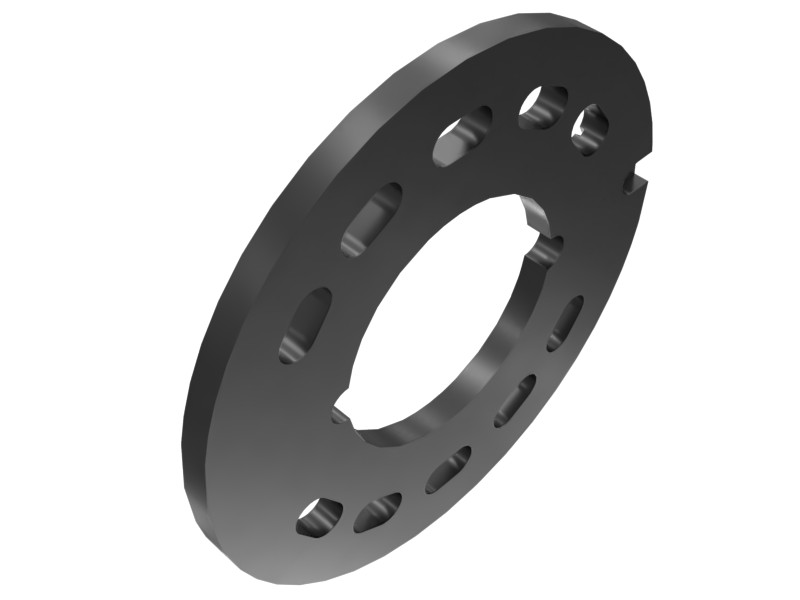

148-1219 5 mm Thick Rotating Pump Valve Plate
Cat® 5 mm Thick Rotating Pump Valve Plate
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The rotating pump valve plate is used to control oil flow in a rotary or piston pump. This valve plate is usually located between the cylinder block and the valve plate retainer and contains a series of ports and valves to control oil flow through the pump. This valve plate usually has several holes or ports that allow oil to flow into and out of the pump cylinders.
Features
- Provides precise fluid control without any leakage
- Built to exact specifications for durability and reliable performance
Applications
The rotating pump valve plate is used to control oil flow in a rotary pump.
Specifications
| Inside Diameter | 45.28 mm (1.78 in) |
|---|---|
| Material | Carbon Steel |
| Outside Diameter | 97.5 mm (3.84 in) |
| Material Description | Steel |
| Overall Length | 4.72 in |
| Thickness | 5 mm (0.2 in) |
| Thread | 5/16-18 |
| Weight | 0.11 lb |
Compatible Equipment
- Motor Graders: 349 GC
- Compactors: CS-56, CS-563E, CS-533C, CS-54, CS-533E
- Dozers: D8
- Excavators: 340, 350, 352, 355, 350MHPU, 336
