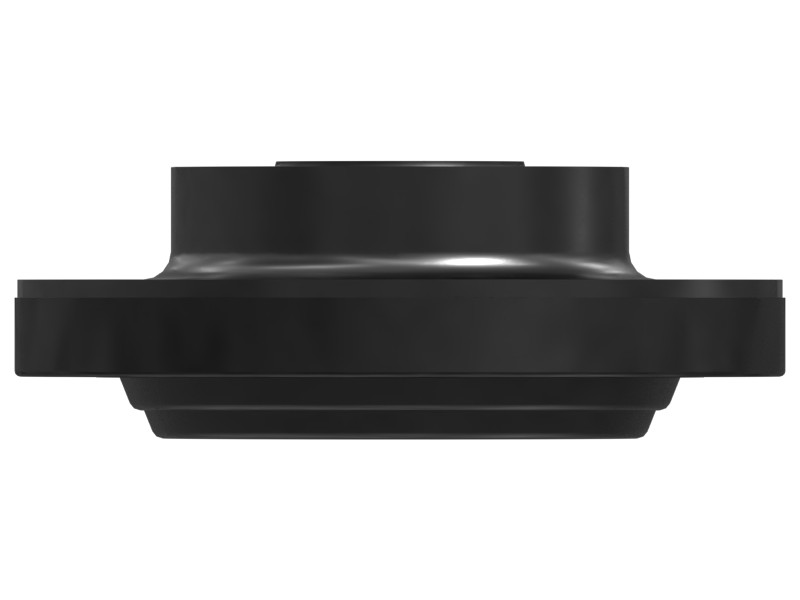

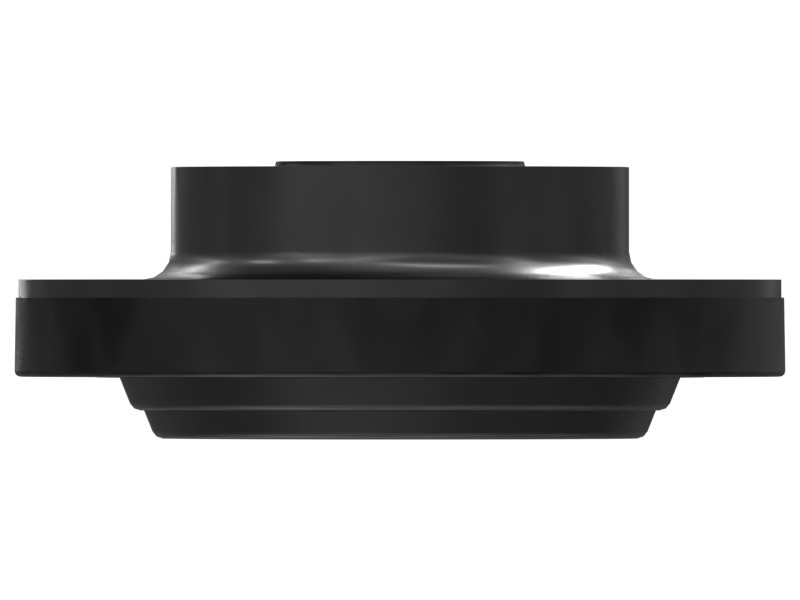

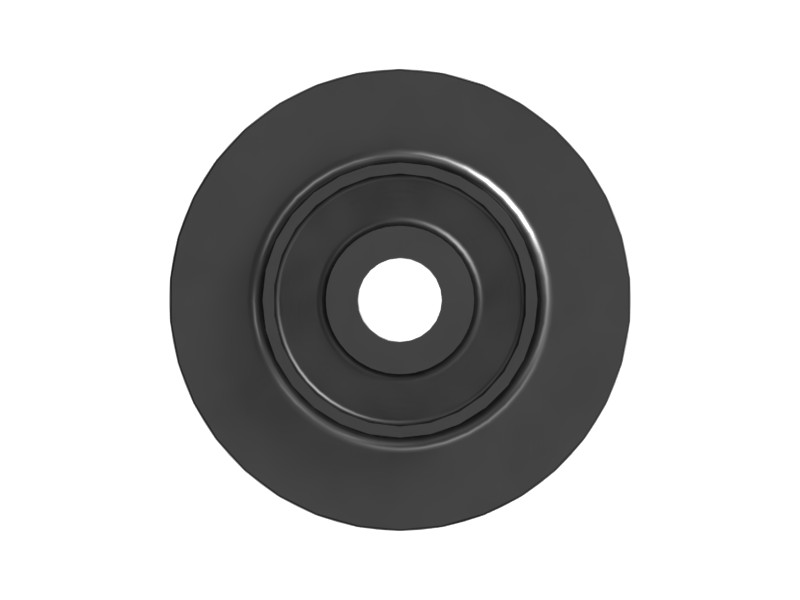

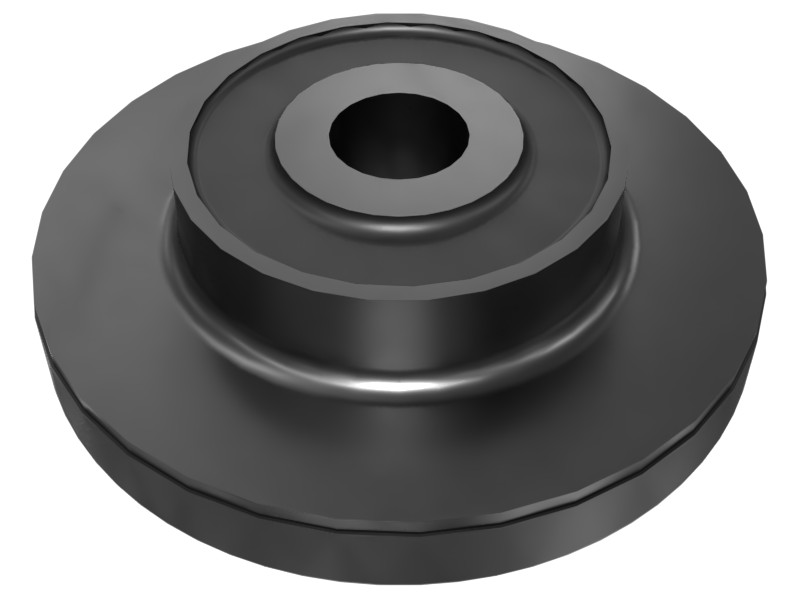

147-6983 137 mm OD Flexible Rubber Mount

Description

Isolation mounts are used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise). Two-piece mounts are very versatile, including symmetric (two mounts) and asymmetric (mount plus pad) designs. They are installed in holes in the support plate and bolted through a center sleeve, and can be attached or loose.

Features

Connecting Sleeve
Two-Piece Symmetric Mount
Inside Diameter: 25 mm
Outside Diameter: 137 mm
Standard Bolt Size: M24

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Material	Carbon Steel

Compatible Equipment

Excavators: 374, 349F L, 349, 352, 395, 385C L, 345C, 345C L, 345D L, 365B, 385B, 349D L, 365C L, 349E L, 345D, 374F L, 352F, 390F, 349E L VG, 385C, 385C FS, 365C, 390D, 365B L, 349E, 349D2 L, 374F, 349D, 349D2, 390F L, 374D L, 390D L

Machine Model	345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 365B, 365B L, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395
Equipment Type	Excavators
Part Source	Genuine OEM

Machine Model

345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 365B, 365B L, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395

Equipment Type

Excavators

Part Source

Genuine OEM
