147-6604 6.6 mm ID Support Ring

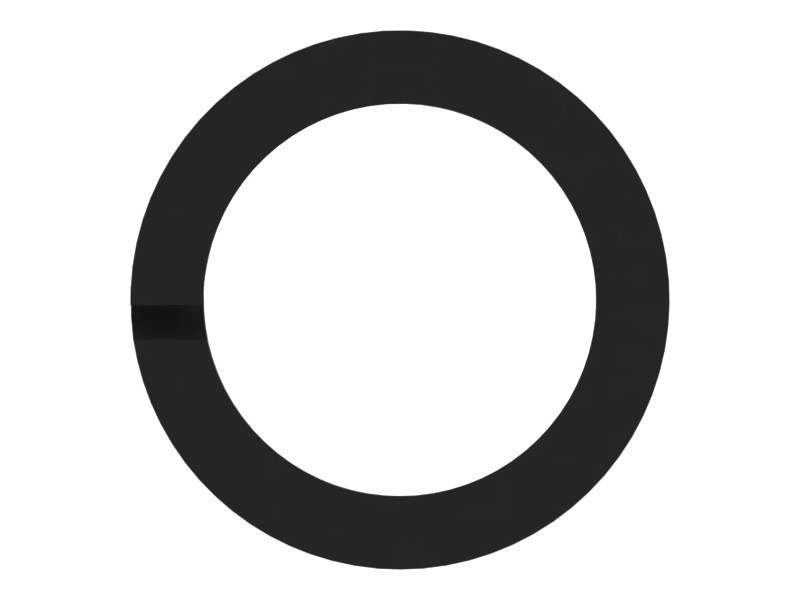

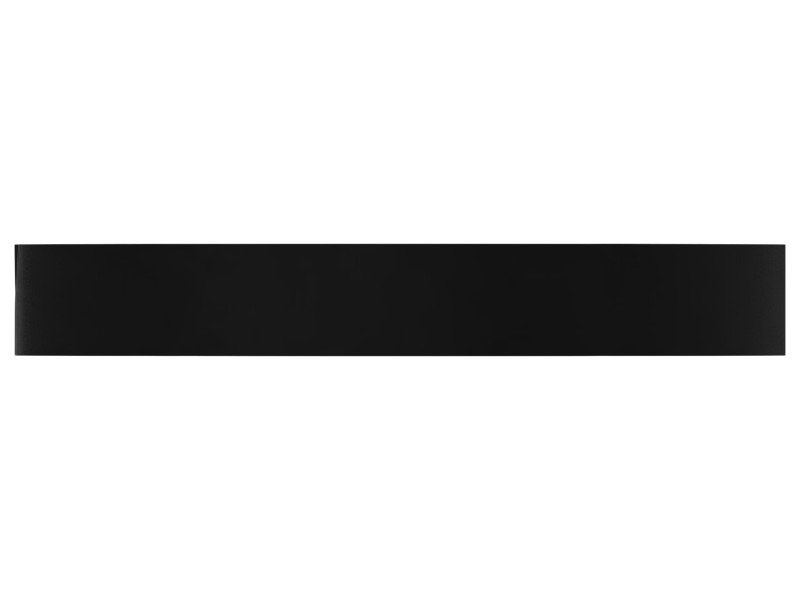

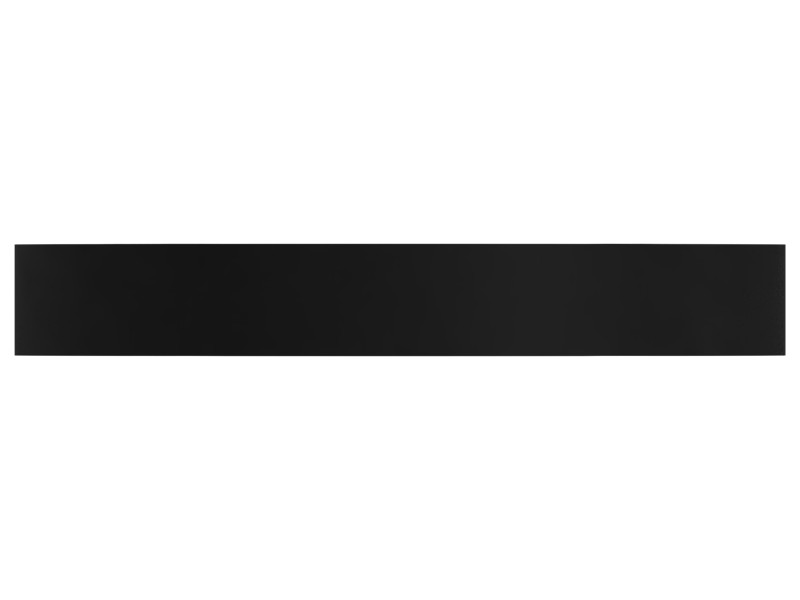

Cat® 6.6 mm ID plastic support ring with cross cut, used in hydraulic valves
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Backup rings can prevent seal extrusion in high-pressure applications and help protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components, significantly improving the life and performance of sealing systems in high-pressure applications. Depending on application requirements, they can be solid or split rings.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Cat® sealing systems go through a robust design, testing and validation process. Protect your investment with the latest Genuine Cat® seals.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material | PTFE – Polytetrafluoroethylene |
|---|---|
| Seal/O-Ring Type | Split |
| Axial Thickness | 1 mm |
| Radial Thickness | 1 mm |
| Inside Diameter | 7 mm (0.26 in) |
| Cross-Section Width | 1.3 mm (0.05 in) |
| Cross-Section Height | 1.2 mm (0.05 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Material Description | PTFE provides excellent performance in air, engine oil, diesel fuel and coolant applications, but is prone to installation damage and debris. Suitable for ultra-high-temperature applications. |
Compatible Equipment
- Motor Graders: 120, 12H, 140H, 12K, 140K, 140G, 120H, 140 GC, 16H, 160K
- Track Loaders: 993, 995, 826K, 824G, 834H, 990K, 826H, 826G, 992, 994K
- Compactors: 825K, 824K, 815, 816, 814
- Dozers: D8, D9R, D11R, D11T, D6R, D8R, D6R II, D6T, D7R II, D7R, D6R III, D6R XL, D8T, D6R LGP, D8N
- Excavators: 312D, 311D LRR, 312D L, 314D LCR, 314D CR, 313F L, 320B, 312E L, 312C L, 312C, 312D2, 313F LGC, 312D2 GC, 314C, 312D2 L, 312E, 313D, 313D2, 325B L, 311C, 315F LCR, 313D2 GC, 365C, 6015B, 385C, 385C L, 365B, 385B, 385C FS, 365B L, 365C L, 390D, 6015, 312F, 120 GC, 374D L, 390D L
- Wheel Loaders: 986K, 992K
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 160K, 16H, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315F LCR, 320B, 325B L, 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 6015, 6015B, 814, 815, 816, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 986K, 990K, 992, 992K, 993, 994K, 995, D11R, D11T, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R, D7R II, D8, D8N, D8R, D8T, D9R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors |
| Part Source | Genuine OEM |
