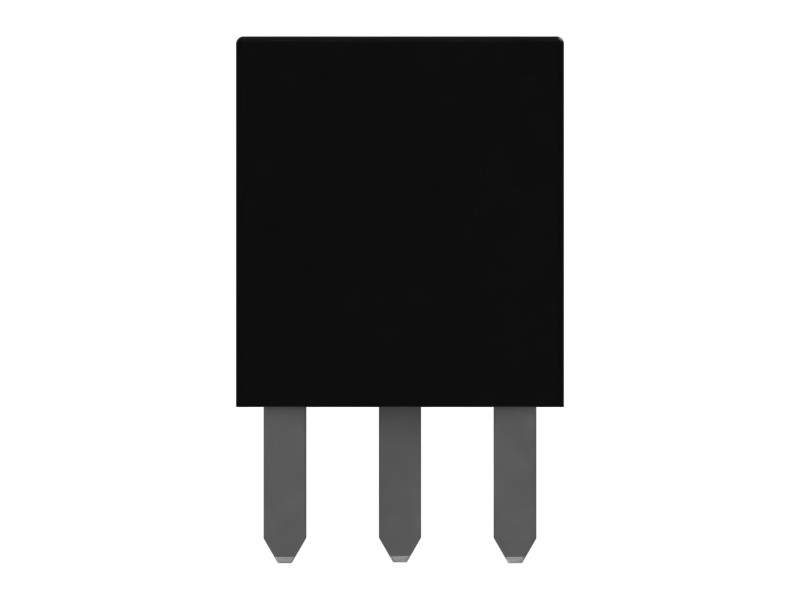

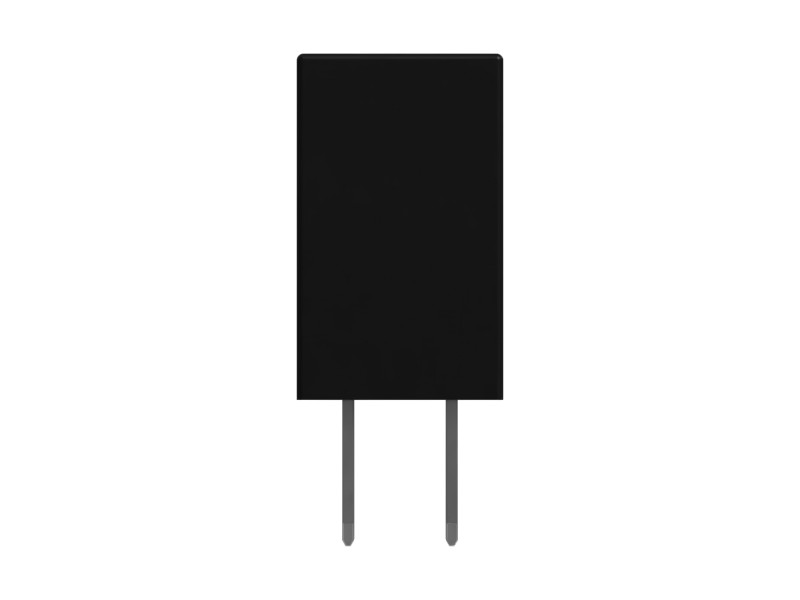

146-9439 12 Volt Resistor Suppression Relay

Description

When current is applied to a Cat relay, it energizes an electromagnet. The electromagnet closes the open contacts to energize the circuit. Meets your quality expectations in demanding working environments.

Features

Material: Polyolefin
Voltage: 12 VDC
5-Head Insert
Environmentally sealed
Highly durable

Applications

Used to turn components on or off in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Height	37 mm (1.46 in)
Material Description	Polyolefin
Voltage	12 VDC Volts
Length	23 mm (1.03 in)
Width	15.5 mm (0.61 in)
Material	Polyolefin Plastic

Compatible Equipment

Generator Sets: C4.4
Cold Planers: SE50 VT
Compactors: CP12 GC, CS12 GC, CB-64B, CB-34B, CB-44B, CB-24B, CC-34B, CW-16, CB-66B, CS12, CS11, CP11 GC, CB2.7 GC, CB2.5 GC, CC2.7 GC, CS7, CB16, CB-36B, CB2.9, CW-34, CB2.7, CB2.5, CB10, CB13, CB15
Engines: C32
Compact Track Loaders: 279D3, 299D3
Dozers: D11T, D3K2 LGP, D10T, D5K2 XL
Mini Excavators: 308, 306, 310, 308.5, 301.5
Excavators: 305 CR, 416E, 428F, 301.8, 301.6, 305, 307.5
Asphalt Pavers: AP355F, AP300F
Skid Steer Loaders: 232D3, 226D3, 226B3, 239D3, 249D3, 236D, 216B3, 226B, 262D3, 246C, 262C, 246D, 272D3 XE, 246D3, 289D3, 236D3, 242D3, 232D, 279C, 272D3, 236B3, 262D, 259D3, 299D3 XE

Machine Model	216B3, 226B, 226B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 301.5, 301.6, 301.8, 305, 305 CR, 306, 307.5, 308, 308.5, 310, 416E, 428F, AP300F, AP355F, C32, C4.4, CB-24B, CB-34B, CB-36B, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, CS7, CW-16, CW-34, D10T, D11T, D3K2 LGP, D5K2 XL, SE50 VT
Equipment Type	Excavators, Mini Excavators, Compact Track Loaders, Skid Steer Loaders, Dozers, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

216B3, 226B, 226B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 301.5, 301.6, 301.8, 305, 305 CR, 306, 307.5, 308, 308.5, 310, 416E, 428F, AP300F, AP355F, C32, C4.4, CB-24B, CB-34B, CB-36B, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, CS7, CW-16, CW-34, D10T, D11T, D3K2 LGP, D5K2 XL, SE50 VT

Equipment Type

Excavators, Mini Excavators, Compact Track Loaders, Skid Steer Loaders, Dozers, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
