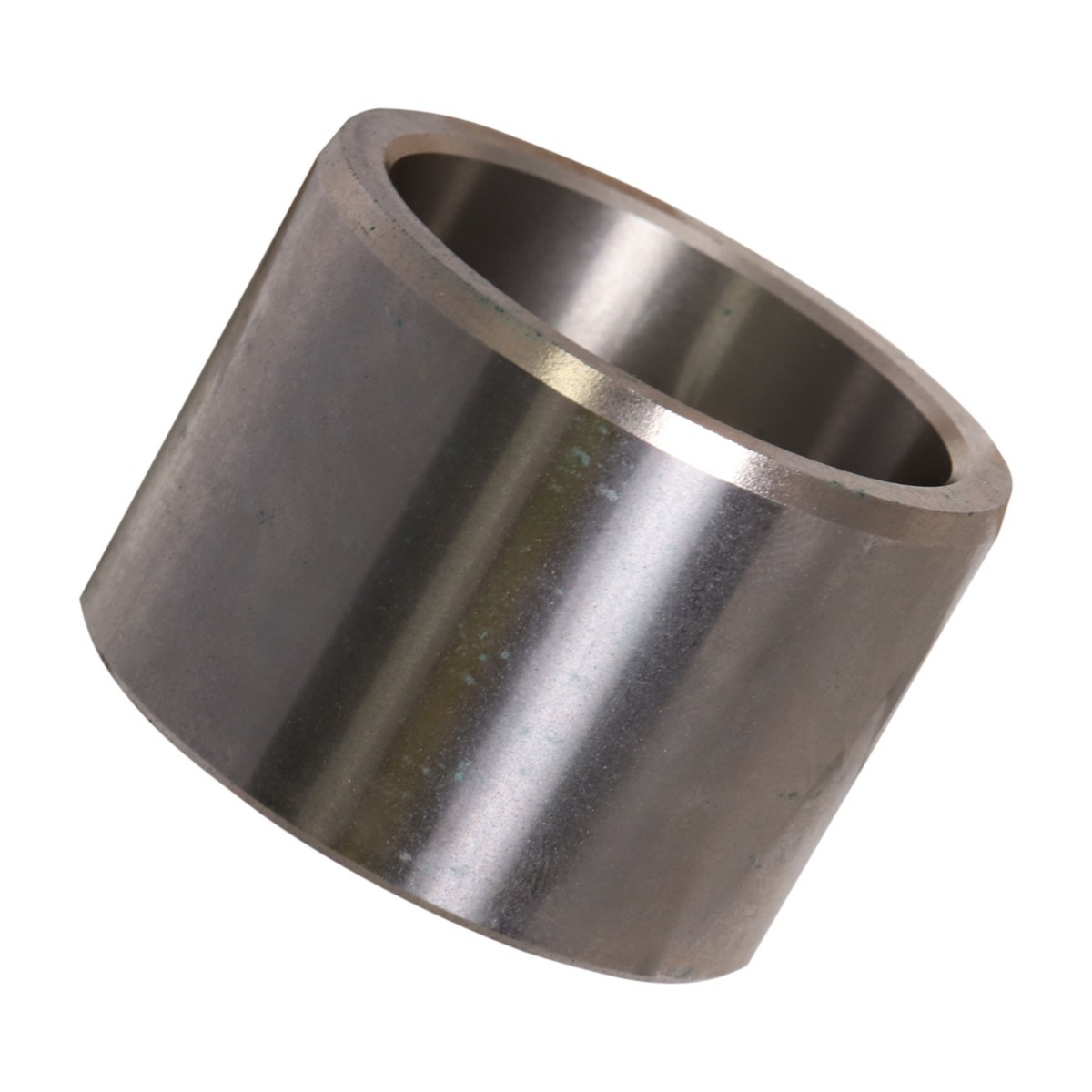

146-2971 Straight Sleeve Bearing
Cat® Straight Sleeve Bearing, OD X ID X Width: 55 X 45 X 40 mm
Description
Part number 146-2971 is a straight sleeve bearing used to support rotary, oscillating, and linear motion between machine systems.
Features
- Straight sleeve bearing
- Inside Diameter: 45 mm (1.77 in)
- Outside Diameter: 55 mm (2.17 in)
- Length: 40 mm (1.58 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Ferrule Inside Diameter | 45 mm (1.772 in) |
|---|---|
| Unique Features | No |
| Ferrule Outside Diameter | 55 mm (2.165 in) |
| Inside Diameter | 45 mm (1.77 in) |
| Outside Diameter | 55 mm (2.17 in) |
| Overall Length | 40 mm (1.58 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Mini Excavators: 305.5, 306
- Excavators: 305
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
