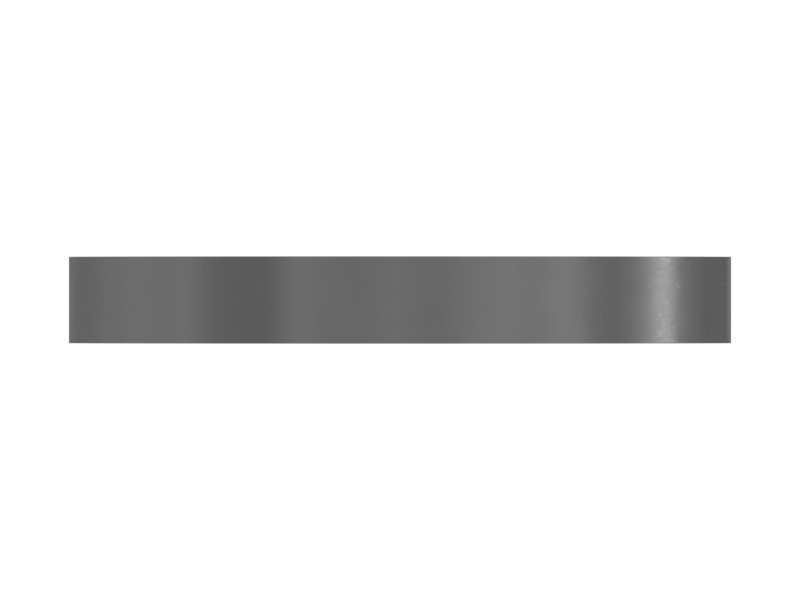

145-8460 Pump Rotating Piston Seal Ring
Cat® Ring
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Rectangular seals and seal rings are ring-shaped seals with a rectangular cross-section. Depending on the needs of the application, the edges may be rounded or not rounded.
Features
- Material: Steel
- Inside Diameter: 27.8 mm (1.094 in)
- Outside Diameter: 30.8 mm (1.212 in)
- Thickness: 4 mm (0.157 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Inside Diameter | 27.8 mm (1.094 in) |
| Cross-Section Width | 1.5 mm (0.059 in) |
| Cross-Section Height | 4 mm (0.157 in) |
Compatible Equipment
- Track Loaders: 963, 963D, 963K
- Excavators: 330C L, 330C, 637G, 637E, 6060, 6030
