Description

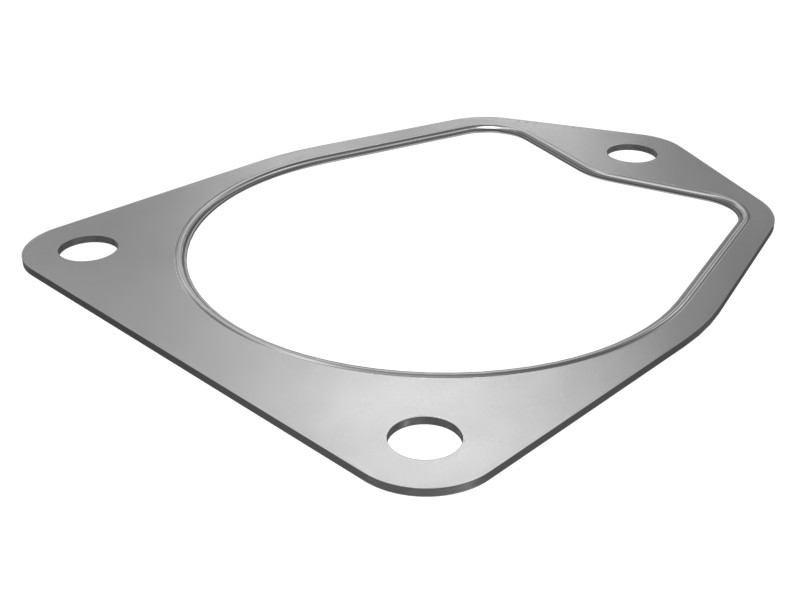

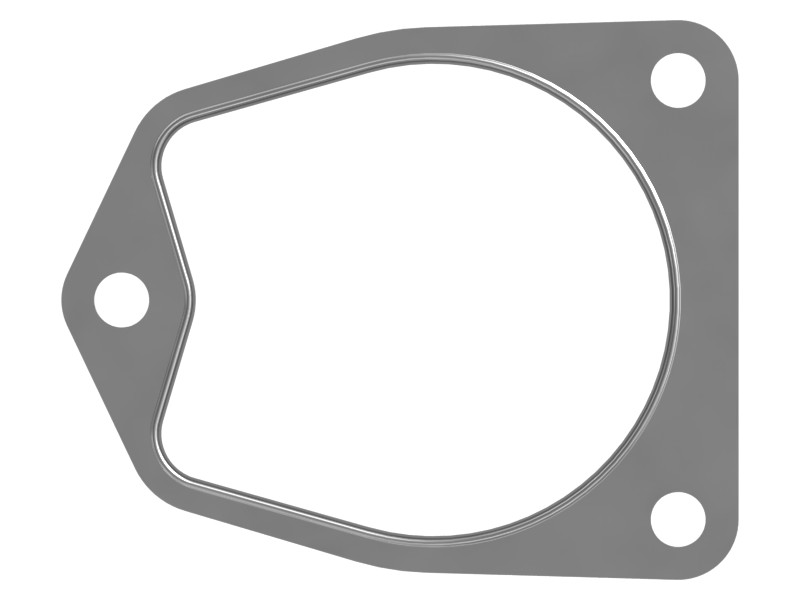

Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Temperature | -40 to 175 °C |
|---|---|
| Length | 6.7 in |
| Height | 0.1 in |
| Material | Carbon Steel |
| Overall Length | 169 mm |
| Overall Width | 140 mm |
| Material Thickness | 1.71 mm (0.067 in) |
| Primary Seal Material | FKM |
| Seal Shape | Irregular |
| Material Description | FKM rubber has a service temperature range of -40 to 150C and is resistant to air, fuel (including biodiesel), lubricants and engine oil. FKM rubber should not be used in applications requiring water or coolant resistance. |
Compatible Equipment
- Generator Sets: 3406C, 3406B, G3516C
- Track Loaders: 826K, 824C, 834H, 824G, 826H, 826G
- Compactors: 825K, 824K, 834K, C-15
- Engines: C32, C15, C27, C18
- Excavators: 3456, 374, 3101, 374F L, 385C, 345B, 395
- Wheel Excavators: MD6200
- Dozers: D8R, D8N, D9T
- Wheel Loaders: 980H, 988K, 980G, 986H, 988H, 988G, RM500B, 834, 836
- Off-Highway Trucks: 772G, 740, 777E, 740B, 770G, 777D, 735, 793F, 797F
Additional information
| Machine Model | 3101, 3406B, 3406C, 3456, 345B, 374, 374F L, 385C, 395, 735, 740, 740B, 770G, 772G, 777D, 777E, 793F, 797F, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, C-15, C15, C18, C27, C32, D8N, D8R, D9T, G3516C, MD6200, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
