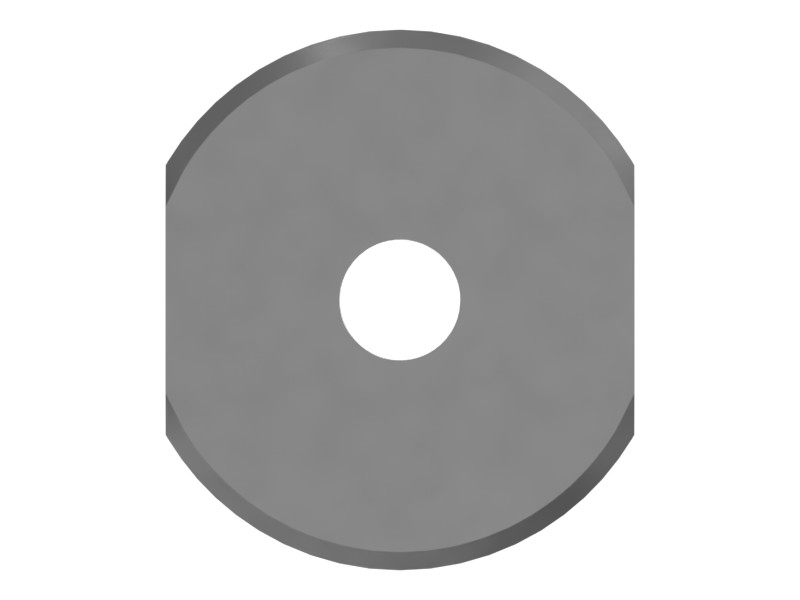

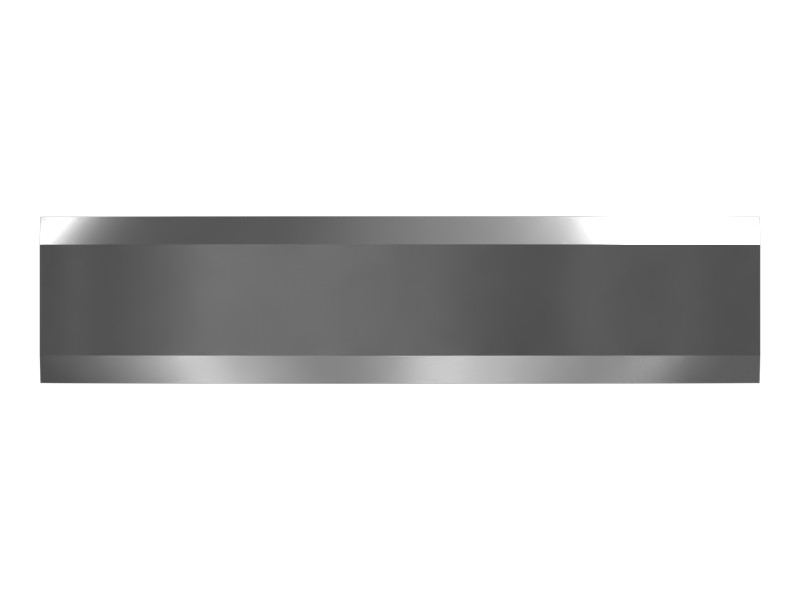

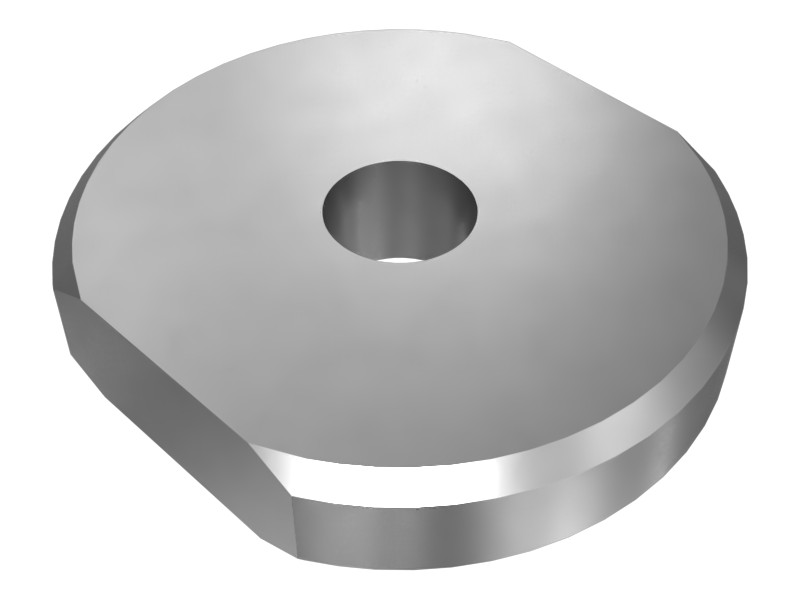

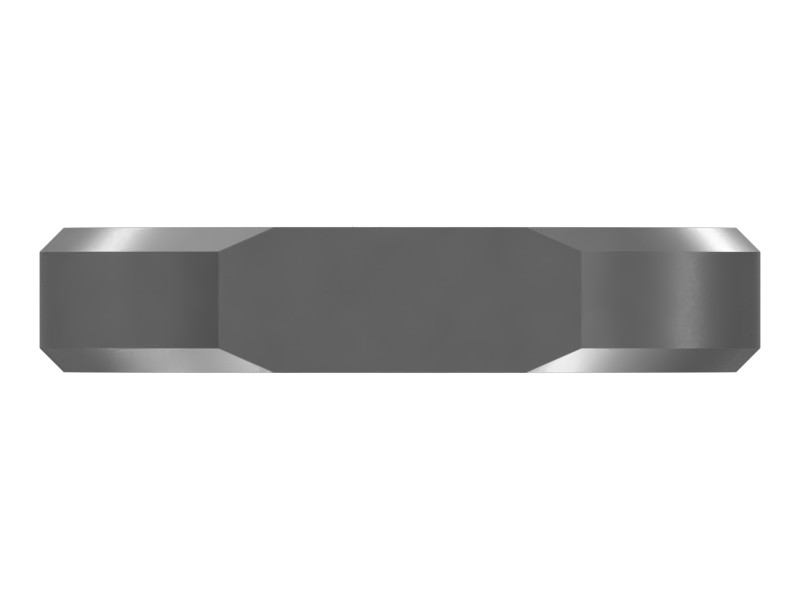

144-2321 6 mm Thick Limit Switch Support Plate
Cat® 6 mm Thick Travel Speed Limit Switch Steel Support Plate
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The limit switch support plate helps mount the travel speed limit switch assembly to the platform together with fasteners. The base is made of durable materials such as steel and has a hole that fits the shaft in the switch assembly. The mounting base provides a secure foundation for the protective sleeve and helps ensure long-term retention in place even in harsh weather conditions.
Attributes
- Provides high strength and wear resistance
- Withstands high vibration and forces generated during operation
Applications
The limit switch support plate is used to hold and secure the travel speed limit switch and its shaft in the cab console wiring, ensuring proper positioning and alignment of the switch.
Specifications
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
|---|---|
| Nut Model | Round (Spanner or Bearing) |
| Thickness | 6 mm (0.236 in) |
| Coating | Zinc |
| Drive Chain | 26 mm (1.024 in) |
| Thread Direction | RH |
| Thread Size | M8 mm (0 in) |
Compatible Equipment
- Mini Excavators: 301.5, 305.5, 306, 303.5
- Excavators: 301.8, 301.6, 303, 305, 306E
