Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Some mounting groups use a separately supplied loose inner sleeve. These sleeves usually wrap around the central bolt joint.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Applications

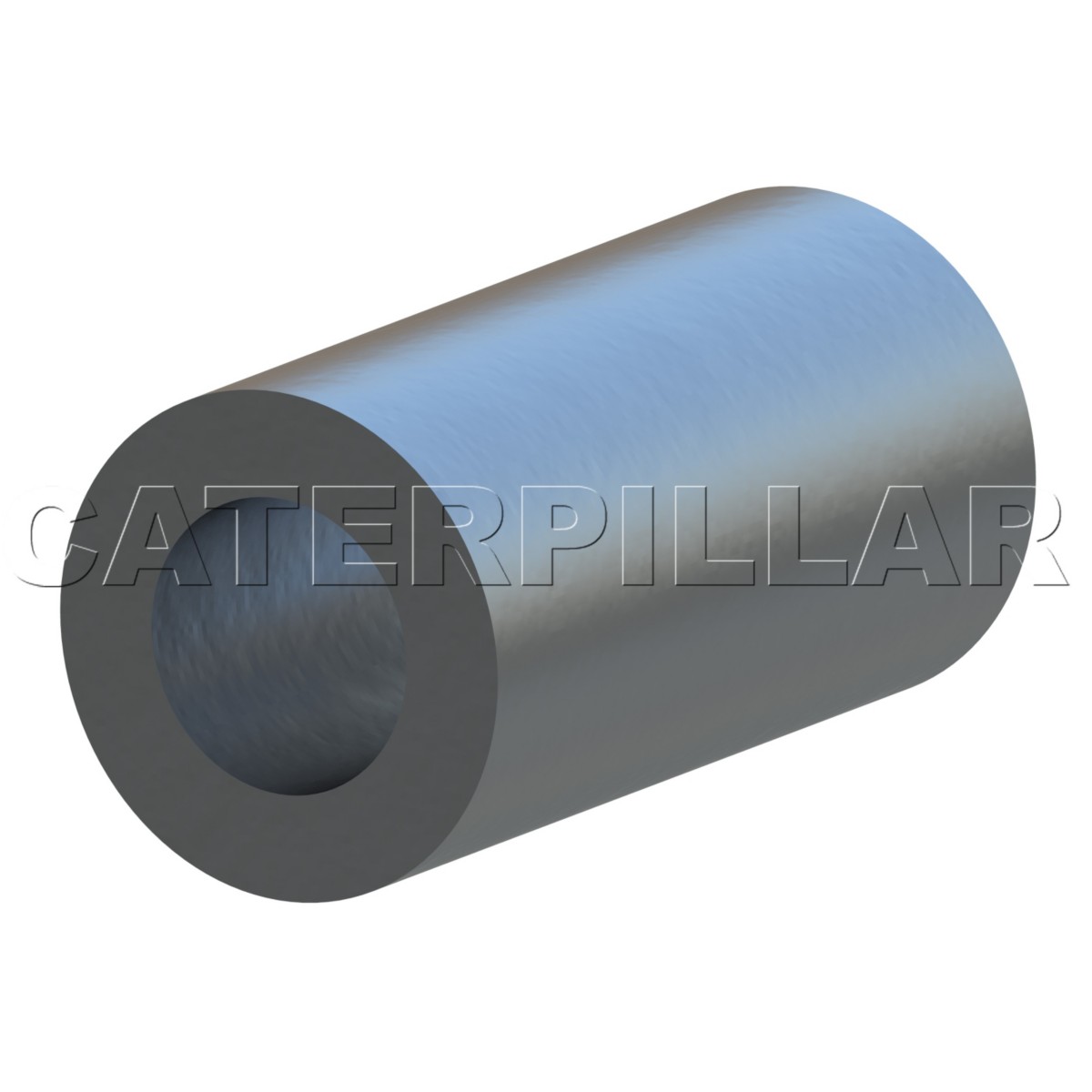

The sleeve is one of the components of many types of isolation mounts.
Specifications
| Sleeve Length | 91 mm (3.58 in) |
|---|---|
| Inside Diameter | 36 mm (1.42 in) |
| Mounting Type | Sleeve |
| Outside Diameter | 49 mm (1.93 in) |
| Gasket Type | Flat |
| Coating | Zinc |
| Thickness | 91 mm (3.583 in) |
Compatible Equipment
- Motor Graders: 14, 120
- Track Loaders: 973K, 953, 963, 953K, 953D, 963D, 963K
- Cold Planers: PL61
- Compactors: 815, 816, 814
- Dozers: D7R II, D8T, D6N, D6K2, D6R LGP, D8R, D6R XL, D4, D6R II, D8, D6R
- Off-Highway Trucks: 773, 770G, 775G, 772G
Additional information
| Machine Model | 120, 14, 770G, 772G, 773, 775G, 814, 815, 816, 953, 953D, 953K, 963, 963D, 963K, 973K, D4, D6K2, D6N, D6R, D6R II, D6R LGP, D6R XL, D7R II, D8, D8R, D8T, PL61 |
|---|---|
| Equipment Type | Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
