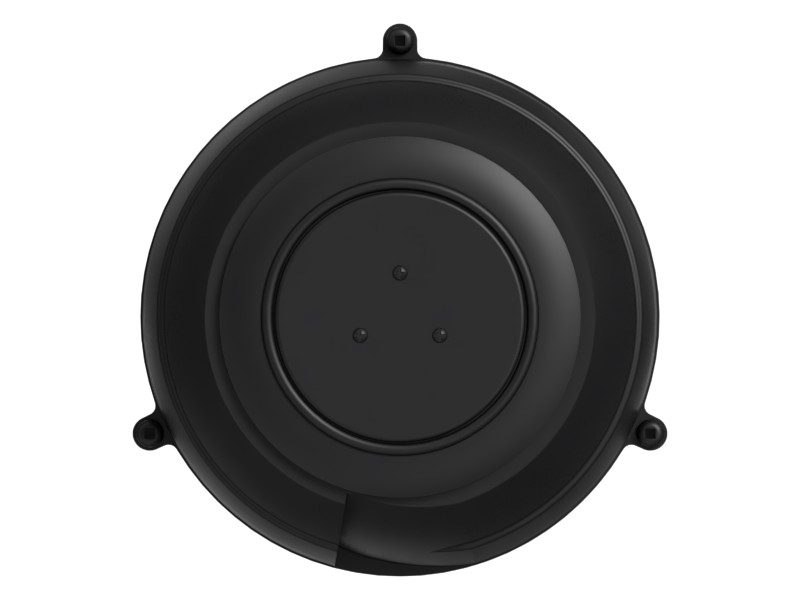

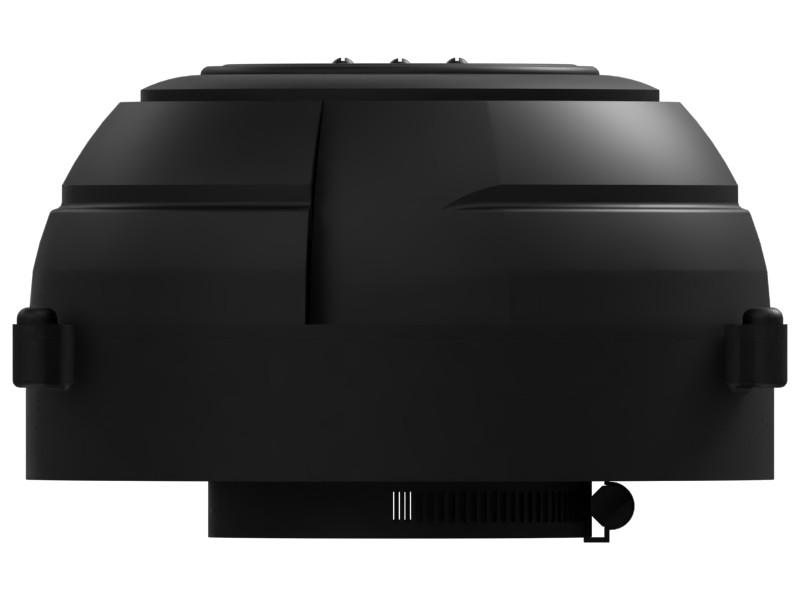

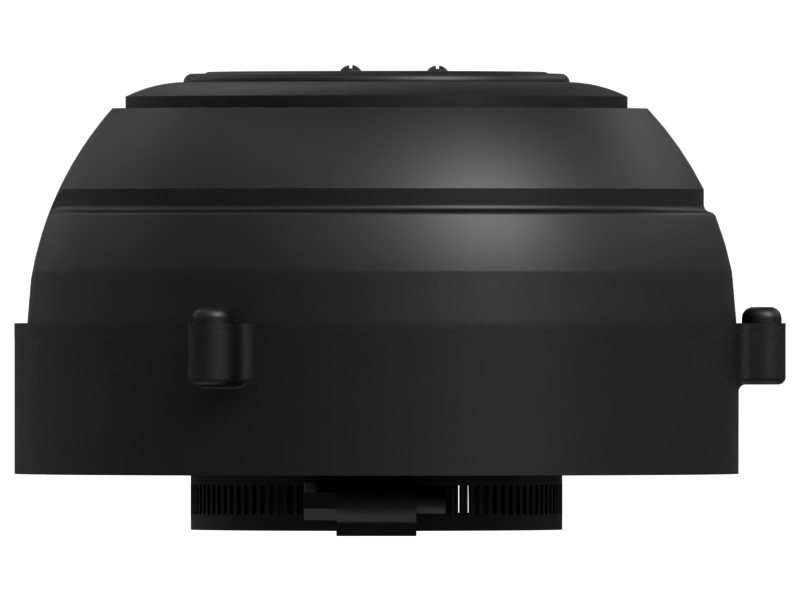

143-7753 Turbo Precleaner
Cat® Turbo Precleaner with Mounting Clamp, Flow Rate: 1.4-3.4 m3/min, Inlet Pipe Diameter: 77 mm
Description
Cat engine air precleaners prevent large and heavy contaminants from entering the intake duct, extending the life of the engine air filter. A durable nylon precleaner (for example, 143-7753) provides added engine protection and helps avoid equipment downtime, making it ideal for regular-load applications.
Features
- Molded nylon precleaner with clamp
- For use with 3 inch (77 mm) inlet pipe
- Flow Rate: 1.4-3.4 m3/min (50-120 SCFM)
- Overall Height: 105 mm (4.1 inches)
- Shield Diameter: 172 mm (6.8 inches)
- Insertion Depth: 25.1 mm (1.0 inches)
- Hood Clearance: 46 mm (1.8 inches)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outlet Size | 77 mm (3.031 in) |
|---|---|
| Outside Diameter | 172 (Shroud) mm (6.7 (Shroud) in) |
| Height | 180.9 mm (7.122 in) |
| Width | 175 mm (6.89 in) |
| Length | 110 mm (4.331 in) |
| Overall Width | 169.9 mm (6.689 in) |
| Overall Length | 108.8 mm (4.283 in) |
| Scavenge Required | No |
| Housing Material | Plastic |
| Overall Height | 105 mm (4.1 in) |
Compatible Equipment
- Dozers: D11R, D9R, D3G, D4G, D10R
