Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

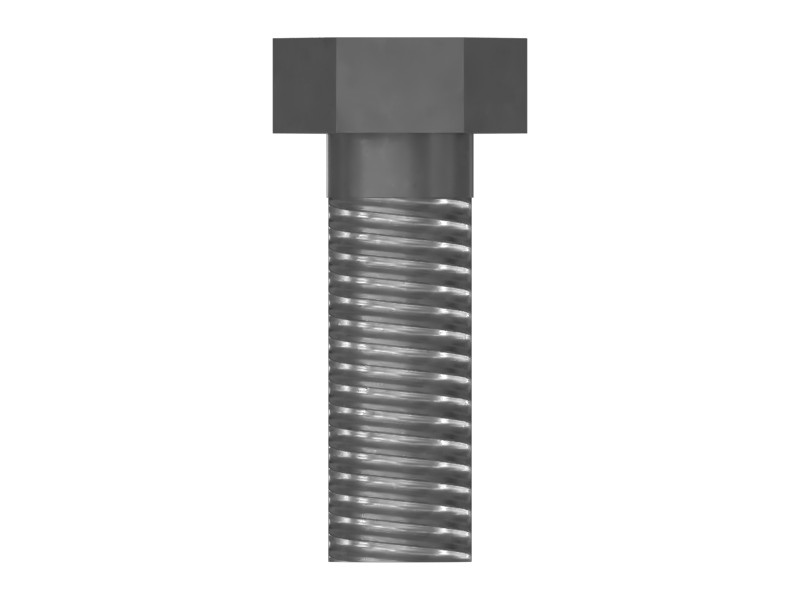

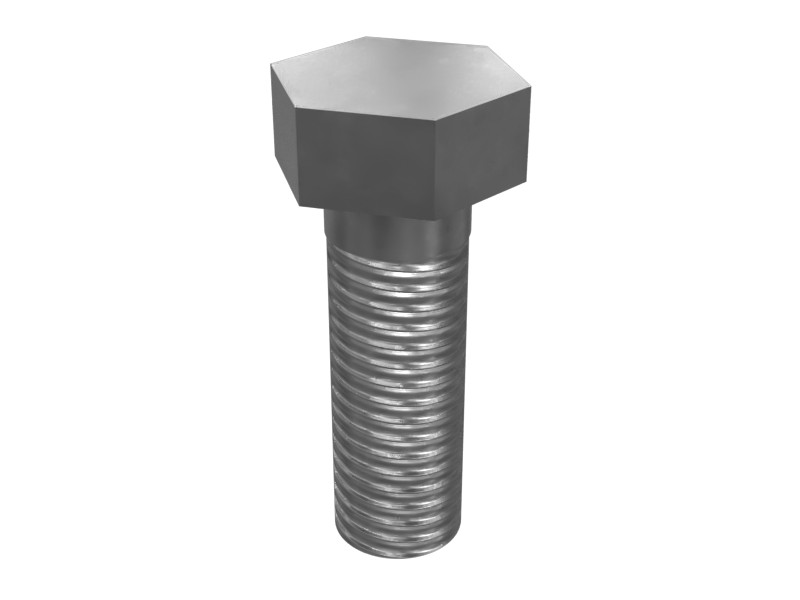

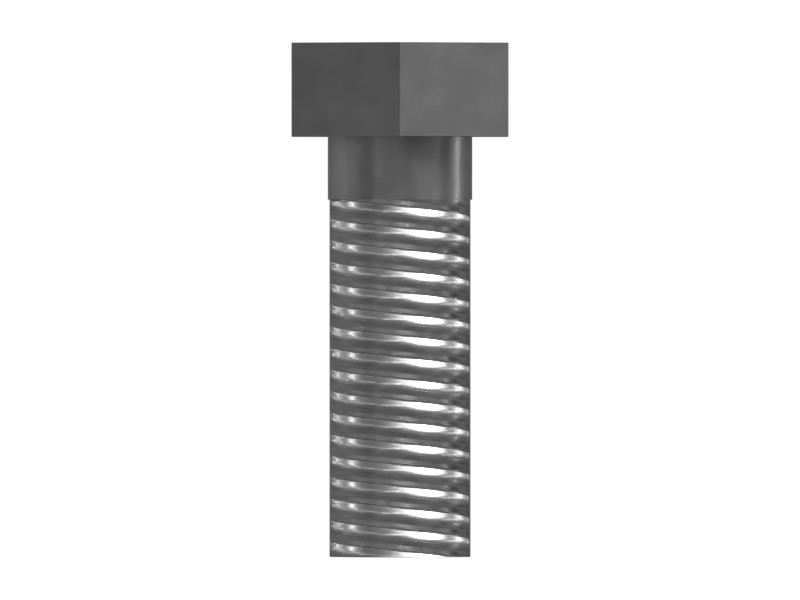

Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Hex Size | 18 mm |
| Pitch | 1.75 mm |
| Thread Size | M12 mm (0 in) |
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Bolt Length | 35 mm (1.38 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 5 mm (0.2 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E
- Track Loaders: 972, 990K, 994K, 995, 826K, 982
- Cold Planers: TH360B, TH55-E70, PL72
- Compactors: 825K, 824K, C9.3B
- Engines: C27, C32, C18, C175-16
- Excavators: 320D2, 320D, 336D, 336D2, 349D2 L, 349D2, 330D L, 349F L, 320, 336 GC, 350, 349, 3516E, 320D GC, 320D2 L, 120 GC, 3512C, 336, 3516B, 345 GC, 323D2 L, 320 GC, 349E, 349E L, 336D L, 336D2 L, 340, 637K, 336E L, 336F, 336F L, 320E, 320D L, 323D, 336E LH, 328D LCR, 336D2 XE, 336F L XE, 323, 336F LN, 336E, 336D2 GC, 320D2 GC, 323D L, 340D2 L, 352F, 352, 340D L, 349E L VG, 320D FM, 320D RR, 350MHPU, 621K, 323 GX, 320 GX, 335F LCR, 336E H, 323D2, 336E LN, 621H, 416F2
- Asphalt Pavers: AD45, AD63
- Skid Steer Loaders: 226D3, 232D3, 236D3, 24
- Motor Graders: 14, 18, 16, 16M3, 349 GC
- Wheel Excavators: M315D2, M320, M315, IT14G, M315D, M317D2, M320D2, M315GC
- Dozers: D6T LGP, D7, D8T, D6R XL, D6T, D8, D7E, D7R
- Wheel Loaders: R3000H, 980, M314, 966L, R1700 XE, R1700K, RM400, 966, R1700G, 980L, 966K, 972L, R2900 XE
- Off-Highway Trucks: 730, 793, 797F, 798 AC, 725, 7495, 796 AC, 789D, 777D, 777E, 785D, 770G, 793D, 785, 794 AC, 789, 793F, 735
