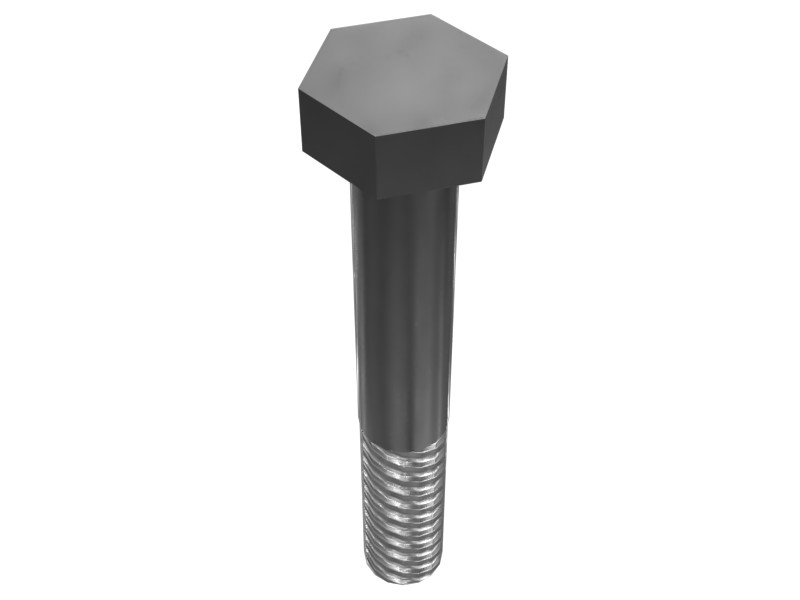

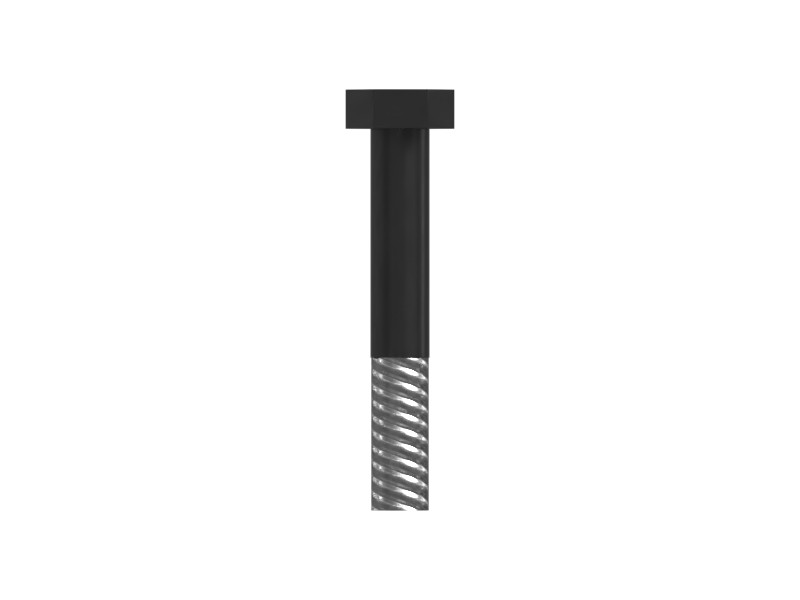

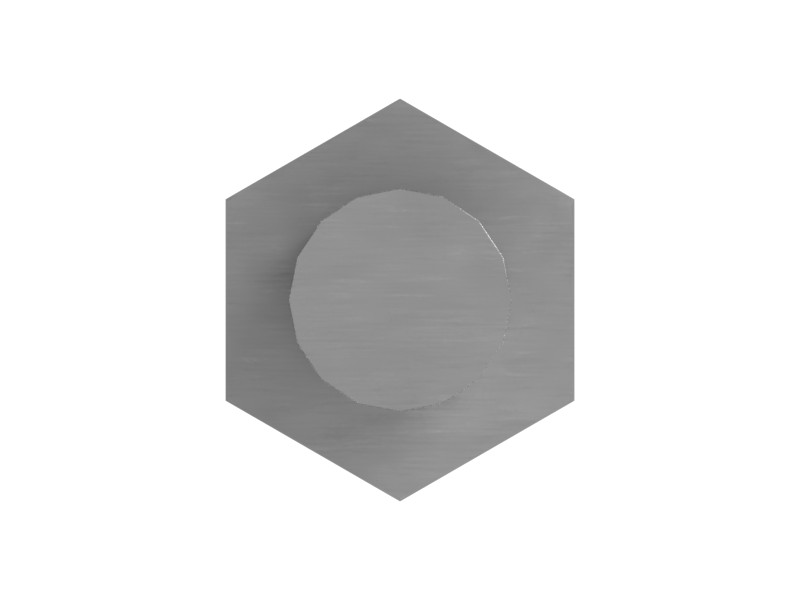

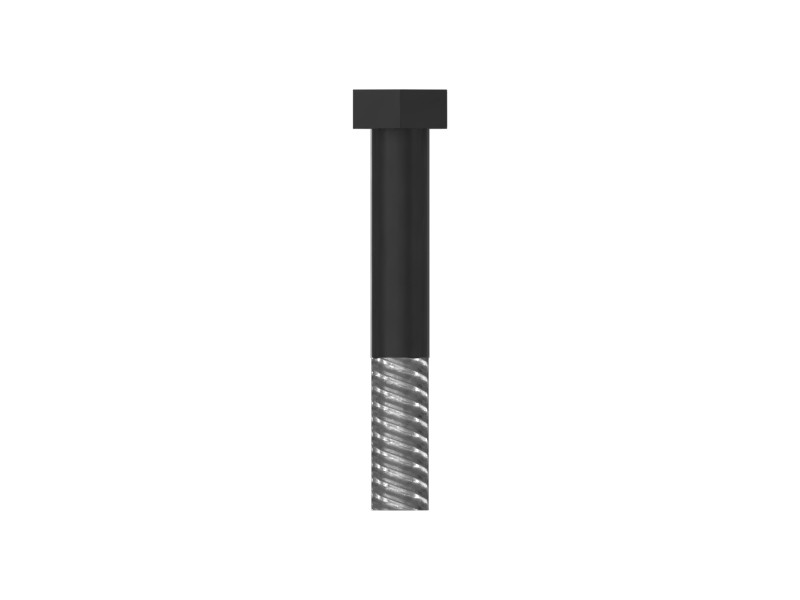

141-6348 M10 X 1.5 Hex Head Bolt
Cat® hex head bolts for hydraulic stick hose and cylinder hose lines securely fasten hydraulic hoses to the hydraulic stick for efficient fluid flow.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M10 mm (0 in) |
| Class or Grade | Cat/ISO Class 10.9 High Temp. (500 C) |
| Thread Direction | RH |
| Bolt Length | 65 mm (2.559 in) |
| Material | STEEL |
| Bolt Type | Hex Head Bolt |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Coating | Phosphate and Oil |
| Handle Length | 39 mm (1.535 in) |
Compatible Equipment
- Motor Graders: 120H
- Track Loaders: 816F
- Wheel Excavators: M320
- Compactors: CS-533C, CS-583D
- Engines: C7
- Dozers: D5M, D6M
- Excavators: 374, 365B L, 395, 6060, 320B, 325B L, 385B, 390F, 385C L, 365C, 365B, 385C, 374F L, 6020B, 365C L, 6040, 3126, 390F L, 374F
- Wheel Loaders: 966 GC
- Off-Highway Trucks: 730, 740, 735, 725C2, 745C, 725, 745, 740 GC, 797F
Additional information
| Machine Model | 120H, 3126, 320B, 325B L, 365B, 365B L, 365C, 365C L, 374, 374F, 374F L, 385B, 385C, 385C L, 390F, 390F L, 395, 6020B, 6040, 6060, 725, 725C2, 730, 735, 740, 740 GC, 745, 745C, 797F, 816F, 966 GC, C7, CS-533C, CS-583D, D5M, D6M, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines |
| Part Source | Genuine OEM |
