Description
Cat steering components must withstand extremely high torque, high shock loads, and frequent direction changes. Cat designs and manufactures its steering components to meet these requirements. The Cat sleeve group allows for position variation between the tie rod and the steering arm to improve the maneuverability of wheeled Cat machines.
Features

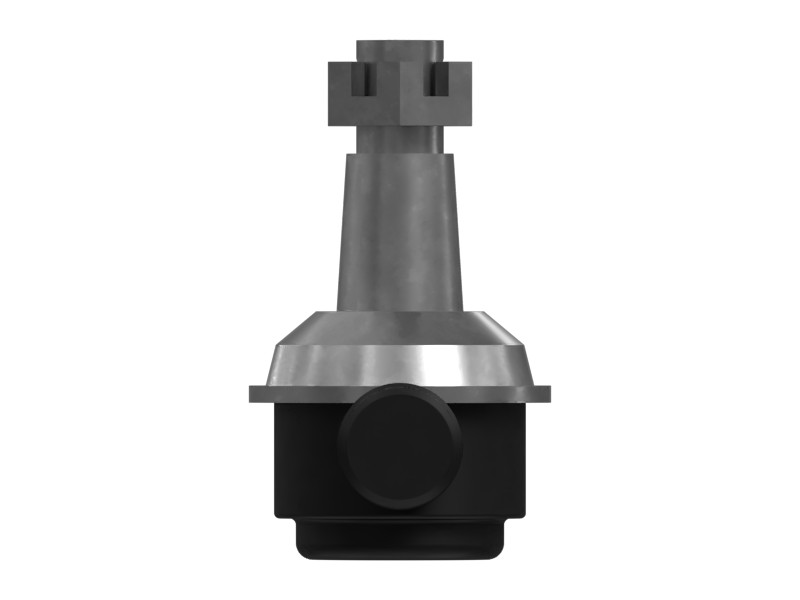

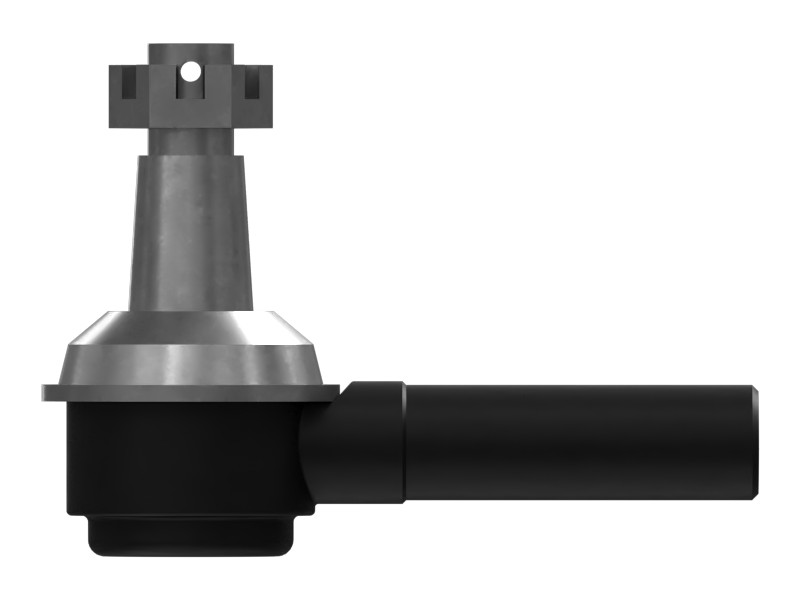

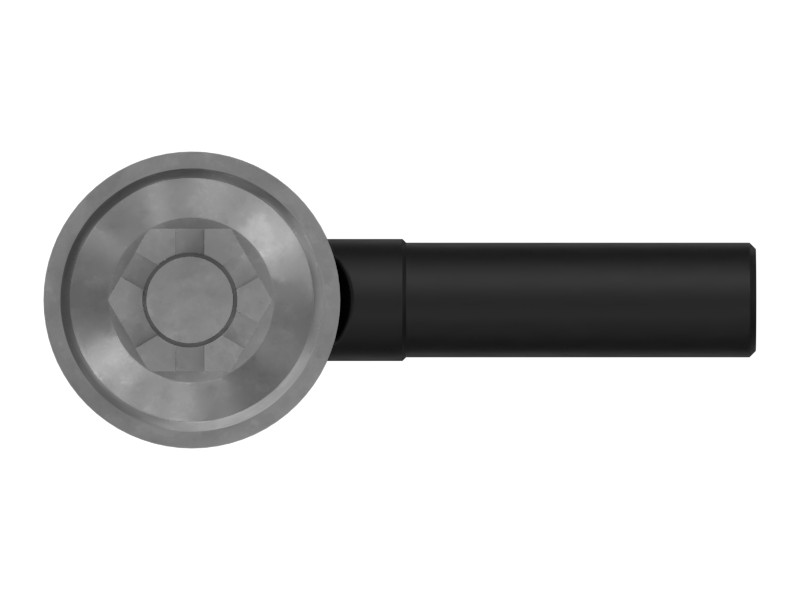

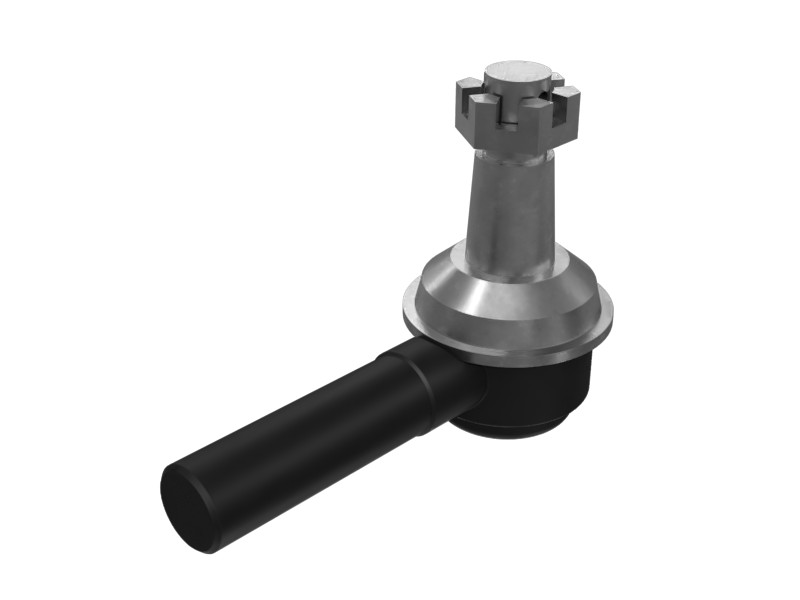

- Right tie rod end
- End 1 Thread Size: 1-1/8-12 (Nut)
- End 2 Thread Size: 1-1/4-12 (Link)
- Overall Length: 208.8 mm (8.22 in)
Applications
Cat sleeve assemblies are used in the vehicle steering systems of Cat heavy duty machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 208.8 mm (8.22 in) |
| Overall Height | 154.7 mm (6.09 in) |
| External Thread Size | 1-1/4-12 RH in |
Compatible Equipment
- Motor Graders: 16H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
