Description

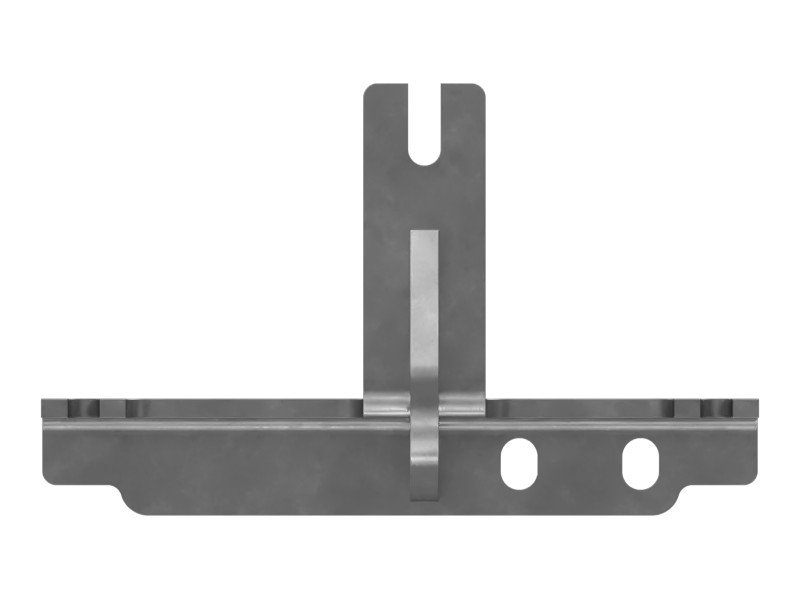

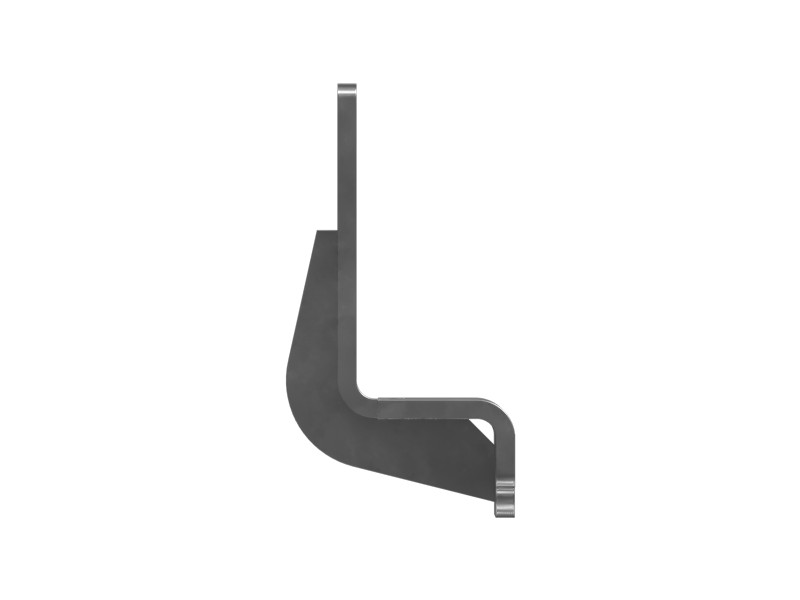

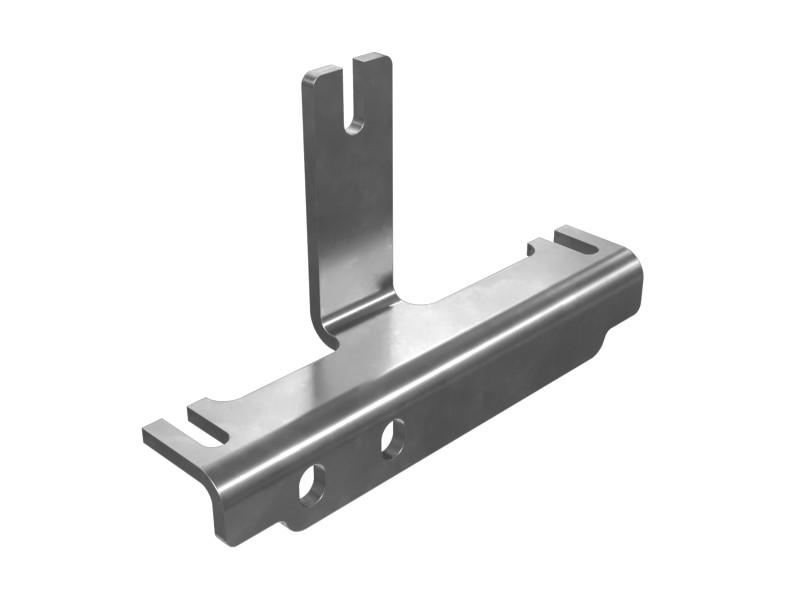

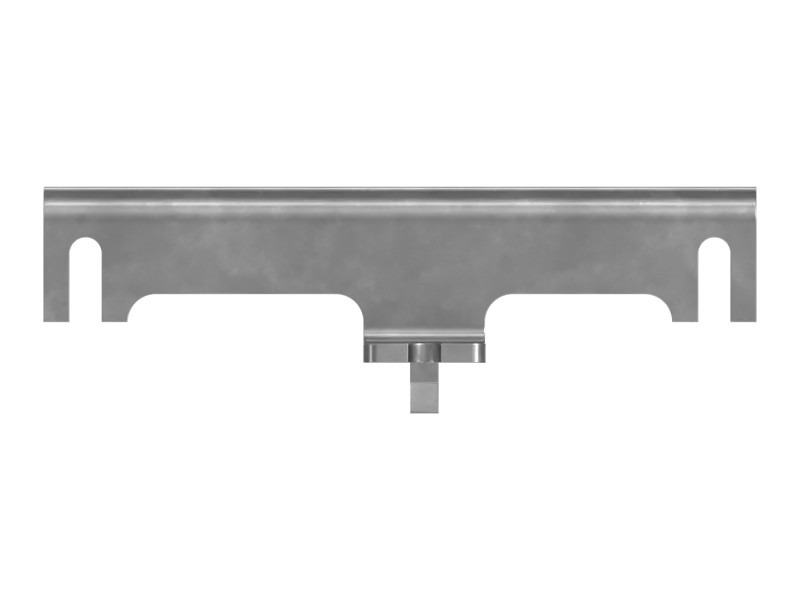

The injection nozzle line bracket helps connect the hoses or lines of the fuel injection components. A bracket is a component used to provide additional support and added stability to a mechanical structure or system. It is designed to hold components firmly in place and is bolted to the components, helping ensure safe and efficient operation. Various shapes, positions, and alignments are available depending on the application.
Features
- Distributes loads and reduces stress concentration, improving overall structural strength.
- Withstands any vibration or movement that may occur during operation.
- Heat resistant, resists deformation at high temperatures.
Applications
The injection nozzle line bracket is used to secure hoses in the fuel injection components of the engine arrangement assembly.
Specifications
| Material | Steel |
|---|---|
| Height | 92.2 mm (3.62 in) |
| Overall Height | 29 mm (1.14 in) |
| Length | 153 mm (6.02 in) |
| Overall Length | 153 mm (6.02 in) |
| Width | 42 mm (1.65 in) |
| Overall Thickness | 4 mm (0.16 in) |
| Overall Width | 92.2 mm (3.63 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Track Loaders: 824G, 826G
- Dozers: D8N, D8R
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
