Description

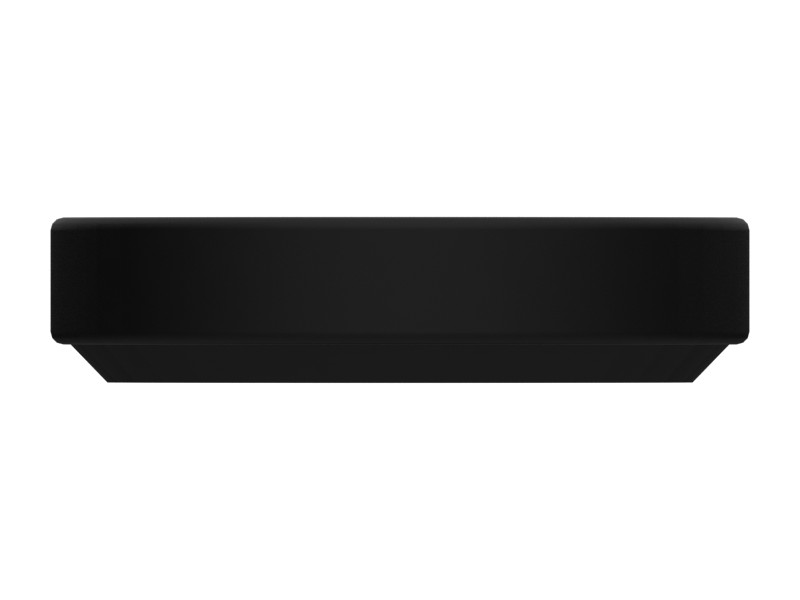

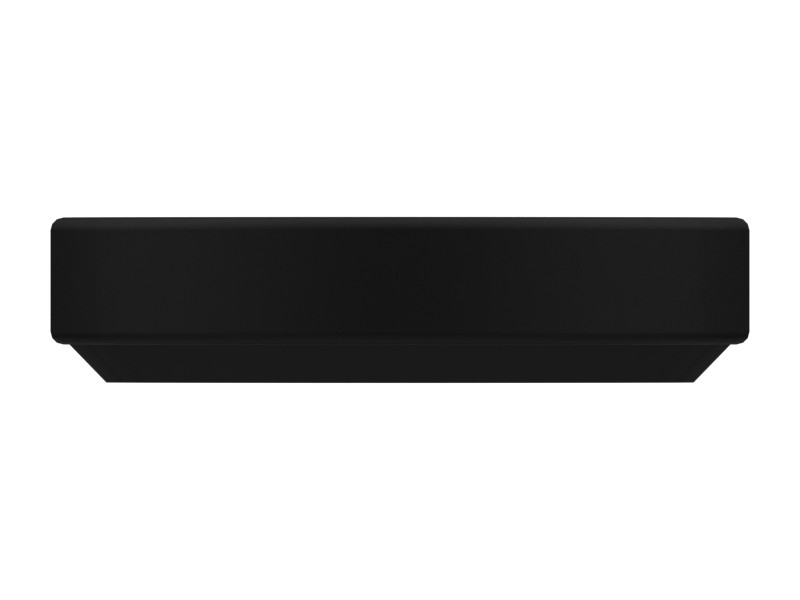

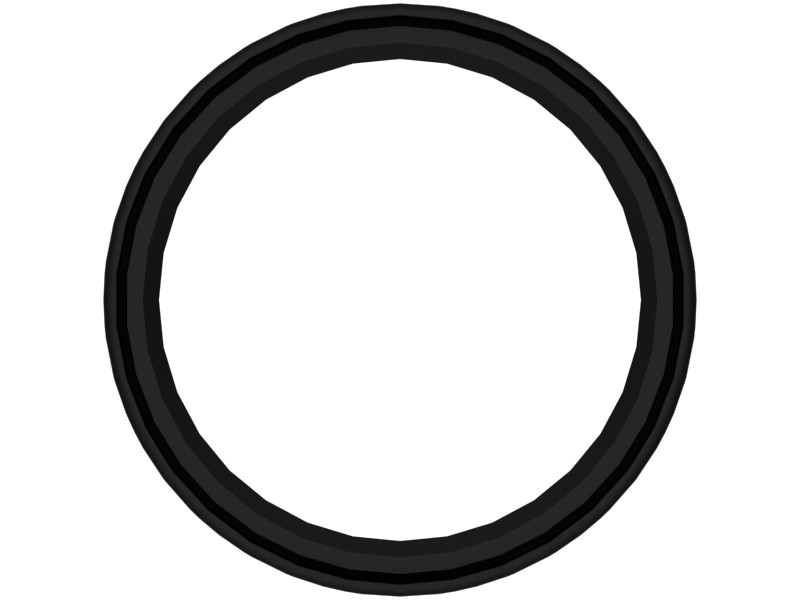

Prevents external contaminants from entering the system. A single-lip wiper (the lip refers to the protruding portion or edge of the seal) cleans the rod as it retracts. A double-lip wiper cleans the rod as it retracts and seals oil to eliminate oil leakage (external leakage). The double-lip wiper is retained with a bearing retainer. These polyurethane wipers are wrapped in metal on the outside for added strength. They are often referred to as encased wipers (metal-encased) or J-style wipers (the metal is typically J-shaped in cross-section).
Features
- Seal Material: Polyurethane (TPU)
- Groove Axial Width: 10 mm (0.39 in)
- Groove Diameter: 54.97 mm (2.164 in)
- Rod Diameter: 44.95 mm (1.770 in)
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 55.2 mm (2.17 in) |
|---|---|
| Inside Diameter | 43.8 mm (1.72 in) |
| Cross-Section Width | 10 mm (0.39 in) |
| Material Description | Polyurethane (Seal) |
| Material | Urethane Rubber |
Compatible Equipment
- Cold Planers: TH360B
- Off-Highway Trucks: 730
- Skid Steer Loaders: 259D3, 246C, 262D, 232D3, 279C, 262C, 232D, 249D3, 262D3, 242D3, 289D3
